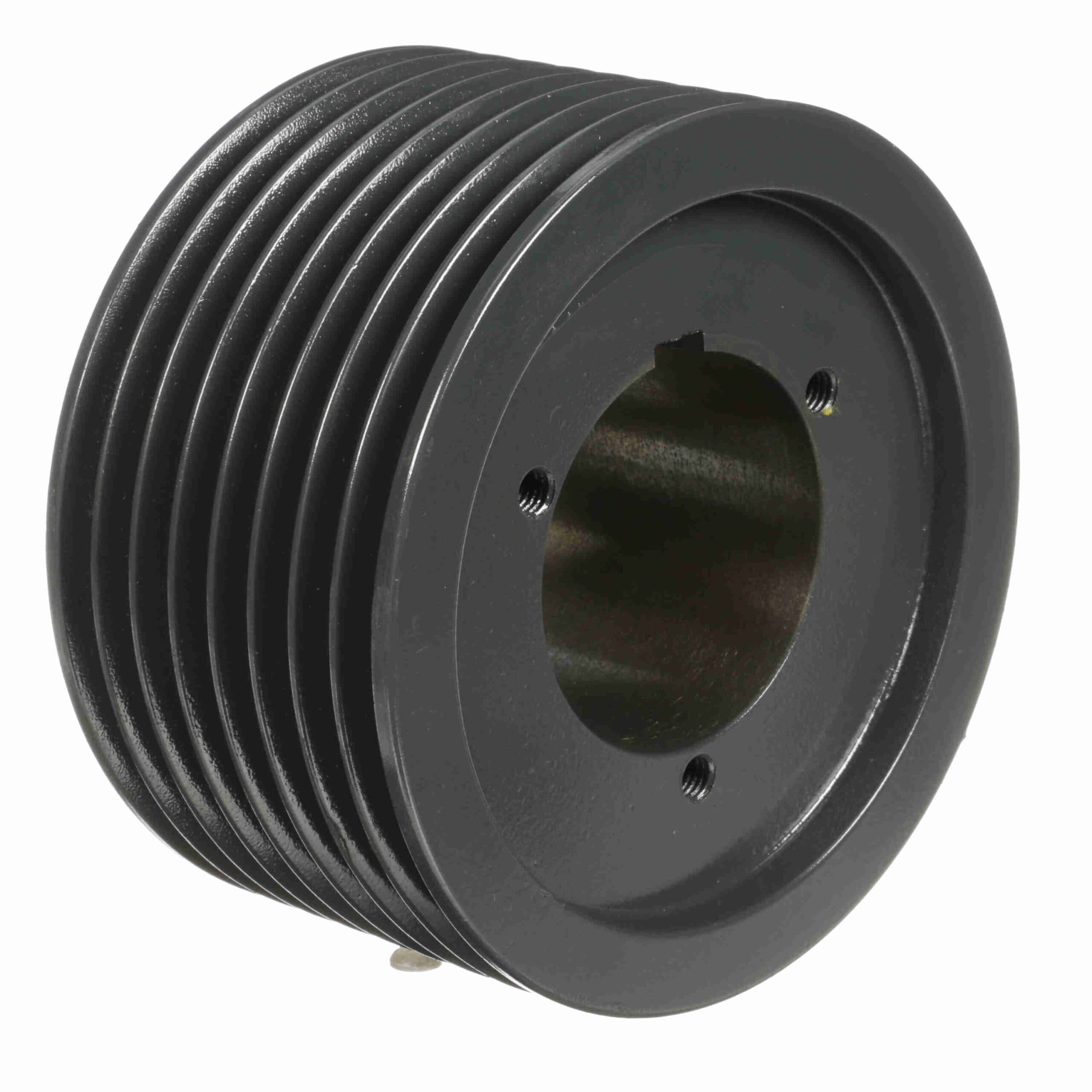

Browning 8 Groove Cast Iron Bushed Bore Multiple Sheave - 8R3V80
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1060789 |
| Product Name | 8R3V80 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 22.99 lb |
| Package Length | 9.1 in |
| Package Width | 9.1 in |
| Package Height | 3.7 in |
| Pitch Diameter (3V) | 7.95 |
| Outside Diameter (in) | 8 in |
| Pulley Material | Cast Iron |
| Overall Length (in) | 3.9375 in |
| Bushing Used |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| R1 |
| Number of Grooves | 8 |
| Product Type | Multiple Sheaves |
| Bore (Min) (in) | 1.125 in |
| Belt Section | 3V |
| Bore Type | Split Taper Bushed |
| Keyway Size | 0.750 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103046 |
| Part NumberiManufacturer catalog number | 1060789 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
