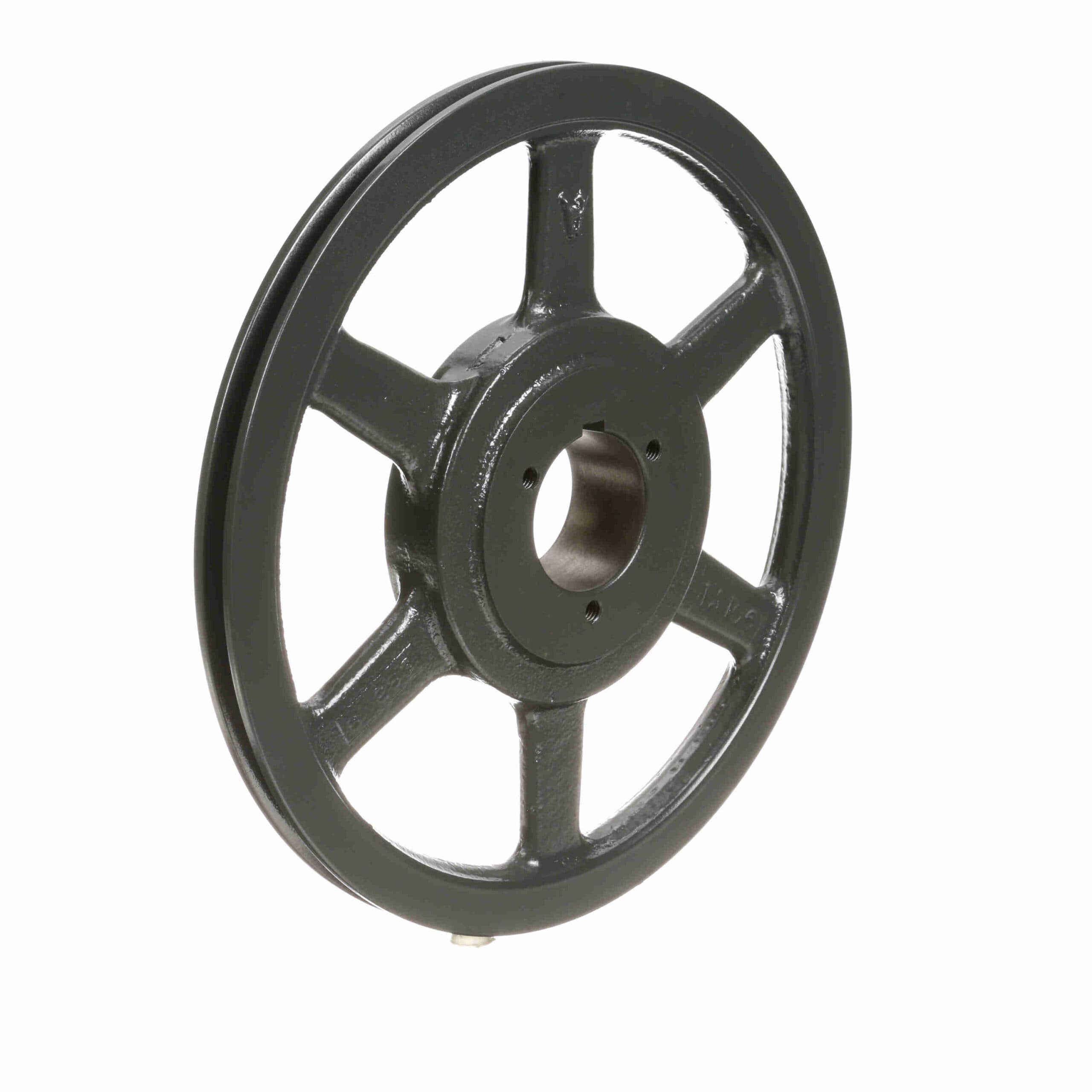

Browning 1 Groove Cast Iron Bushed Bore Multiple Sheave - 1P3V106
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1060805 |
| Product Name | 1P3V106 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 9.52 lb |
| Package Length | 11.6 in |
| Package Width | 11.6 in |
| Package Height | 2.2 in |
| Pitch Diameter (3V) | 10.55 |
| Bushing Used | P1 |
| Pulley Material | Cast Iron |
| Number of Grooves | 1 |
| Overall Length (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 2.140625 in |
| Outside Diameter (in) | 10.6 in |
| Belt Section | 3V |
| Bore (Min) (in) | 0.5 in |
| Product Type | Multiple Sheaves |
| Bore Type | Split Taper Bushed |
| Bushing Bore Range | 0.500 - 1.750 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103047 |
| Part NumberiManufacturer catalog number | 1060805 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
