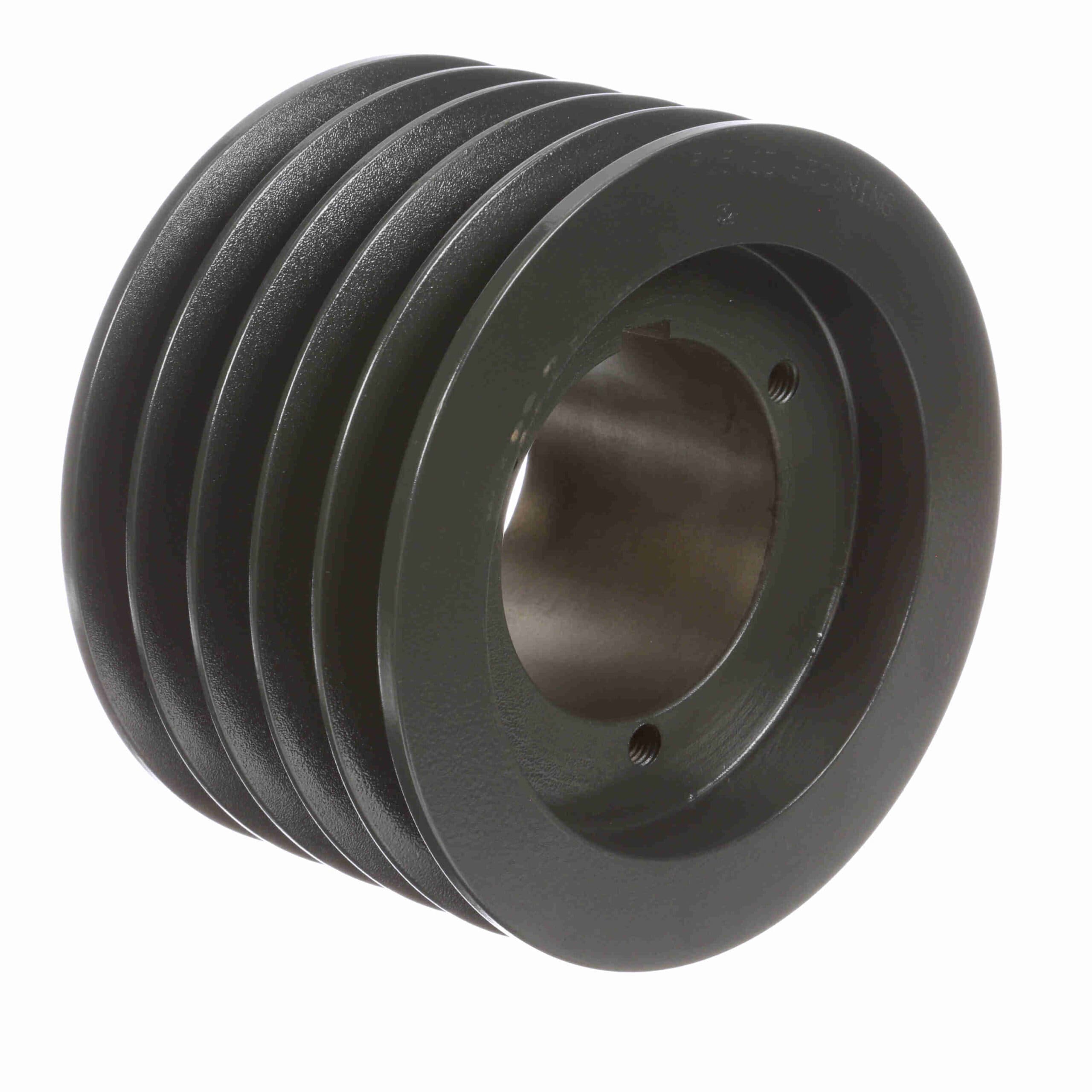

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave - 5Q5V63
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1061449 |
| Product Name | 5Q5V63 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 16.56 lb |
| Package Length | 6.63 in |
| Package Width | 6.63 in |
| Package Height | 4 in |
| Bushing Used | Q2 |
| Outside Diameter (in) | 6.3 in |
| Overall Length (in) | 4.078125 in |
| Number of Grooves | 5 |
| Pulley Material |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Cast Iron |
| Pitch Diameter (5V) | 6.2 |
| Belt Section | 5V |
| Bore (Min) (in) | 1 in |
| Product Type | Multiple Sheaves |
| Bore Type | Split Taper Bushed |
| Bushing Bore Range | 1.000 - 2.625 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103095 |
| Part NumberiManufacturer catalog number | 1061449 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
