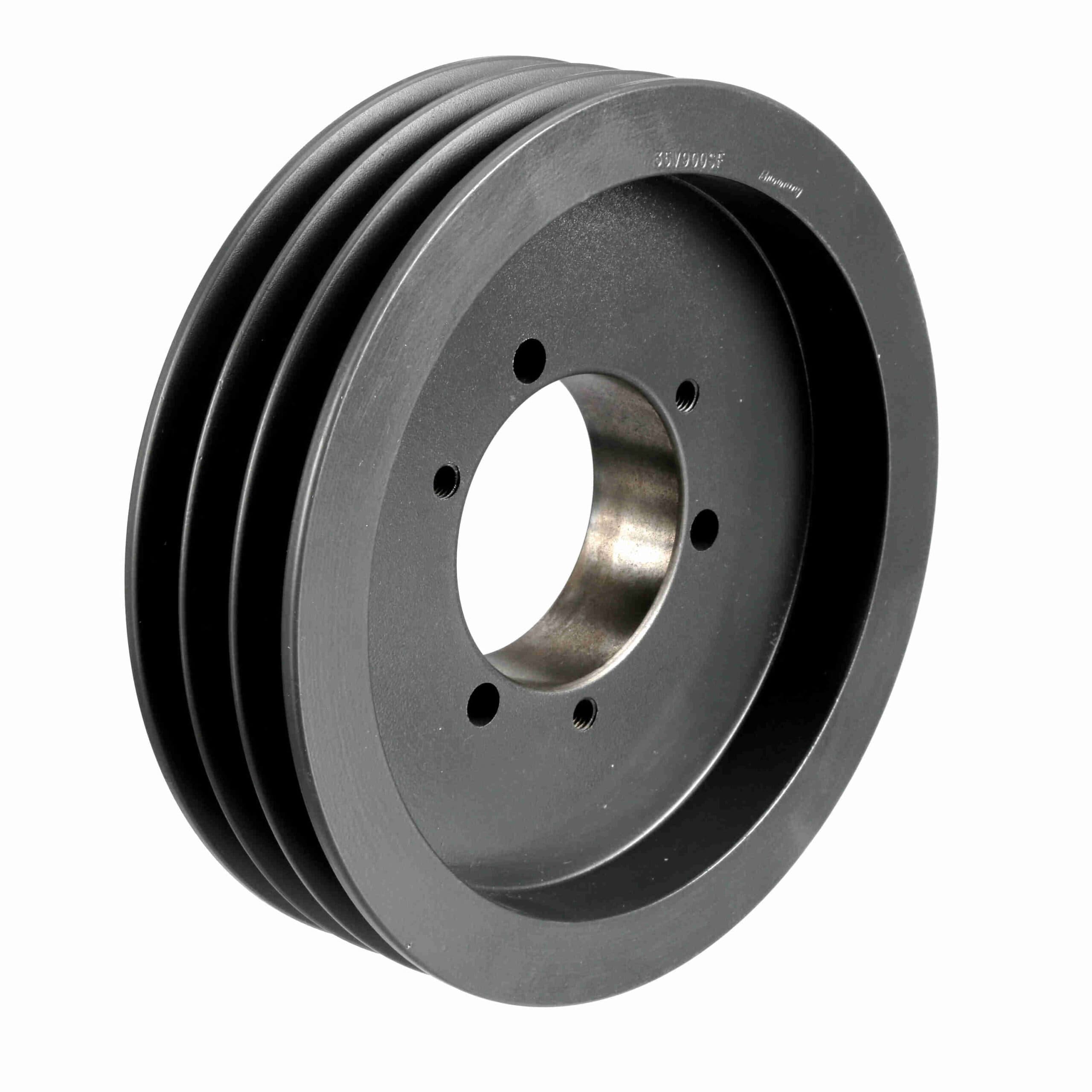

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave - 33V3350SF
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1064856 |
| Product Name | 33V3350SF |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 78 lb |
| Package Length | 33.5 in |
| Package Width | 33.5 in |
| Package Height | 2.06 in |
| Outside Diameter (in) | 33.5 in |
| Number of Grooves | 3 |
| Pitch Diameter (3V) | 33.45 |
| Bushing Used | SF |
| Pulley Material |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Cast Iron |
| Bore (Min) (in) | 0.5 in |
| Product Type | Multiple Sheaves |
| Belt Section | 3V |
| Bore Type | QD Bushed |
| Bushing Bore Range | 0.500 - 2.938 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103293 |
| Part NumberiManufacturer catalog number | 1064856 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
