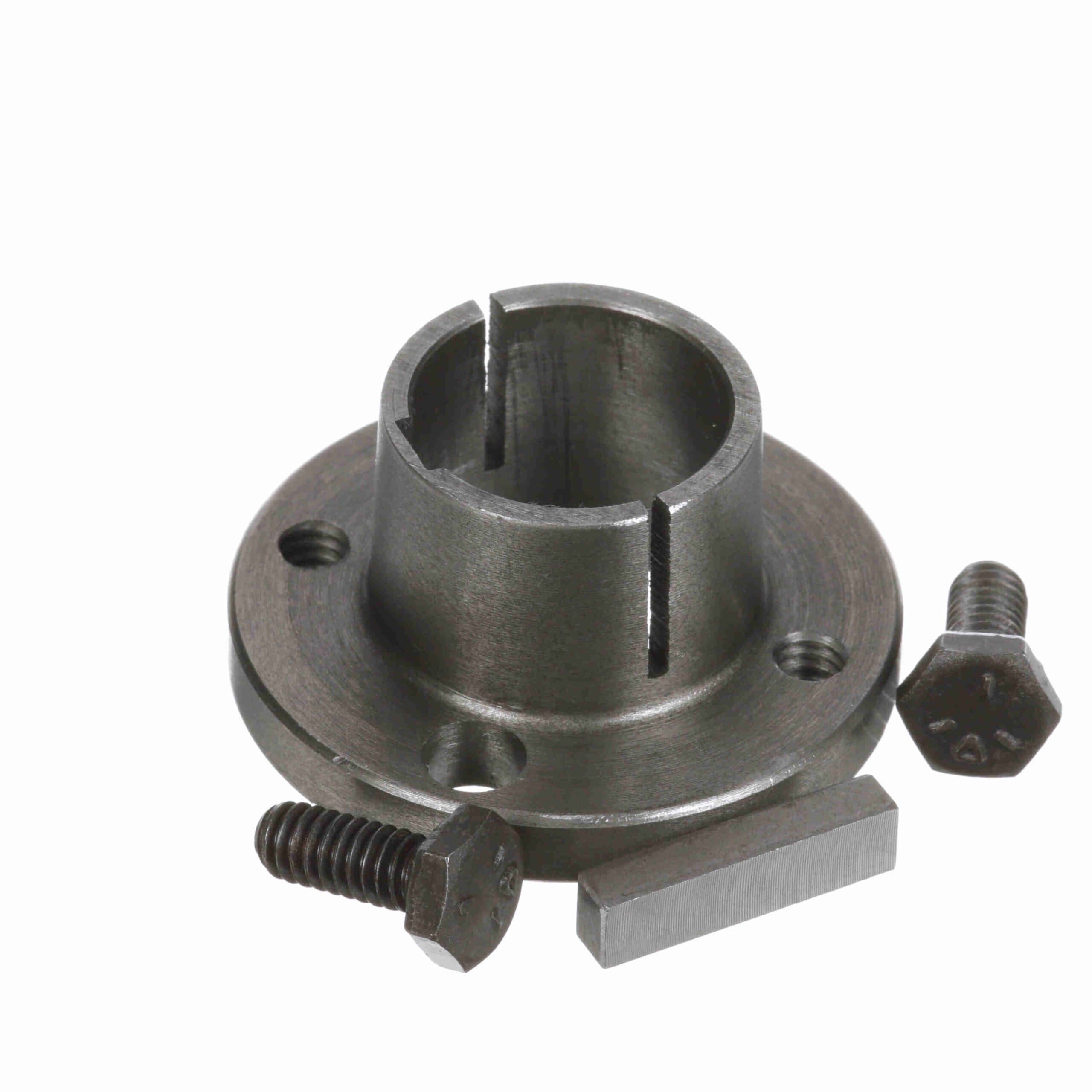

Browning Split Taper Bushing - Inch Bore Type - G 15/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1069160 |
| Product Name | G 15/16 |
| Brand | Browning |
| Material | Sintered Steel or Ductile Iron |
| Weight | 0.29 lb |
| Package Length | 2.7 in |
| Package Width | 2.7 in |
| Package Height | 1.4 in |
| Length Through Bore (in) | 1 in |
| Total Length (in) | 1 in |
| Product Type | Split Taper Bushing |
| Keyseat | 1/4 x 1/8 |
| Outside Diameter (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 2 in |
| Cap Screws (Size) | 1/4 x 5/8 |
| Bushing Type | G |
| Compatible Bore Size [Max] (in) | 0.9375 in |
| Wrench Torque (in-lb) | 95 |
| Bore Size (in) | 0.9375 in |
| Bore Type | Inch |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103455 |
| Part NumberiManufacturer catalog number | 1069160 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
