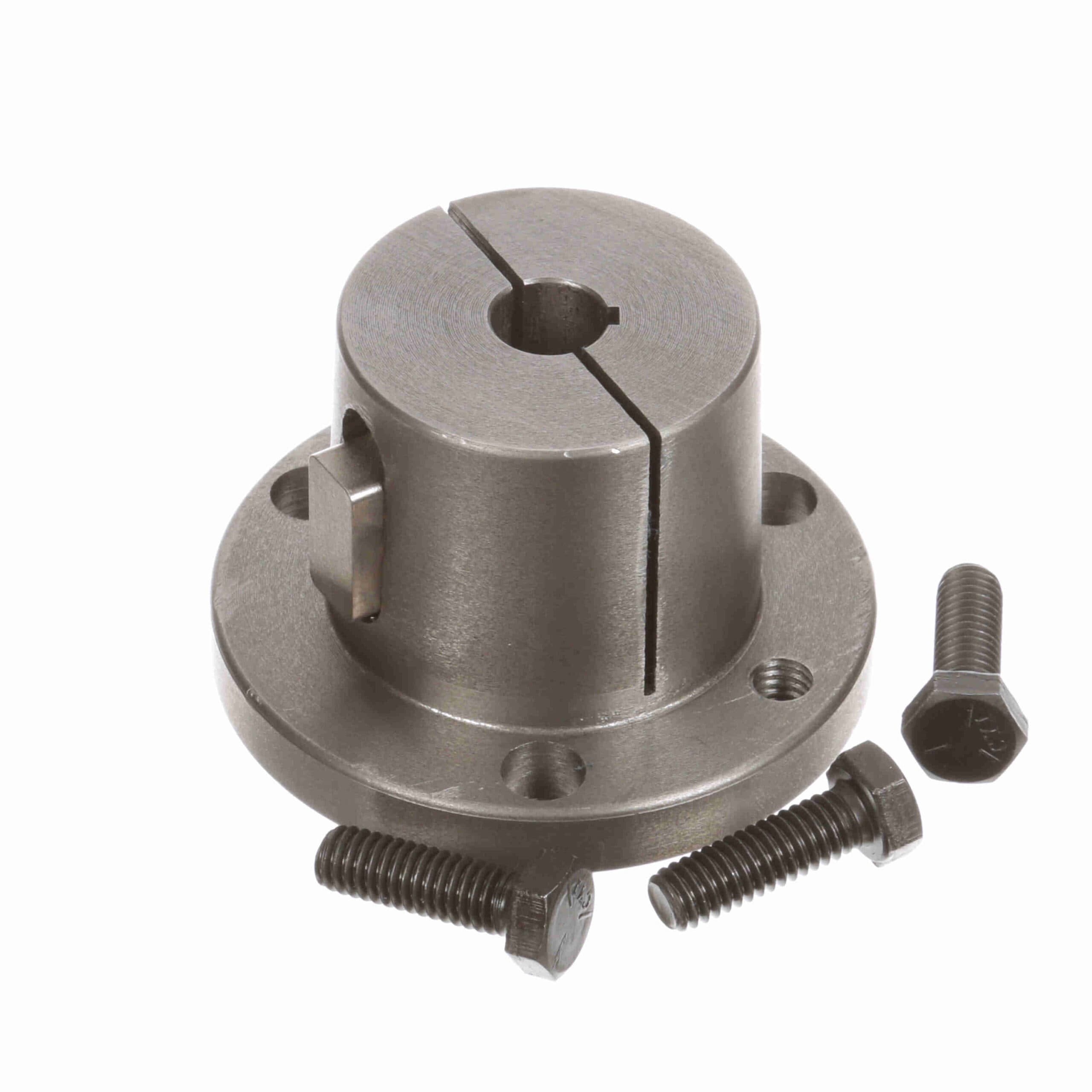

Browning Split Taper Bushing - Inch Bore Type - P1 1/2
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1069293 |
| Product Name | P1 1/2 |
| Brand | Browning |
| Material | Sintered Steel or Ductile Iron |
| Weight | 1.76 lb |
| Package Length | 3.1 in |
| Package Width | 3 in |
| Package Height | 2.1 in |
| Wrench Torque (in-lb) | 192 |
| Length Through Bore (in) | 1.9375 in |
| Keyseat | 1/8 x 1/16 |
| Bushing Type | P1 |
| Product Type |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Split Taper Bushing |
| Cap Screws (Size) | 5/16 x 1 |
| Total Length (in) | 1.9375 in |
| Compatible Bore Size [Max] (in) | 0.5 in |
| Outside Diameter (in) | 3 in |
| Bore Size (in) | 0.5 in |
| Bore Type | Inch |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103468 |
| Part NumberiManufacturer catalog number | 1069293 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
