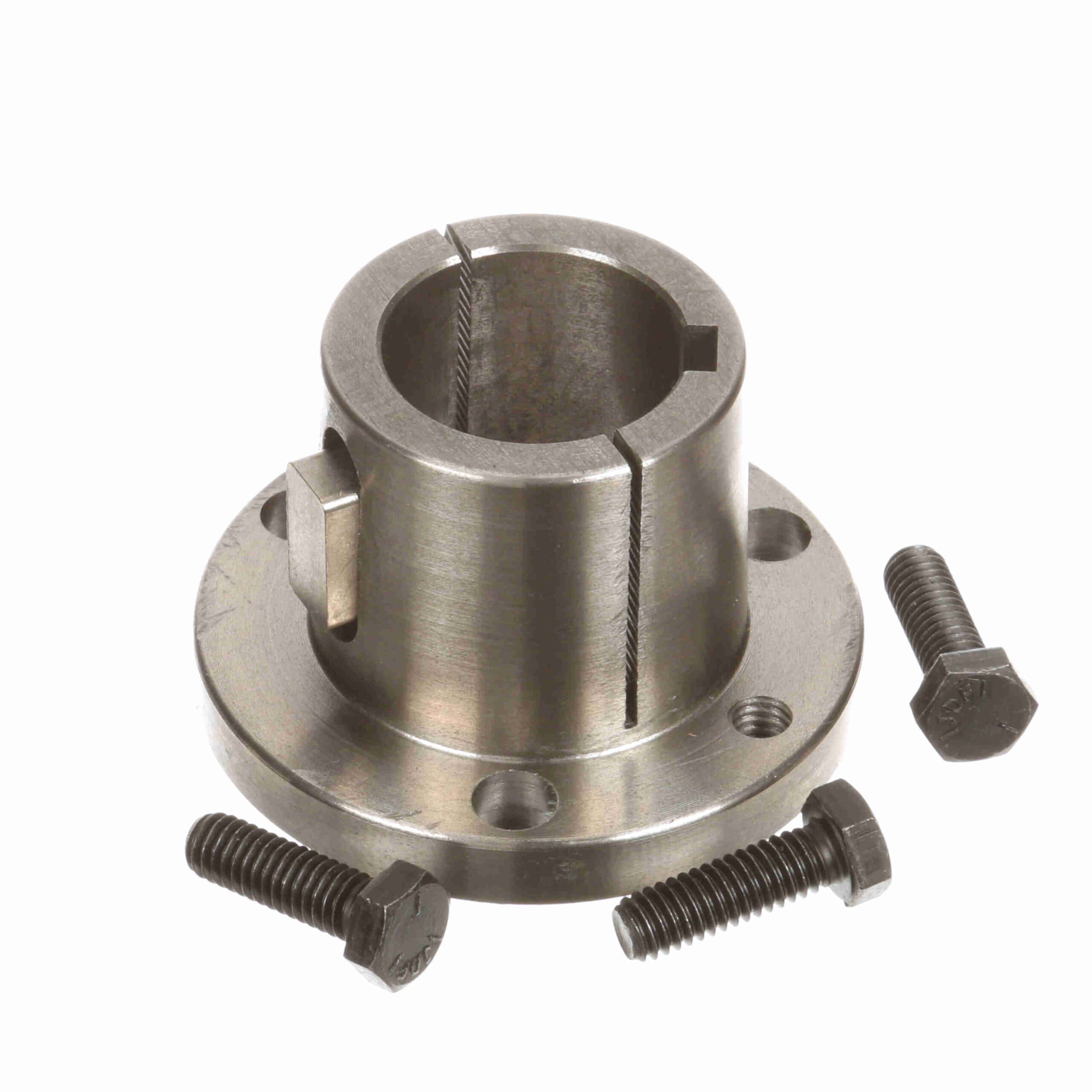

Browning Split Taper Bushing - Inch Bore Type - P1 1 5/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1069459 |
| Product Name | P1 1 5/16 |
| Brand | Browning |
| Material | Sintered Steel or Ductile Iron |
| Weight | 1.2 lb |
| Package Length | 3.2 in |
| Package Width | 3.2 in |
| Package Height | 2 in |
| Keyseat | 5/16 x 5/32 |
| Product Type | Split Taper Bushing |
| Total Length (in) | 1.9375 in |
| Cap Screws (Size) | 5/16 x 1 |
| Bushing Type |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| P1 |
| Wrench Torque (in-lb) | 192 |
| Outside Diameter (in) | 3 in |
| Bore Size (in) | 1.3125 in |
| Length Through Bore (in) | 1.9375 in |
| Compatible Bore Size [Max] (in) | 1.3125 in |
| Bore Type | Inch |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103483 |
| Part NumberiManufacturer catalog number | 1069459 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
