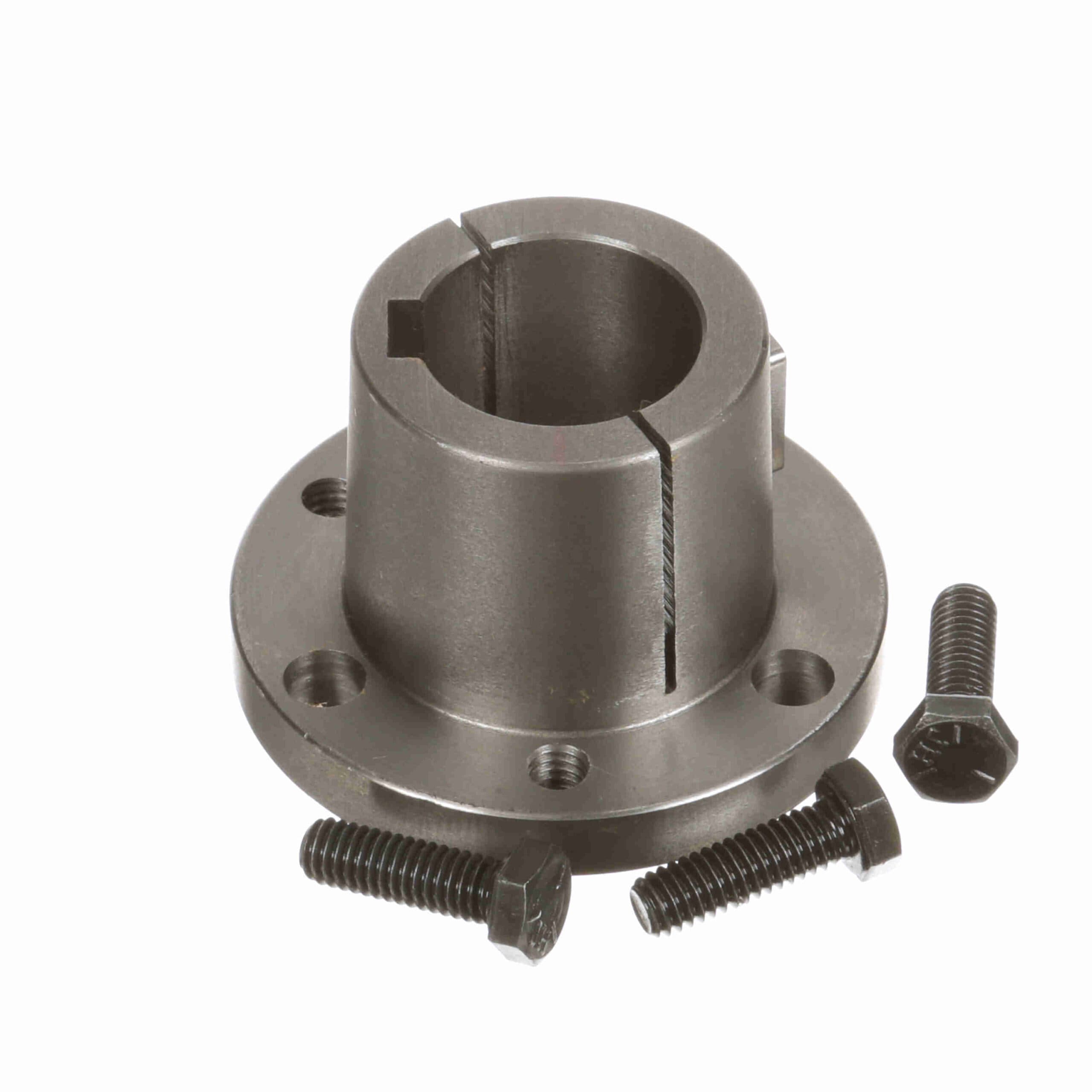

Browning Split Taper Bushing - Metric Bore Type - P1 32 MM
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1069871 |
| Product Name | P1 32 MM |
| Brand | Browning |
| Material | Sintered Steel or Ductile Iron |
| Weight | 1.26 lb |
| Package Length | 3.06 in |
| Package Width | 1.94 in |
| Package Height | 3.06 in |
| Keyseat (mm) | 10 x 4 mm |
| Outside Diameter (in) | 3 in |
| Cap Screws (Size) | 5/16 x 1 |
| Wrench Torque (in-lb) | 192 |
| Bore Size (mm) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 32 mm |
| Total Length (in) | 1.9375 in |
| Length Through Bore (mm) | 49.2125 mm |
| Compatible Bore Size [Max] (mm) | 32 mm |
| Bushing Type | P1 |
| Product Type | Split Taper Bushing |
| Total Length (mm) | 49.2125 mm |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103525 |
| Part NumberiManufacturer catalog number | 1069871 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
