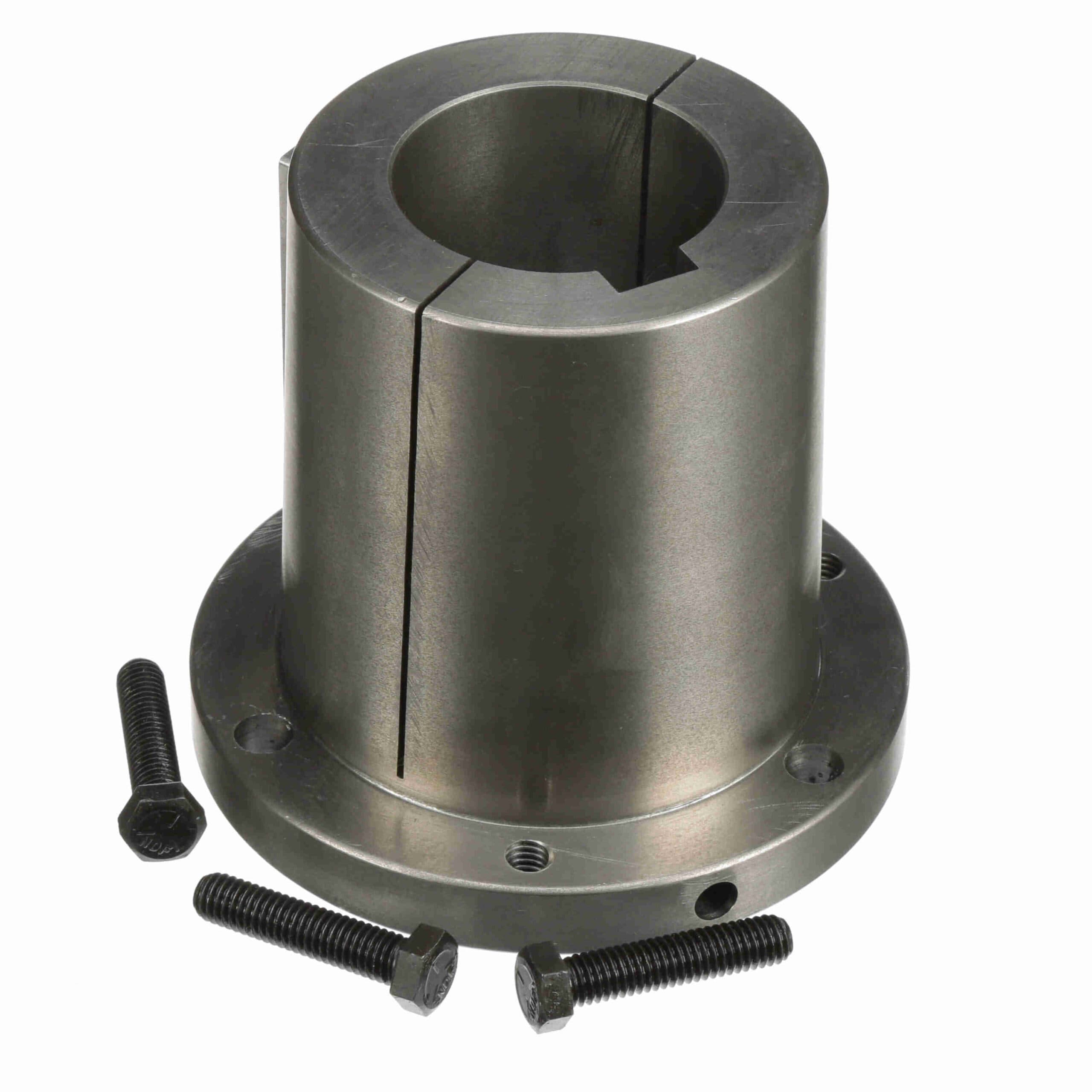

Browning Split Taper Bushing - Inch Bore Type - R2 2 5/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1070630 |
| Product Name | R2 2 5/16 |
| Brand | Browning |
| Material | Sintered Steel or Ductile Iron |
| Weight | 11.28 lb |
| Package Length | 5.38 in |
| Package Width | 5 in |
| Package Height | 5.38 in |
| Product Type | Split Taper Bushing |
| Wrench Torque (in-lb) | 348 |
| Total Length (in) | 4.875 in |
| Keyseat | 5/8 x 5/16 |
| Outside Diameter (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 5.375 in |
| Cap Screws (Size) | 3/8 x 1 3/4 |
| Bushing Type | R2 |
| Compatible Bore Size [Max] (in) | 2.3125 in |
| Length Through Bore (in) | 4.875 in |
| Bore Size (in) | 2.3125 in |
| Bore Type | Inch |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103591 |
| Part NumberiManufacturer catalog number | 1070630 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
