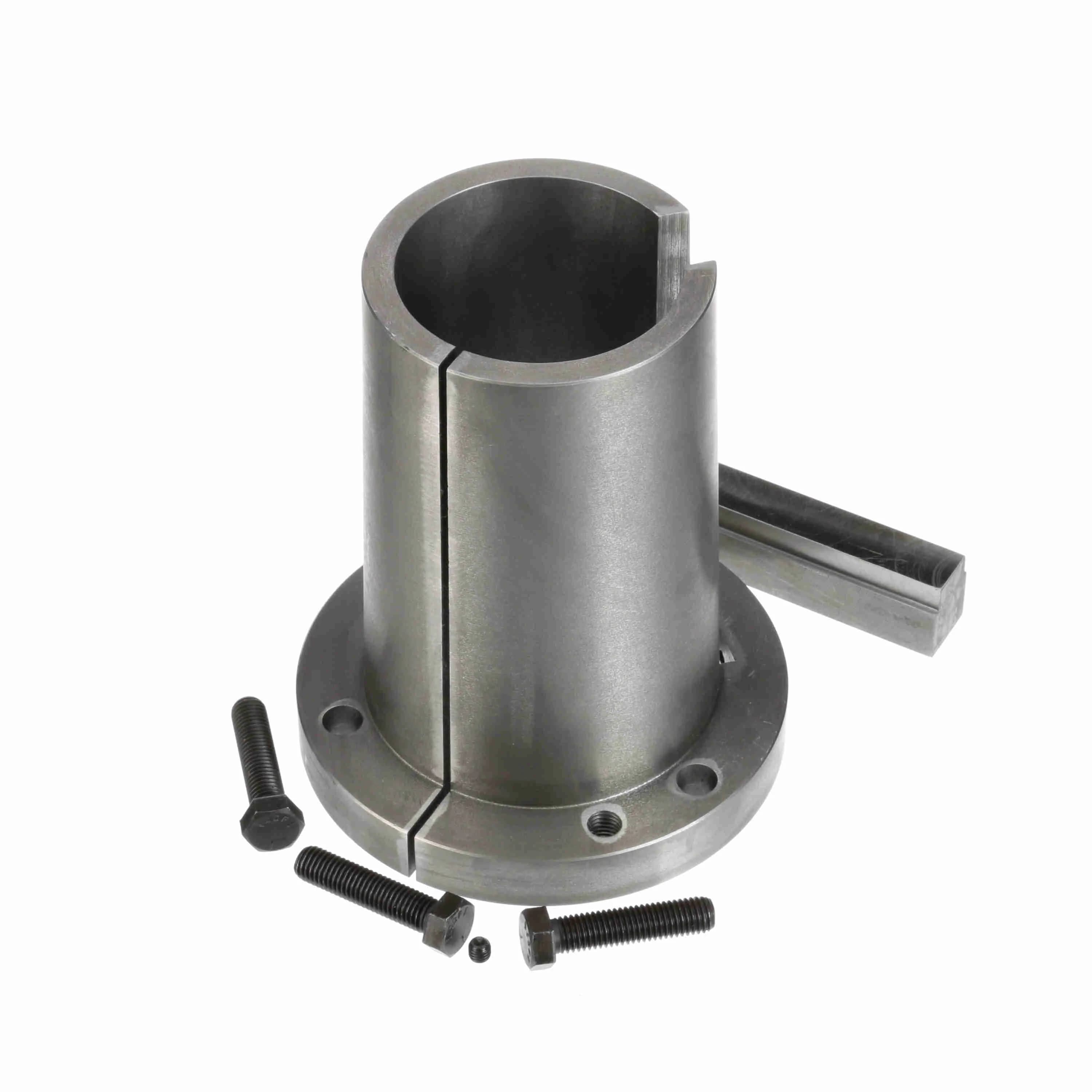

SPLIT TAPER BUSHINGS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1072040 |
| Product Name | U2 3 7/16 |
| Brand | Browning |
| Material | Ductile Iron or Gray Iron |
| Weight | 51.15 lb |
| Package Length | 9.25 in |
| Package Width | 9.25 in |
| Package Height | 3.88 in |
| Keyseat | 7/8 x 7/16 |
| Outside Diameter (in) | 8.375 in |
| Total Length (in) | 10.125 in |
| Length Through Bore (in) | 10.125 in |
| Model Name |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $2227.87 | — |
| 5 – 9 | $2058.46 | 8% off |
| 10+ | $1960.29 | 12% off |
| U2_Type1_BushingMaster |
| Compatible Bore Size [Max] (in) | 3.4375 in |
| Wrench Torque (in-lb) | 1,680 |
| Bushing Type | U2 |
| Product Type | Split Taper Bushing |
| Cap Screws (Size) | 5/8 x 2 3/4 |
| Bore Size (in) | 3.4375 in |
| Bore Type | Inch |
| Cap Screws (No.) | 3 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103700 |
| Part NumberiManufacturer catalog number | 1072040 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289192601 |
| CategoryiCatalog classification | Split Taper Bushings |
