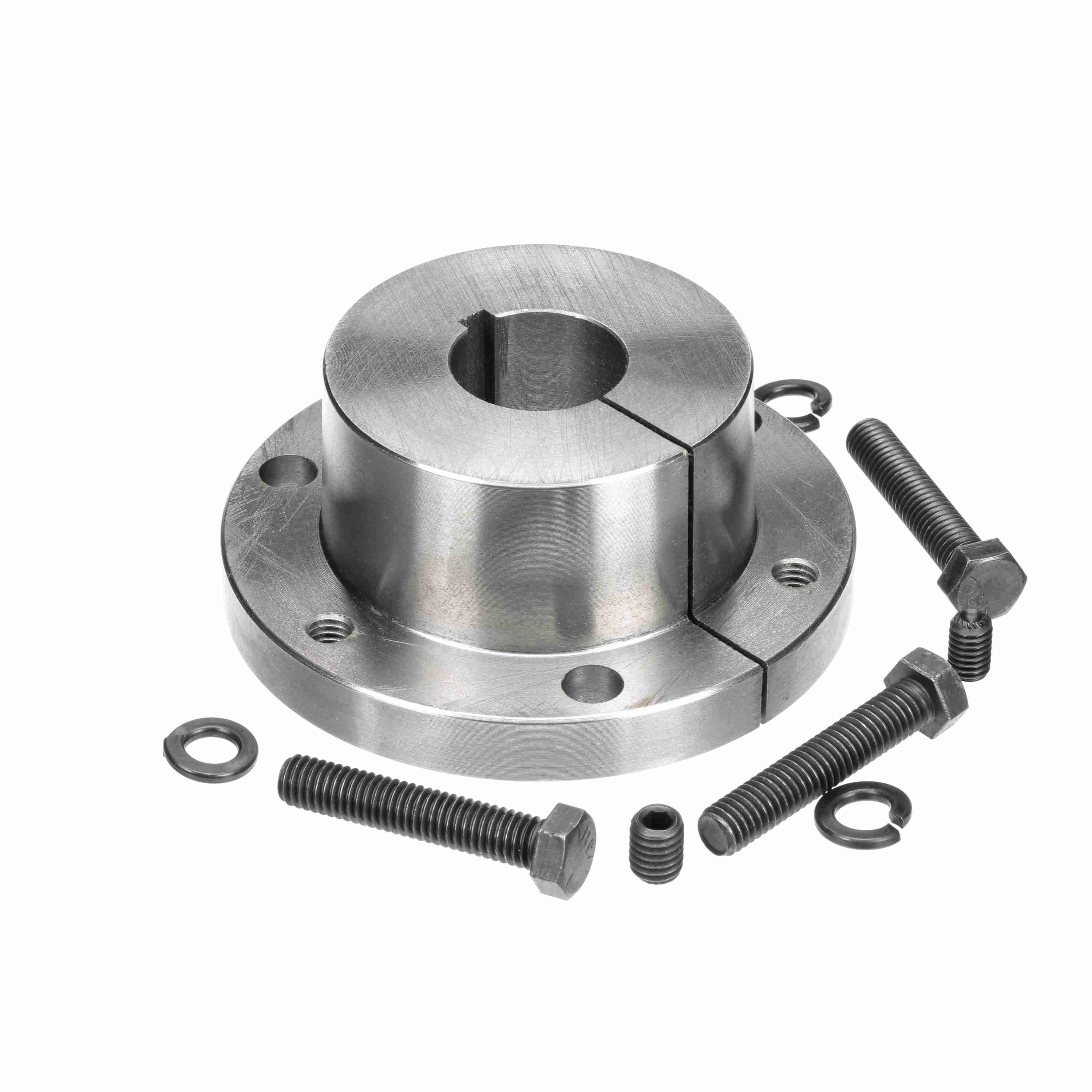

QD BUSHINGS-600
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1073238 |
| Product Name | E 1 1/4 |
| Brand | Browning |
| Material | Ductile Iron-Grade 65-45-15 |
| Weight | 10.375 lb |
| Package Length | 6.3 in |
| Package Width | 6.3 in |
| Package Height | 3.4 in |
| Mounting Type | Conventional |
| Bore Type | Inch |
| Product Type | Q-D Bushing |
| Wrench Torque (ft.-lbs.) | 60 |
| Bushing Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $556.22 | — |
| 5 – 9 | $521.63 | 6% off |
| 10+ | $508.34 | 9% off |
| E |
| Keyway | 1/4 x 1/8 |
| Compatible Bore Size [Max] (in) | 1.25 in |
| Cap Screws (Bolt Circle) | 5 |
| Length Through Bore (in) | 2.64 in |
| Torque Capacity (in-lb) | 20,000 |
| Total Length (in) | 2.64 in |
| Model Name | QD-E_Bushing_Master |
| Cap Screws (No.) | 3 |
| Outside Diameter (in) | 6 in |
| Cap Screws (Size) | 1/2-13 x 2 3/4 |
| Bore Size (in) | 1.25 in |
| Barrel Length | 1.89 in |
| Flange Thickness | 0.75 in |
| Barrel Diameter | 3.834 in |
| HTC | 8483.90.8080 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103736 |
| Part NumberiManufacturer catalog number | 1073238 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289414062 |
| CategoryiCatalog classification | Q-D Bushings |
