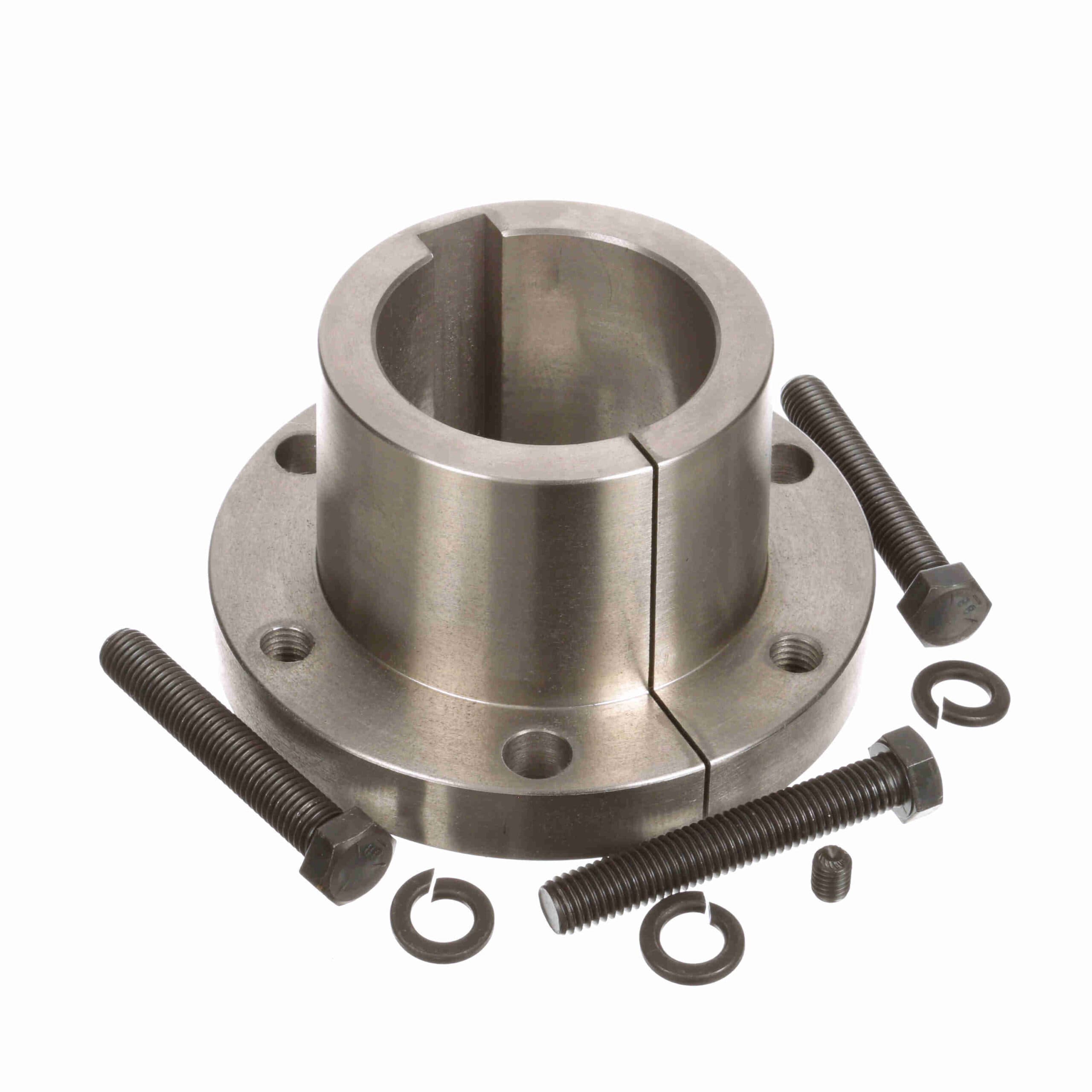

Browning Q-D Bushing - Inch Bore Type - F 3 3/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1073998 |
| Product Name | F 3 3/16 |
| Brand | Browning |
| Weight | 12.14 lb |
| Package Length | 7.7 in |
| Package Width | 7.7 in |
| Package Height | 4.2 in |
| Cap Screws (No.) | 3 |
| Product Type | Q-D Bushing |
| Outside Diameter (in) | 6.625 in |
| Bore Type | Inch |
| Compatible Bore Size [Max] (in) | 3.1875 in |
| Total Length (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 3.68 in |
| Mounting Type | Conventional |
| Cap Screws (Bolt Circle) | 5.625 |
| Cap Screws (Size) | 9/16-12 x 3 5/8 |
| Wrench Torque (ft.-lbs.) | 75 |
| Bushing Type | F |
| Keyway | 3/4 x 3/8 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103796 |
| Part NumberiManufacturer catalog number | 1073998 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
