QD BUSHINGS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1074061 |

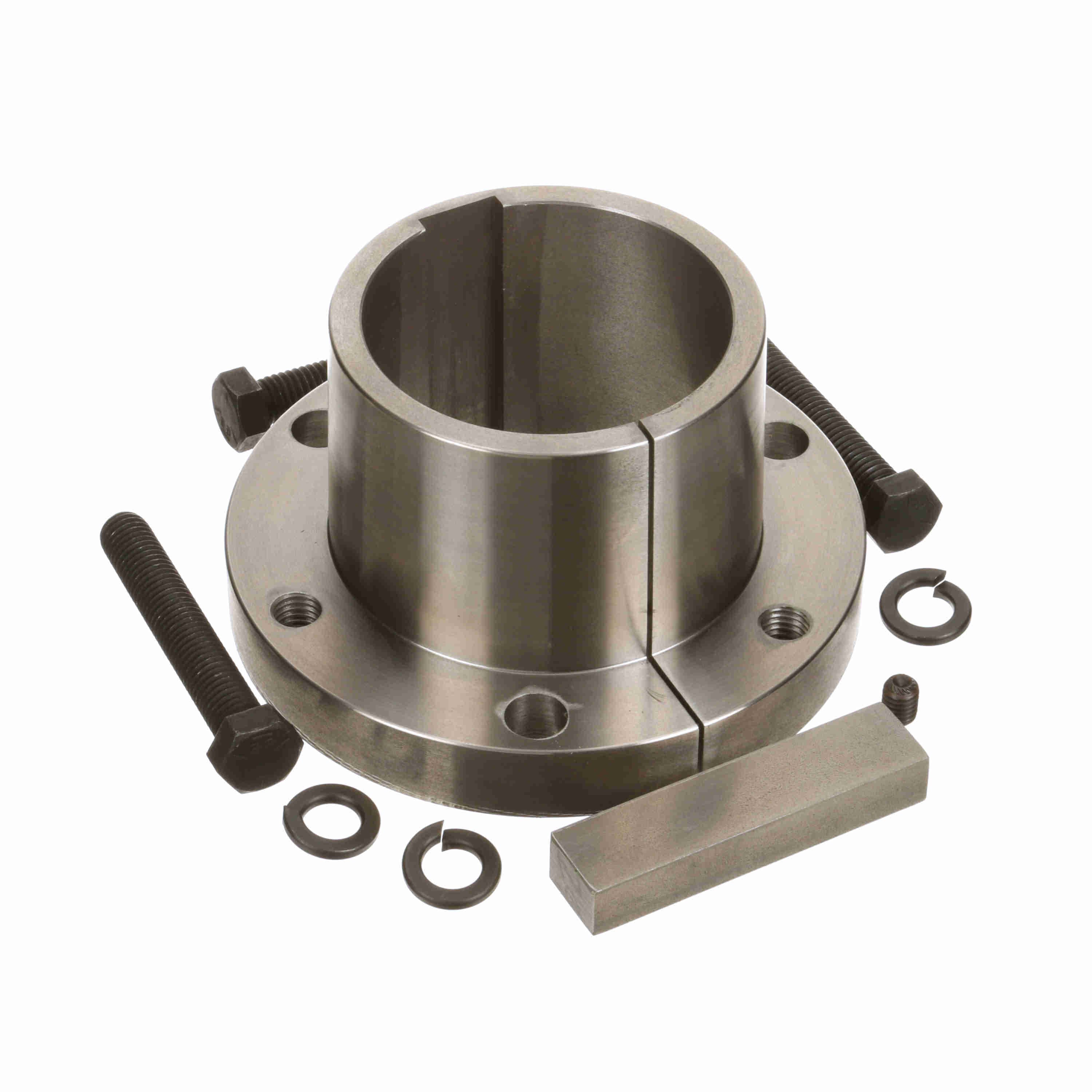

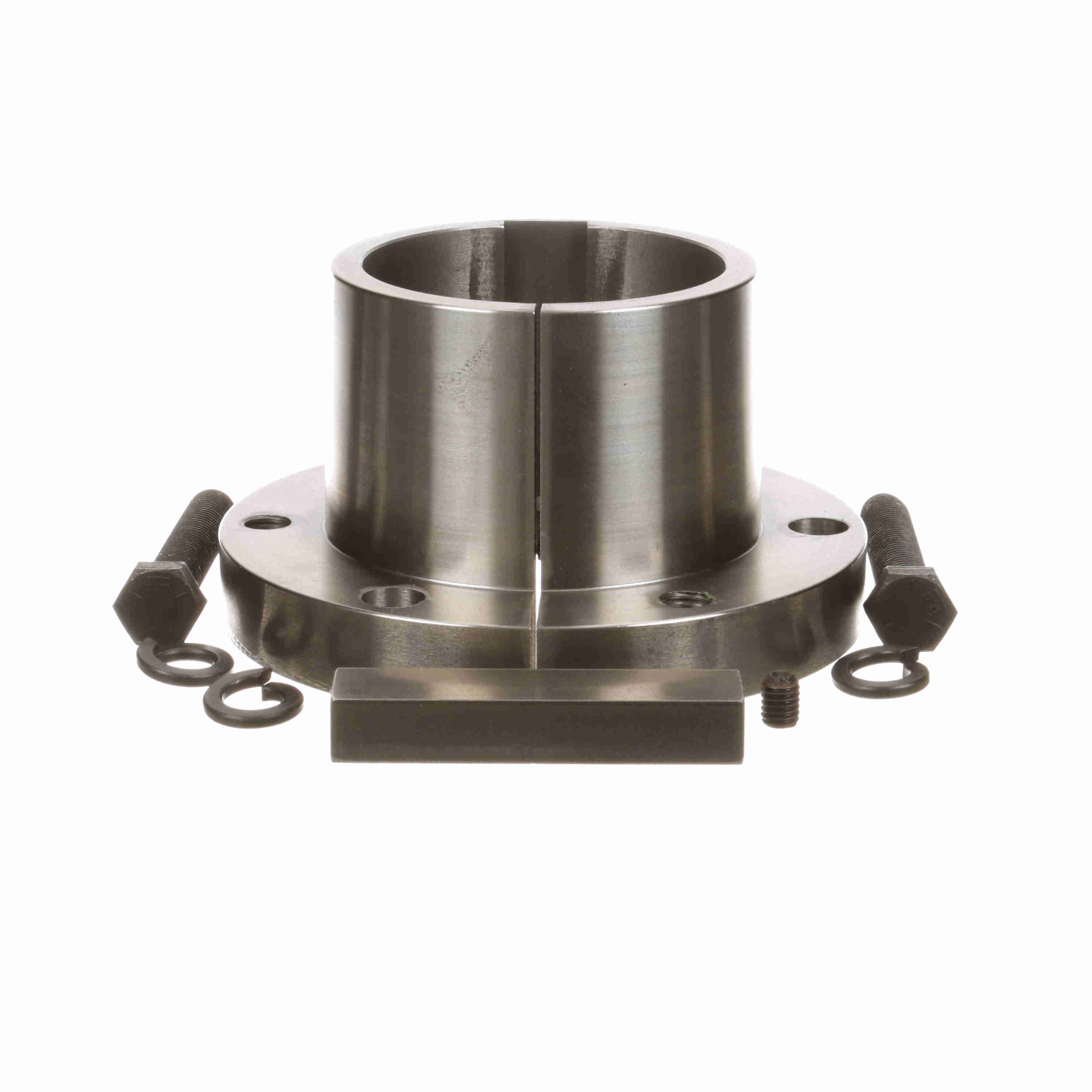

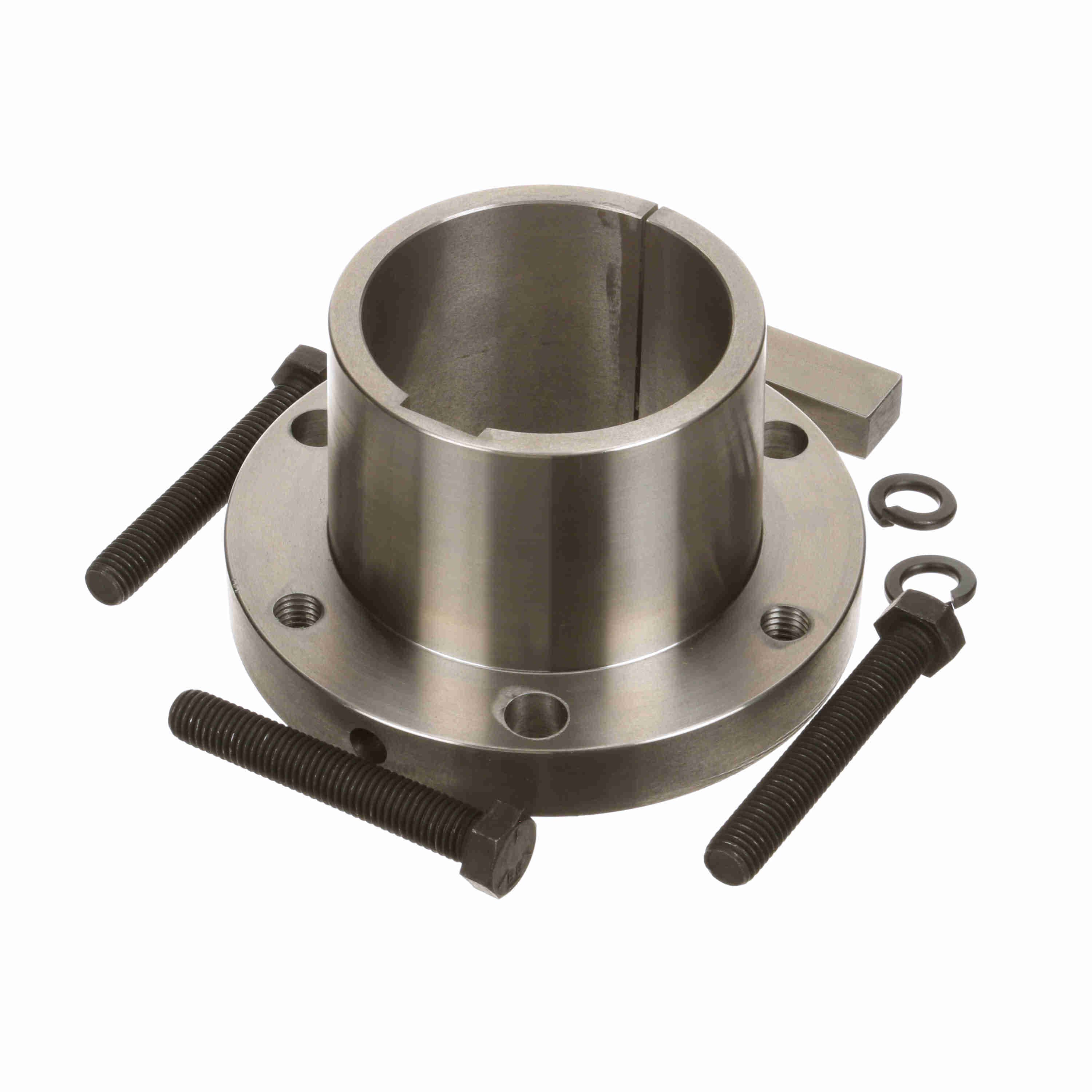

| Product Name | F 3 5/8 |
| Brand | Browning |
| Material | Gray Iron - G3040 |
| Weight | 10.055 lb |
| Package Length | 7.6 in |
| Package Width | 7.6 in |
| Package Height | 4.2 in |
| Bore Type | Inch |
| Outside Diameter (in) | 6.625 in |
| Length Through Bore (in) | 3.68 in |
| Mounting Type | Conventional |
| Cap Screws (Size) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $817.64 | — |
| 5 – 9 | $766.79 | 6% off |
| 10+ | $747.26 | 9% off |
| 9/16-12 x 3 5/8 |
| Wrench Torque (ft.-lbs.) | 75 |
| Cap Screws (No.) | 3 |
| Compatible Bore Size [Max] (in) | 3.625 in |
| Total Length (in) | 3.68 in |
| Model Name | QD-F_Bushing_Master |
| Keyway | 7/8 x 7/16 |
| Torque Capacity (in-lb) | 30,000 |
| Bushing Type | F |
| Cap Screws (Bolt Circle) | 5.625 |
| Product Type | Q-D Bushing |
| Bore Size (in) | 3.625 in |
| Flange Thickness | 0.9375 in |
| Barrel Diameter | 4.375 in |
| Barrel Length | 2.7425 in |
| HTC | 8483.90.8080 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103801 |
| Part NumberiManufacturer catalog number | 1074061 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289400379 |
| CategoryiCatalog classification | Q-D Bushings |
