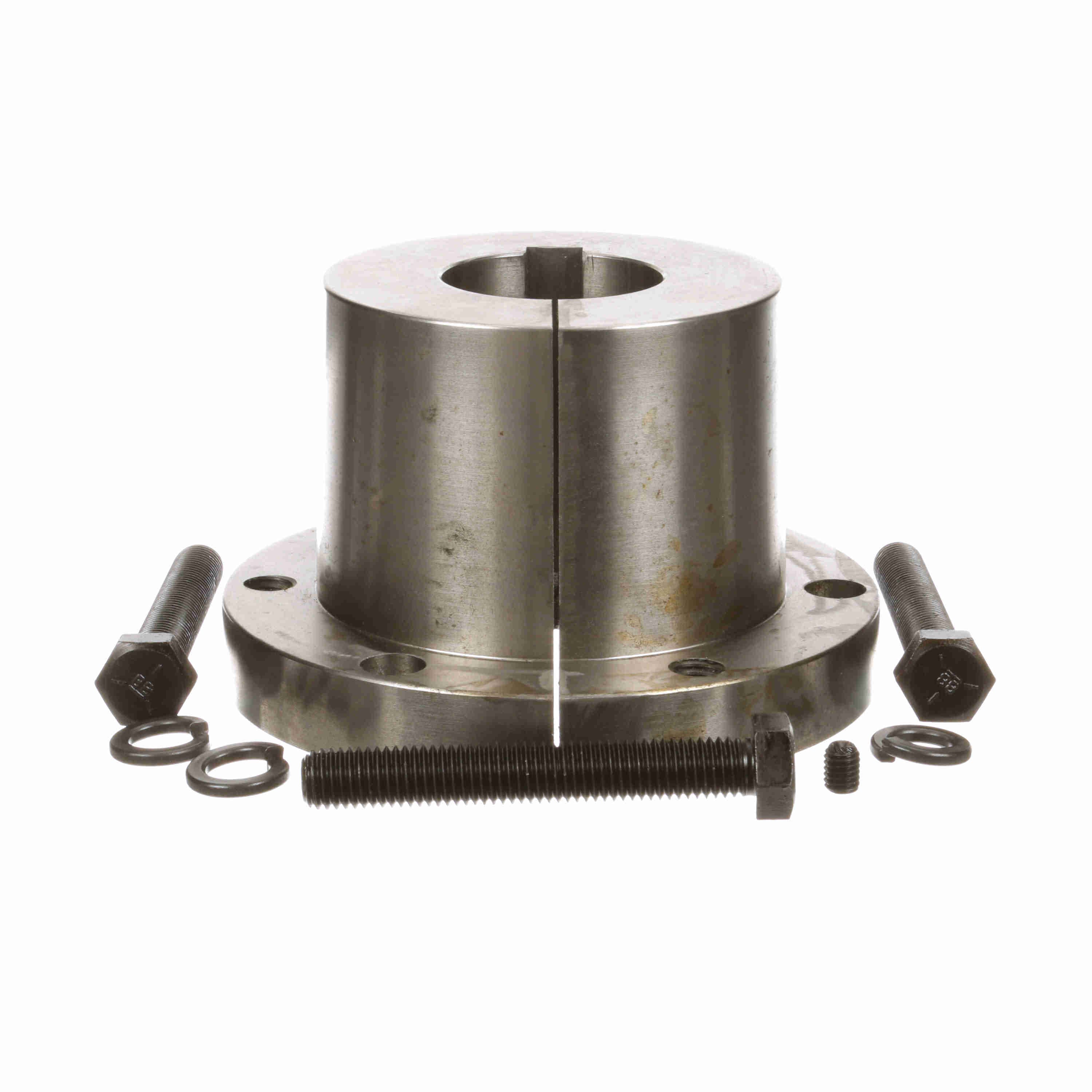

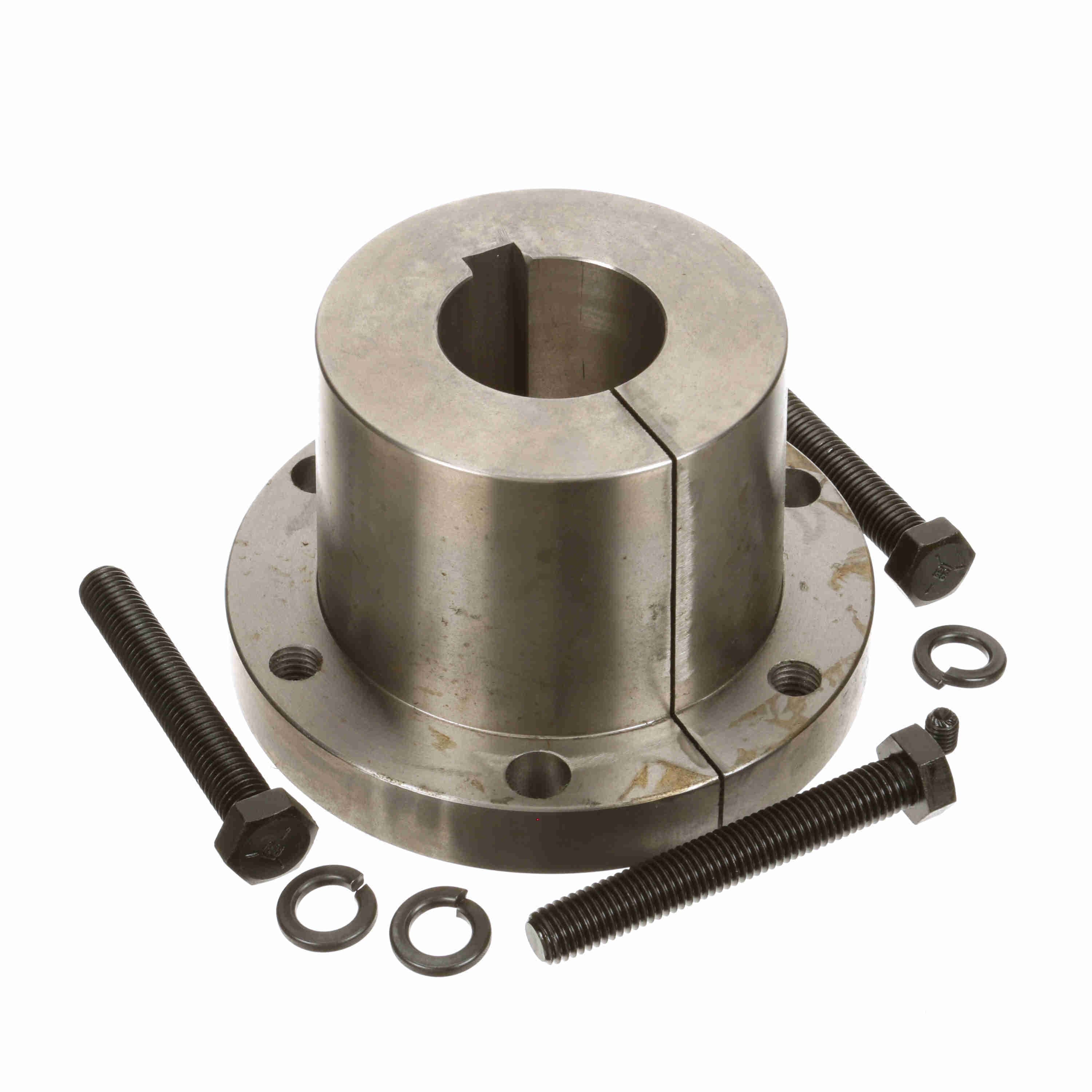

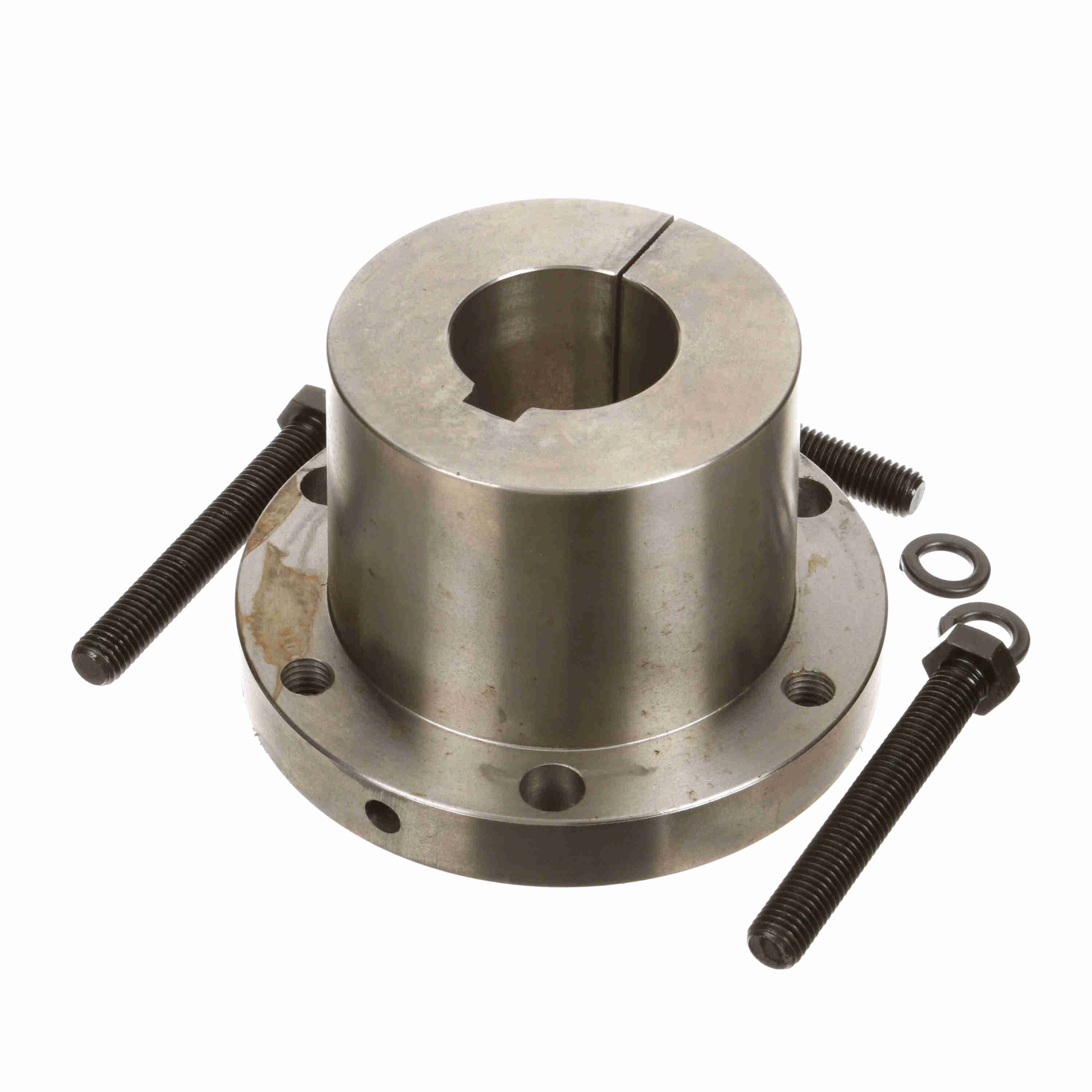

QD BUSHINGS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1074293 |
| Product Name | J 2 3/8 |
| Brand | Browning |
| Material | Gray Iron - G2979 |
| Weight | 25.5 lb |
| Package Length | 7.88 in |
| Package Width | 7.88 in |
| Package Height | 4.75 in |
| Bushing Type | J |
| Total Length (in) | 4.51 in |
| Wrench Torque (ft.-lbs.) | 135 |
| Bore Type | Inch |
| Cap Screws (Bolt Circle) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $1272.84 | — |
| 5 – 9 | $1193.68 | 6% off |
| 10+ | $1163.28 | 9% off |
| 6.25 |
| Cap Screws (Size) | 5/8-11 x 4 1/2 |
| Cap Screws (No.) | 3 |
| Compatible Bore Size [Max] (in) | 2.375 in |
| Product Type | Q-D Bushing |
| Outside Diameter (in) | 7.25 in |
| Mounting Type | Conventional |
| Model Name | QD-J_Bushing_Master |
| Torque Capacity (in-lb) | 45,000 |
| Length Through Bore (in) | 4.51 in |
| Keyway | 5/8 x 5/16 |
| Bore Size (in) | 2.375 in |
| Barrel Diameter | 5.1484 in |
| Barrel Length | 3.51 in |
| Flange Thickness | 1 in |
| HTC | 8483.90.8080 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103811 |
| Part NumberiManufacturer catalog number | 1074293 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289330508 |
| CategoryiCatalog classification | Q-D Bushings |
