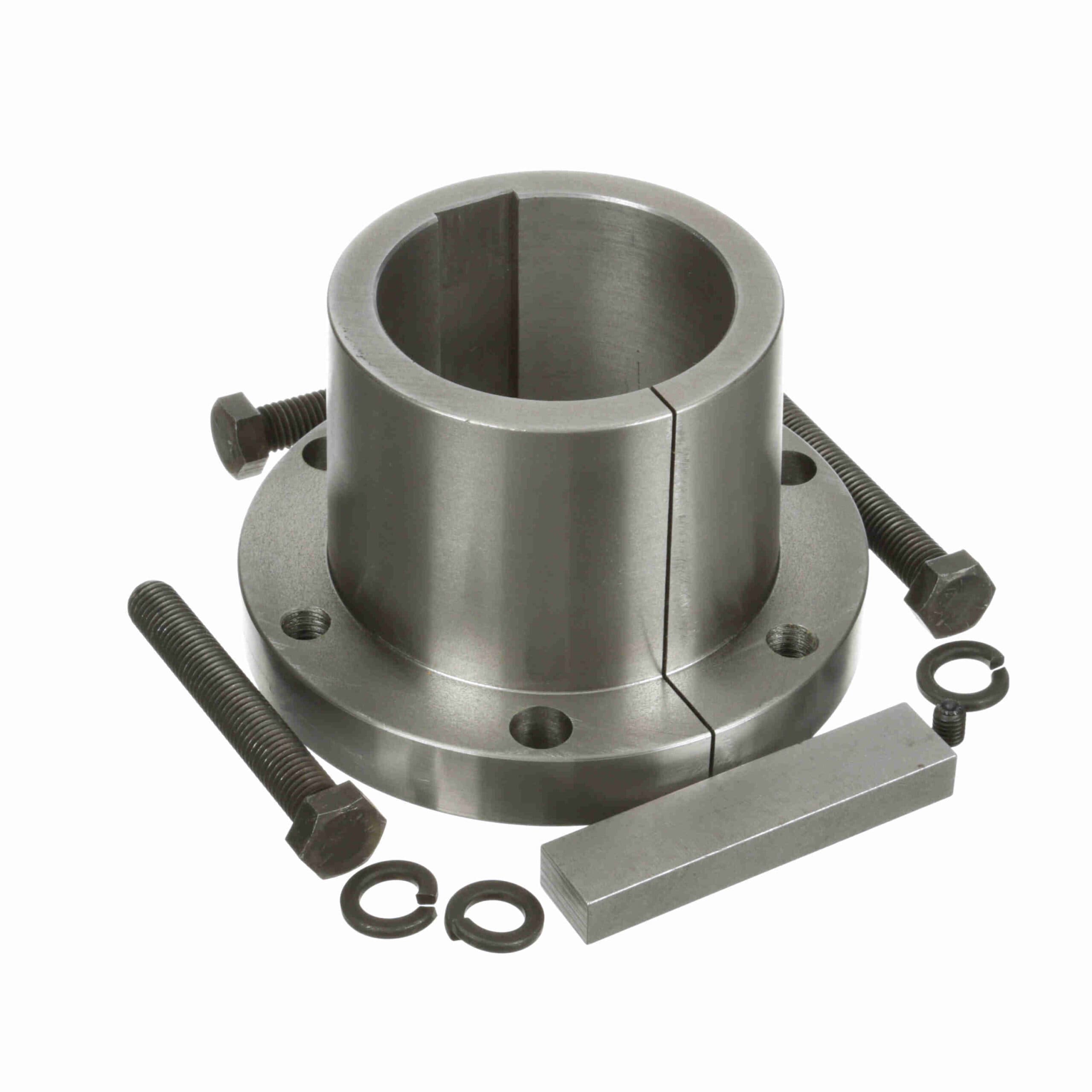

Browning Q-D Bushing - Inch Bore Type - J 3 7/8
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1074533 |
| Product Name | J 3 7/8 |
| Brand | Browning |
| Weight | 17.44 lb |
| Package Length | 7.88 in |
| Package Width | 7.88 in |
| Package Height | 4.75 in |
| Total Length (in) | 4.51 in |
| Bore Type | Inch |
| Bushing Type | J |
| Cap Screws (Bolt Circle) | 6.25 |
| Outside Diameter (in) | 7.25 in |
| Keyway |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 1 x 1/2 |
| Length Through Bore (in) | 4.51 in |
| Compatible Bore Size [Max] (in) | 3.875 in |
| Mounting Type | Conventional |
| Cap Screws (Size) | 5/8-11 x 4 1/2 |
| Torque Capacity (in-lb) | 45, 000 |
| Wrench Torque (ft.-lbs.) | 135 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103826 |
| Part NumberiManufacturer catalog number | 1074533 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
