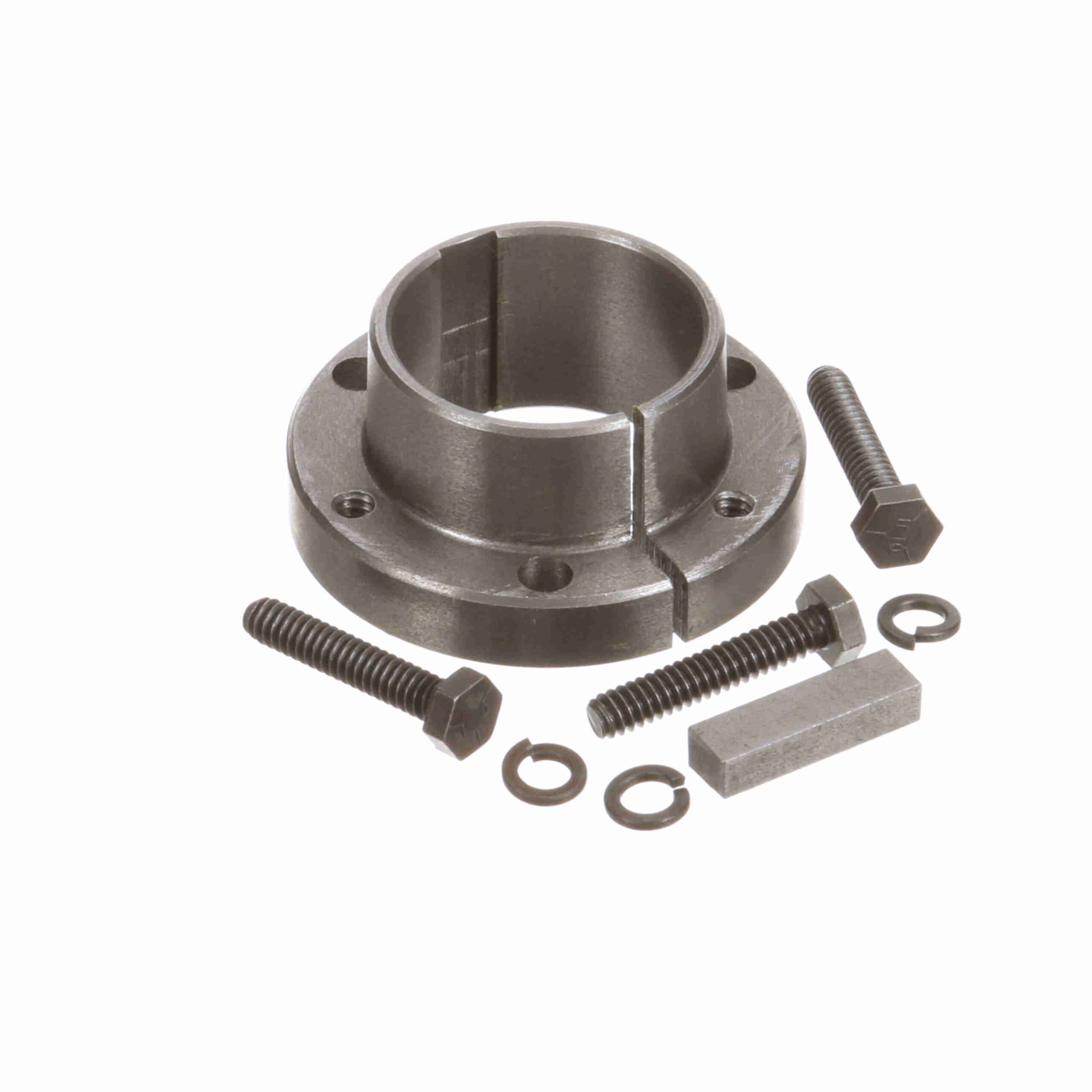

Browning Q-D Bushing - Inch Bore Type - JA 1 3/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1074756 |
| Product Name | JA 1 3/16 |
| Brand | Browning |
| Weight | 0.32 lb |
| Package Length | 3.06 in |
| Package Width | 3.06 in |
| Package Height | 1.31 in |
| Total Length (in) | 0.89 in |
| Bushing Type | JA |
| Cap Screws (Bolt Circle) | 1.65625 |
| Torque Capacity (in-lb) | 1, 000 |
| Outside Diameter (in) | 2 in |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Length Through Bore (in) |
| 0.89 in |
| Cap Screws (Size) | 10-24 x 1 |
| Cap Screws (No.) | 3 |
| Keyway | 1/4 x 1/8 |
| Product Type | Q-D Bushing |
| Wrench Torque (ft.-lbs.) | 6 |
| Compatible Bore Size [Max] (in) | 1.1875 in |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103844 |
| Part NumberiManufacturer catalog number | 1074756 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
