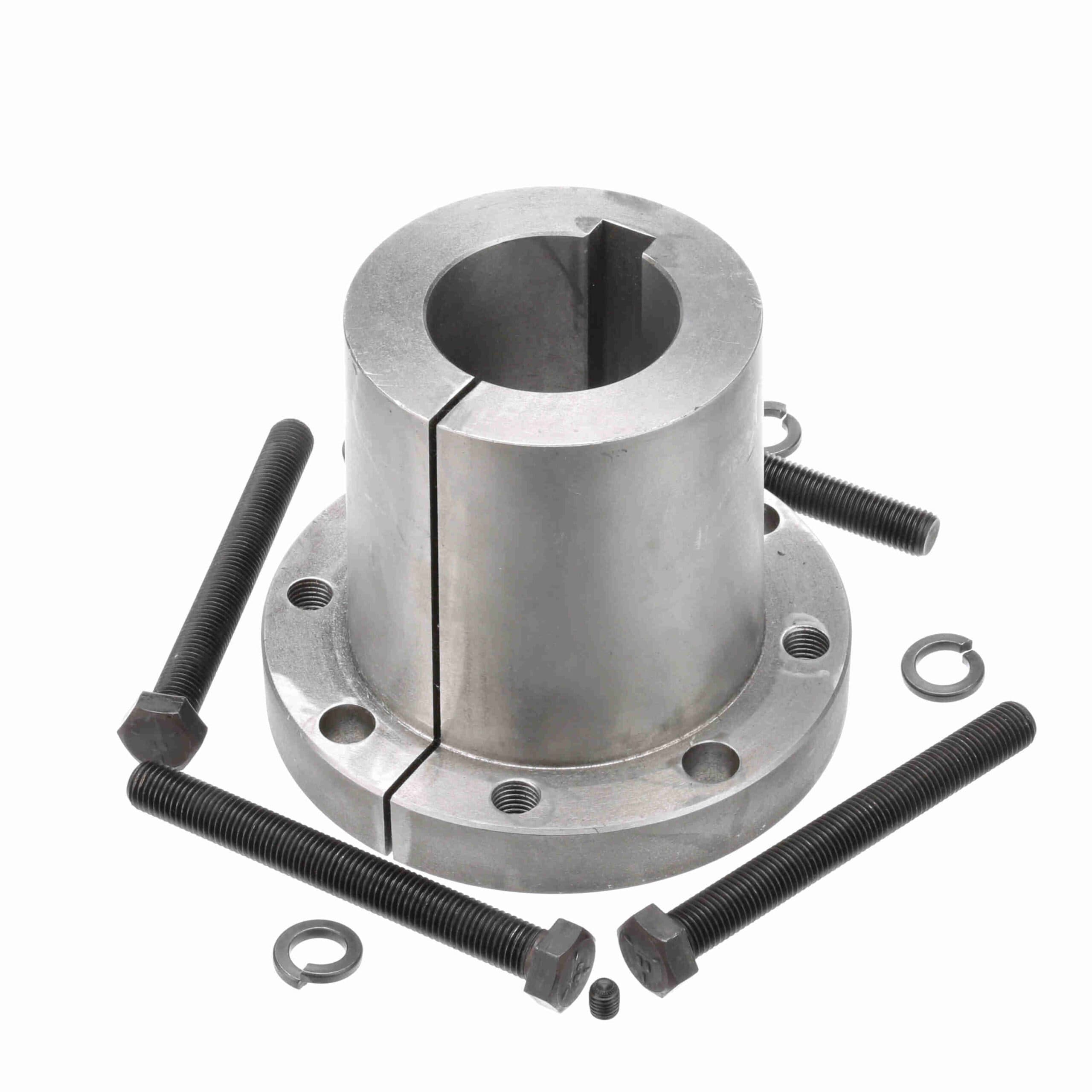

Browning Q-D Bushing - Inch Bore Type - N 2 11/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1075381 |
| Product Name | N 2 11/16 |
| Brand | Browning |
| Weight | 89.1 lb |
| Package Length | 10.25 in |
| Package Width | 10.25 in |
| Package Height | 8.5 in |
| Mounting Type | Conventional |
| Length Through Bore (in) | 8.14 in |
| Cap Screws (No.) | 4 |
| Bushing Type | N |
| Wrench Torque (ft.-lbs.) | 300 |
| Torque Capacity (in-lb) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 150, 000 |
| Product Type | Q-D Bushing |
| Outside Diameter (in) | 10 in |
| Compatible Bore Size [Max] (in) | 2.6875 in |
| Cap Screws (Bolt Circle) | 8.5 |
| Keyway | 5/8 x 5/16 |
| Bore Type | Inch |
| Cap Screws (Size) | 7/8-9 x 8 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103874 |
| Part NumberiManufacturer catalog number | 1075381 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
