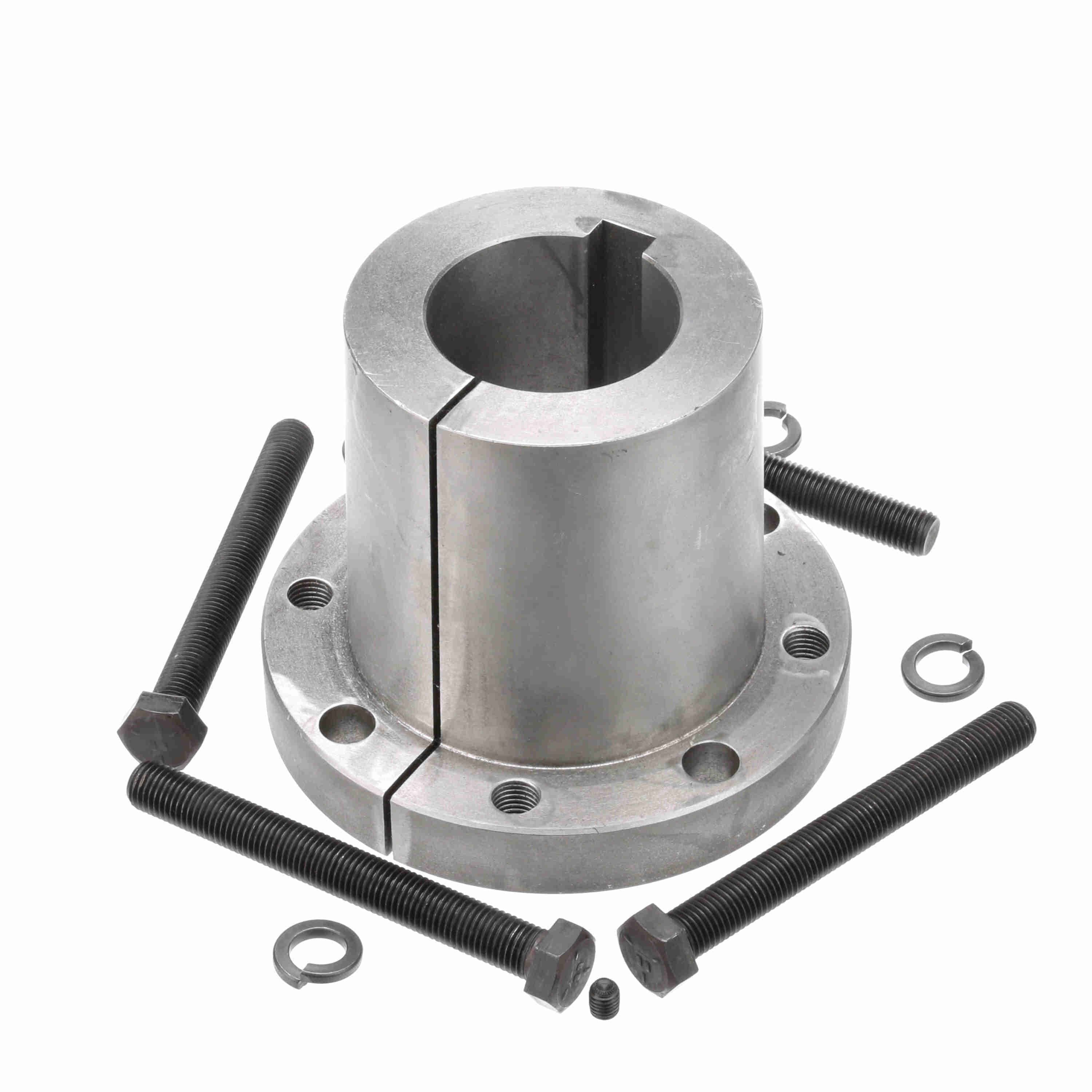

QD BUSHINGS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1075753 |
| Product Name | N 5 |
| Brand | Browning |
| Material | Gray Iron - G3031 |
| Weight | 57 lb |
| Package Length | 10.25 in |
| Package Width | 10.25 in |
| Package Height | 8.5 in |
| Total Length (in) | 8.14 in |
| Compatible Bore Size [Max] (in) | 5 in |
| Torque Capacity (in-lb) | 150,000 |
| Outside Diameter (in) | 10 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $4094.73 | — |
| 5 – 9 | $3840.08 | 6% off |
| 10+ | $3742.27 | 9% off |
| Product Type |
| Q-D Bushing |
| Cap Screws (Size) | 7/8-9 x 8 |
| Cap Screws (Bolt Circle) | 8.5 |
| Keyway | 1 1/4 x 5/8 |
| Bore Type | Inch |
| Length Through Bore (in) | 8.14 in |
| Mounting Type | Conventional |
| Wrench Torque (ft.-lbs.) | 300 |
| Model Name | QD-N_Bushing_Master |
| Bushing Type | N |
| Cap Screws (No.) | 4 |
| Bore Size (in) | 5 in |
| Barrel Length | 6.64 in |
| Flange Thickness | 1.5 in |
| Barrel Diameter | 7 in |
| HTC | 8483.90.8080 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103895 |
| Part NumberiManufacturer catalog number | 1075753 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289322008 |
| CategoryiCatalog classification | Q-D Bushings |
