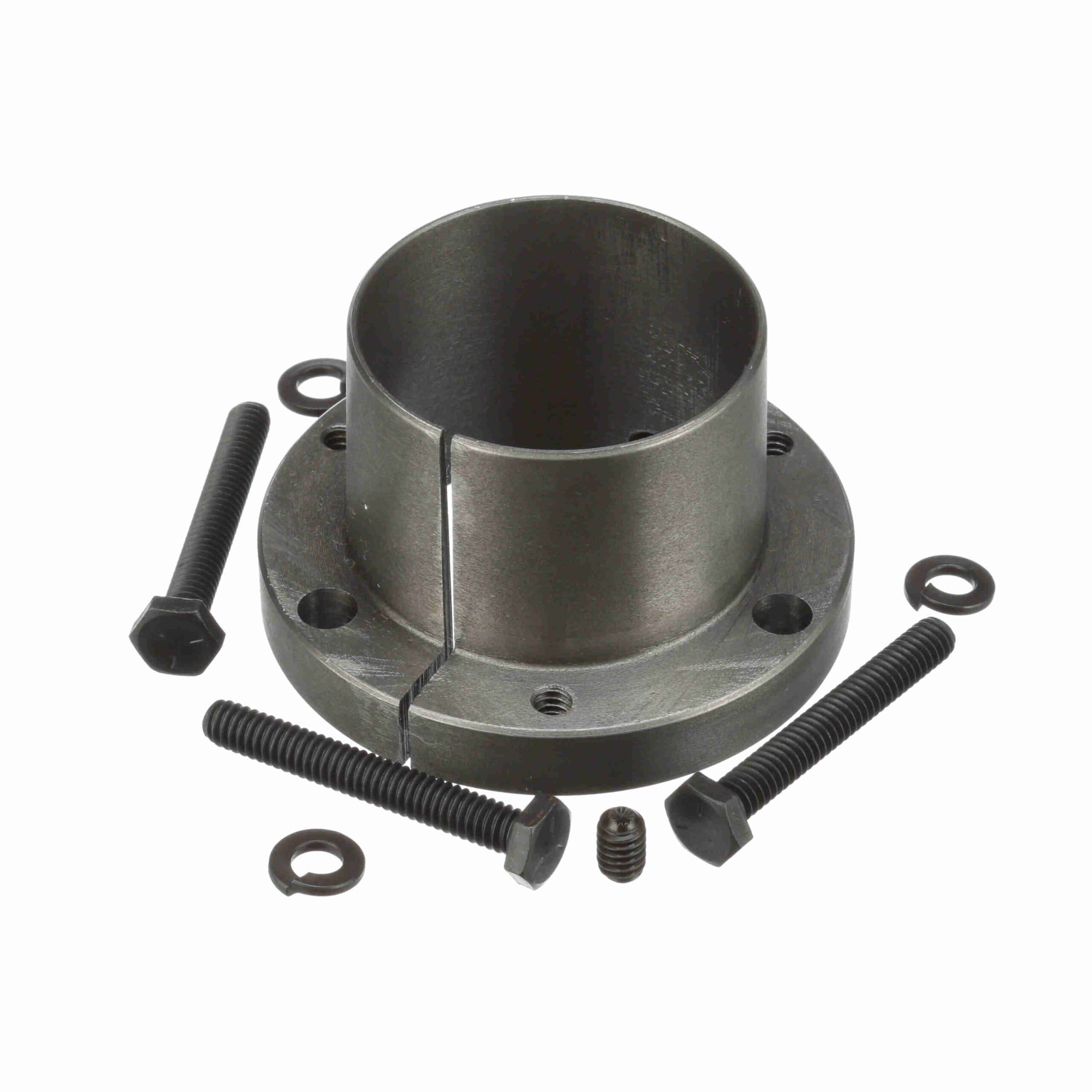

Browning Q-D Bushing - Inch Bore Type - SD 5/8
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1076587 |
| Product Name | SD 5/8 |
| Brand | Browning |
| Weight | 2.1 lb |
| Package Length | 4.06 in |
| Package Width | 4.06 in |
| Package Height | 1.88 in |
| Cap Screws (No.) | 3 |
| Wrench Torque (ft.-lbs.) | 9 |
| Cap Screws (Size) | 1/4-20 x 1 7/8 |
| Product Type | Q-D Bushing |
| Bore Type | Inch |
| Bushing Type |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| SD |
| Torque Capacity (in-lb) | 5, 000 |
| Cap Screws (Bolt Circle) | 2.6875 |
| Compatible Bore Size [Max] (in) | 0.625 in |
| Mounting Type | Conventional |
| Total Length (in) | 1.83 in |
| Outside Diameter (in) | 3.125 in |
| Length Through Bore (in) | 1.83 in |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103920 |
| Part NumberiManufacturer catalog number | 1076587 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
