QD BUSHINGS-600
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1076793 |

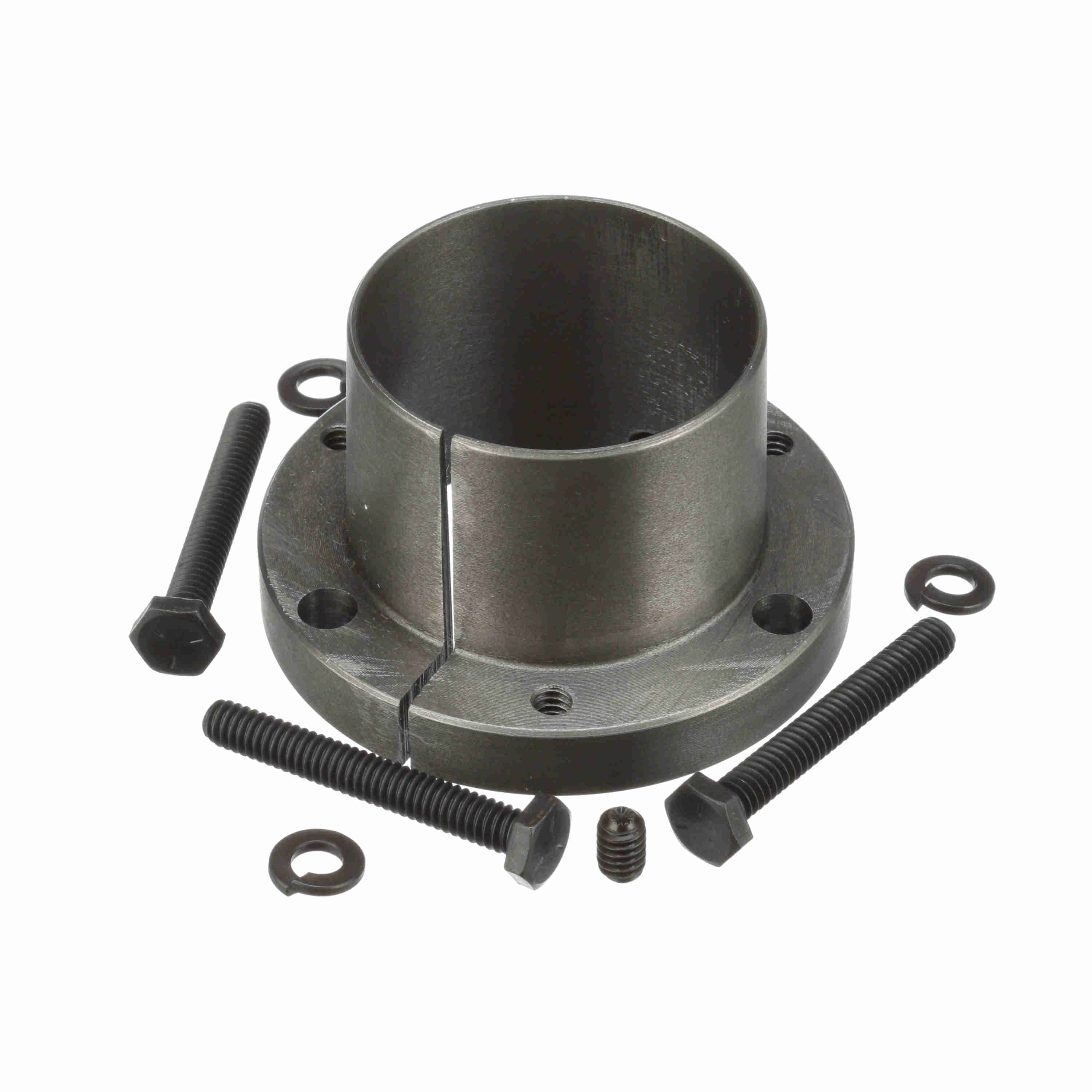

| Product Name | SD 1 13/16 |
| Brand | Browning |
| Material | Ductile Iron - 65-45-17 |
| Weight | 1.12 lb |
| Package Length | 4.06 in |
| Package Width | 4.06 in |
| Package Height | 1.88 in |
| Cap Screws (Bolt Circle) | 2.6875 |
| Total Length (in) | 1.83 in |
| Product Type | Q-D Bushing |
| Torque Capacity (in-lb) | 5,000 |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $137.14 | — |
| 5 – 9 | $128.61 | 6% off |
| 10+ | $125.34 | 9% off |
| Cap Screws (No.) |
| 3 |
| Outside Diameter (in) | 3.125 in |
| Mounting Type | Conventional |
| Cap Screws (Size) | 1/4-20 x 1 7/8 |
| Model Name | QD-SD_Bushing_Master |
| Bushing Type | SD |
| Bore Type | Inch |
| Keyway | 1/2 x 1/4 |
| Compatible Bore Size [Max] (in) | 1.8125 in |
| Wrench Torque (ft.-lbs.) | 9 |
| Length Through Bore (in) | 1.83 in |
| Bore Size (in) | 1.8125 in |
| Barrel Length | 1.38 in |
| Barrel Diameter | 2.1875 in |
| Flange Thickness | 0.45 in |
| HTC | 8483.90.8080 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103940 |
| Part NumberiManufacturer catalog number | 1076793 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289384785 |
| CategoryiCatalog classification | Q-D Bushings |
