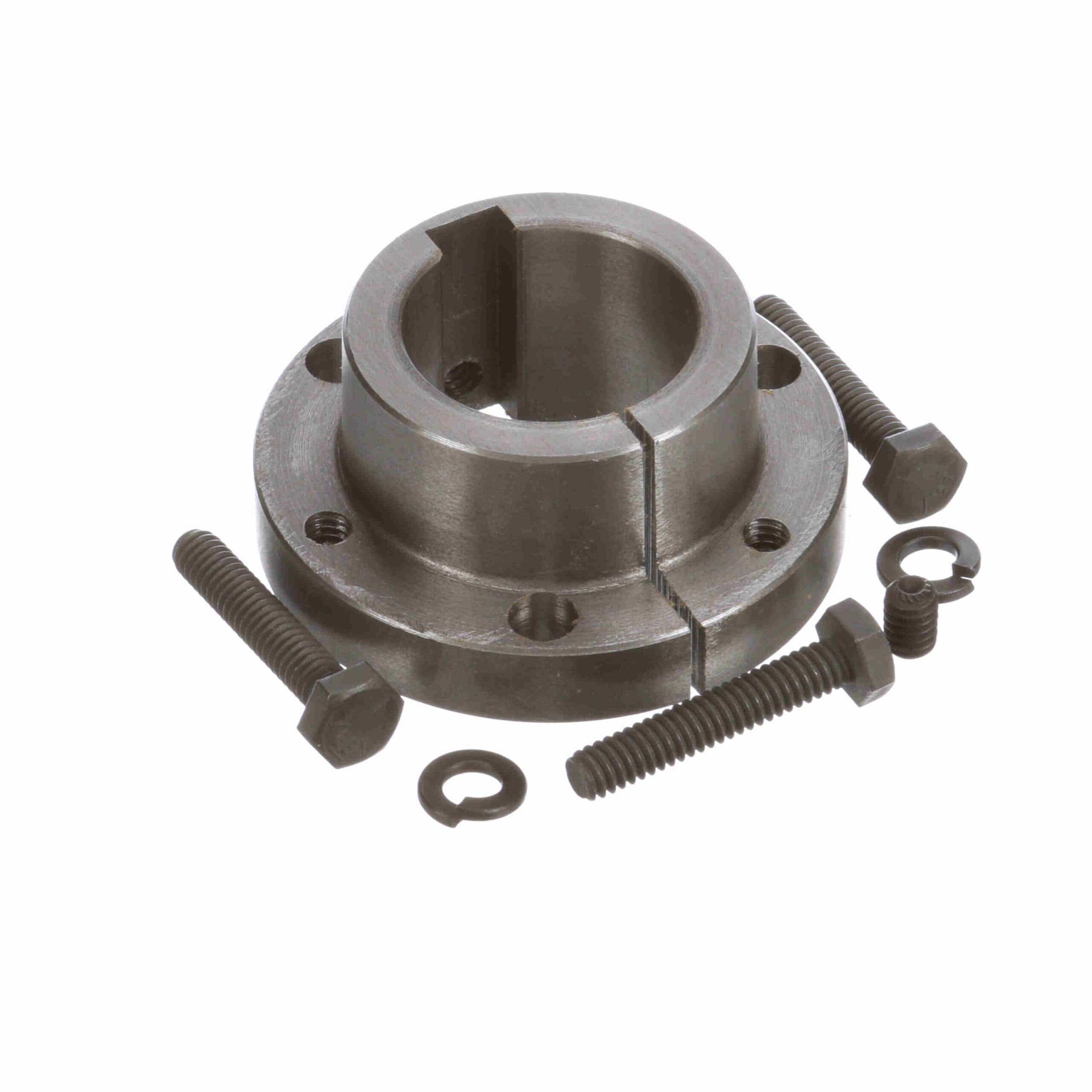

Browning Q-D Bushing - Inch Bore Type - SH 1 5/16 3/8
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1077668 |
| Product Name | SH 1 5/16 3/8 |
| Brand | Browning |
| Weight | 0.82 lb |
| Package Length | 3.7 in |
| Package Width | 3.8 in |
| Package Height | 1.5 in |
| Product Type | Q-D Bushing |
| Keyway | 3/8 x 3/16 |
| Bore Type | Inch |
| Total Length (in) | 1.2 in |
| Cap Screws (Bolt Circle) | 2.25 |
| Cap Screws (Size) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 1/4-20 x 1 3/8 |
| Length Through Bore (in) | 1.2 in |
| Bushing Type | SH |
| Mounting Type | Conventional |
| Cap Screws (No.) | 3 |
| Torque Capacity (in-lb) | 3, 500 |
| Wrench Torque (ft.-lbs.) | 9 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104020 |
| Part NumberiManufacturer catalog number | 1077668 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
