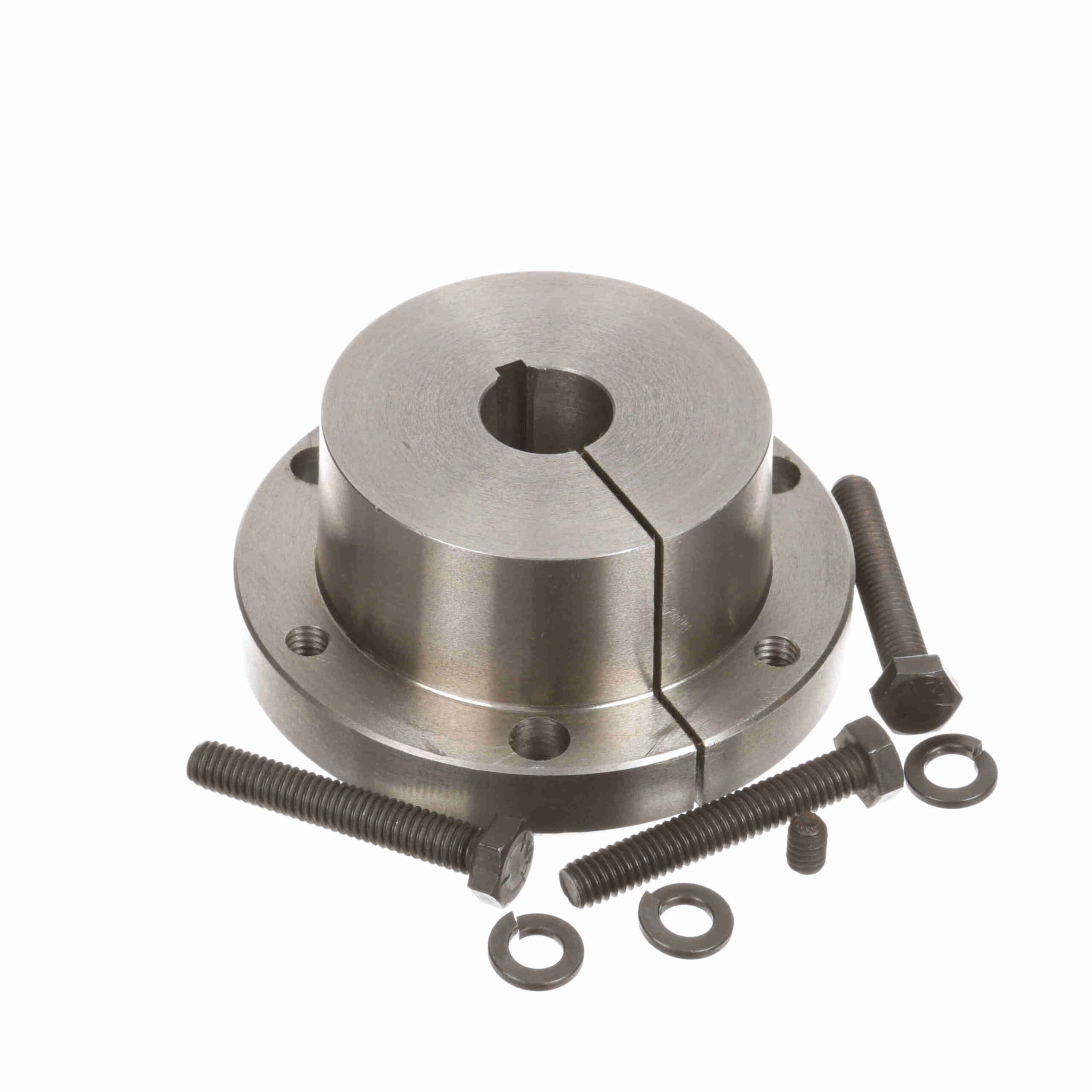

Browning Q-D Bushing - Inch Bore Type - SK 13/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1077783 |
| Product Name | SK 13/16 |
| Brand | Browning |
| Weight | 3.9 lb |
| Package Length | 4.3 in |
| Package Width | 4.3 in |
| Package Height | 2.5 in |
| Cap Screws (No.) | 3 |
| Length Through Bore (in) | 1.75 in |
| Wrench Torque (ft.-lbs.) | 15 |
| Mounting Type | Conventional |
| Bore Type | Inch |
| Keyway |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 3/16 x 3/32 |
| Cap Screws (Size) | 5/16-18 x 2 |
| Cap Screws (Bolt Circle) | 3.3125 |
| Bushing Type | SK |
| Compatible Bore Size [Max] (in) | 0.8125 in |
| Outside Diameter (in) | 3.875 in |
| Total Length (in) | 1.75 in |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104031 |
| Part NumberiManufacturer catalog number | 1077783 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
