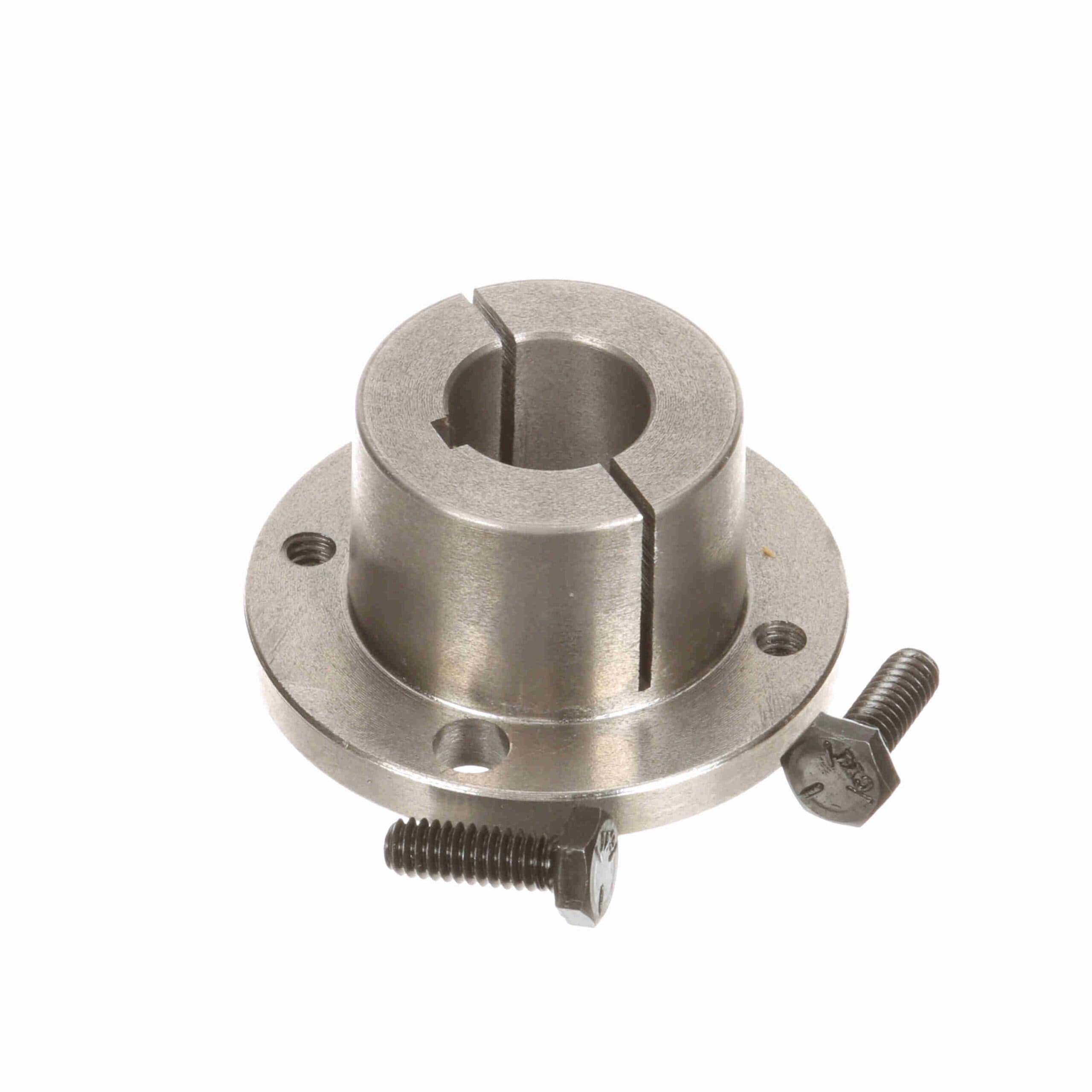

Browning Split Taper Bushing - Inch Bore Type - H 13/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1078294 |
| Product Name | H 13/16 |
| Brand | Browning |
| Material | Sintered Steel or Ductile Iron |
| Weight | 0.72 lb |
| Package Length | 2.6 in |
| Package Width | 2.7 in |
| Package Height | 1.5 in |
| Wrench Torque (in-lb) | 95 |
| Bushing Type | H |
| Keyseat | 3/16 x 3/32 |
| Bore Size (in) | 0.8125 in |
| Length Through Bore (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 1.25 in |
| Outside Diameter (in) | 2.5 in |
| Total Length (in) | 1.25 in |
| Product Type | Split Taper Bushing |
| Cap Screws (Size) | 1/4 x 3/4 |
| Compatible Bore Size [Max] (in) | 0.8125 in |
| Cap Screws (No.) | 2 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104072 |
| Part NumberiManufacturer catalog number | 1078294 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
