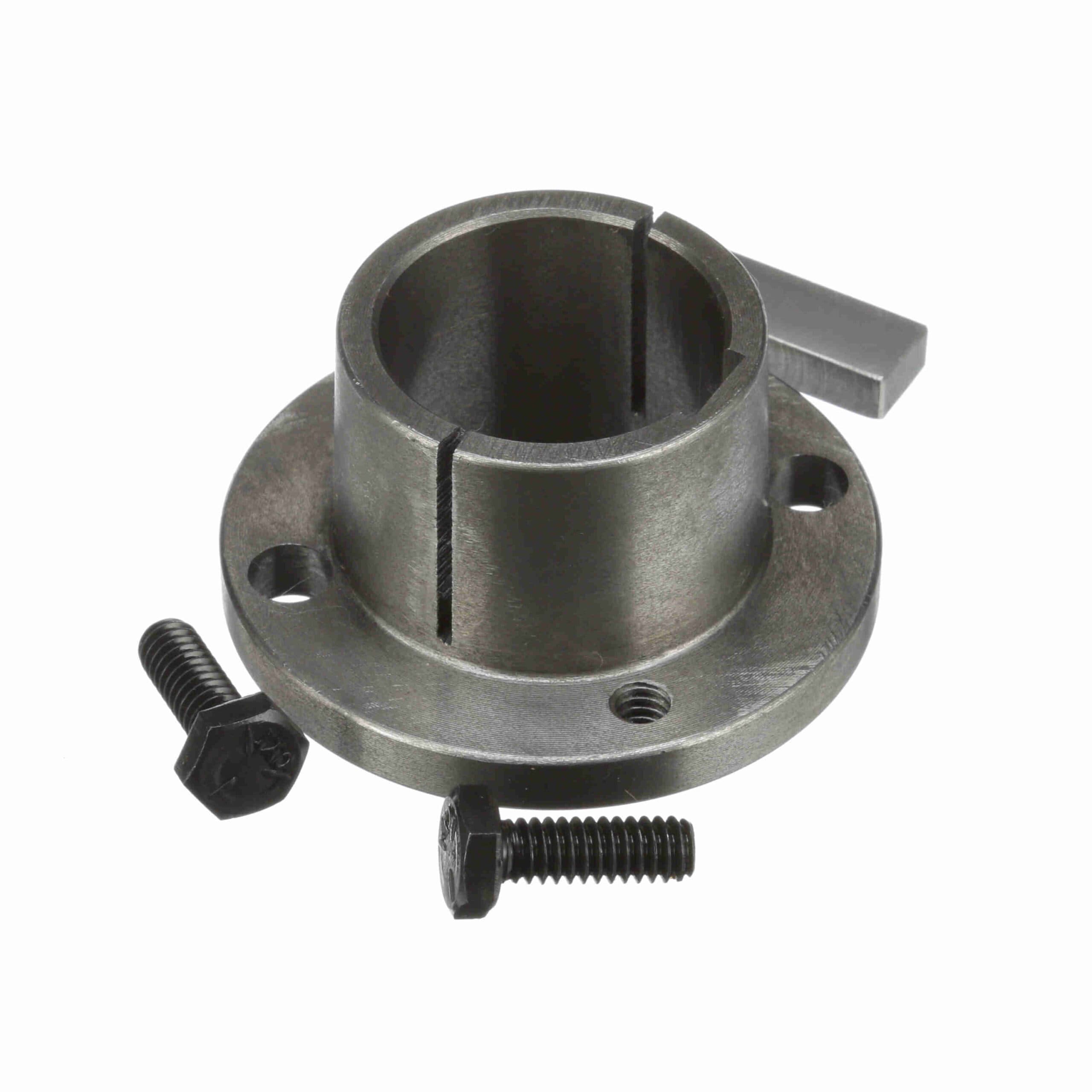

Browning Split Taper Bushing - Metric Bore Type - H 32 MM
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1078575 |
| Product Name | H 32 MM |
| Brand | Browning |
| Material | Sintered Steel or Ductile Iron |
| Weight | 0.52 lb |
| Package Length | 2.7 in |
| Package Width | 2.8 in |
| Package Height | 1.5 in |
| Keyseat (mm) | 10 x 4 mm |
| Cap Screws (Size) | 1/4 x 3/4 |
| Compatible Bore Size [Max] (mm) | 32 mm |
| Outside Diameter (mm) | 63.5 mm |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Wrench Torque (in-lb) |
| 95 |
| Outside Diameter (in) | 2.5 in |
| Bushing Type | H |
| Total Length (mm) | 31.75 mm |
| Length Through Bore (mm) | 31.75 mm |
| Product Type | Split Taper Bushing |
| Bore Size (mm) | 32 mm |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104100 |
| Part NumberiManufacturer catalog number | 1078575 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
