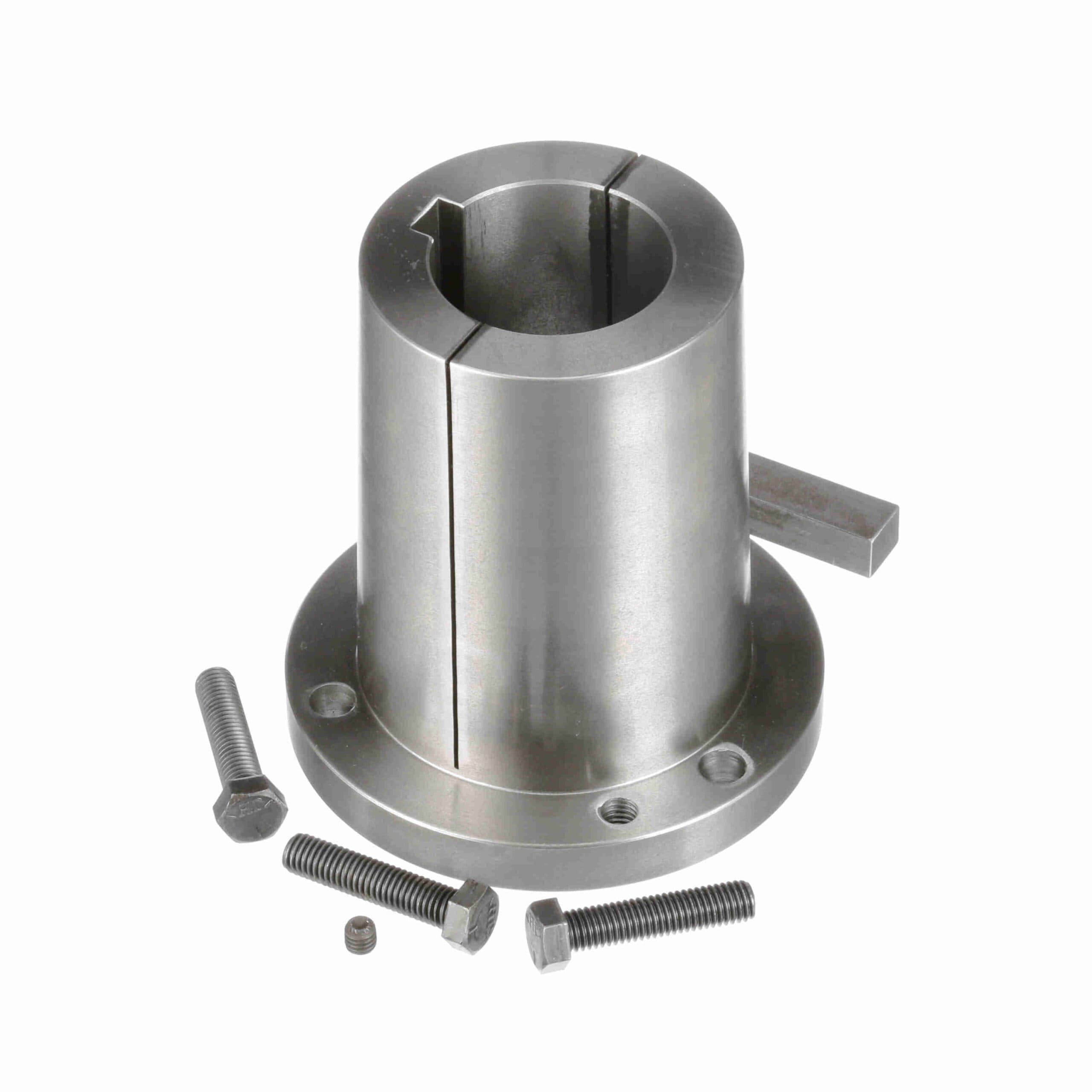

Browning Split Taper Bushing - Inch Bore Type - S2 2 11/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1080472 |
| Product Name | S2 2 11/16 |
| Brand | Browning |
| Material | Sintered Steel or Ductile Iron |
| Weight | 20.65 lb |
| Package Length | 7 in |
| Package Width | 7 in |
| Package Height | 7.3 in |
| Outside Diameter (in) | 6.375 in |
| Compatible Bore Size [Max] (in) | 2.6875 in |
| Wrench Torque (in-lb) | 840 |
| Bore Size (in) | 2.6875 in |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Bushing Type |
| S2 |
| Total Length (in) | 6.75 in |
| Length Through Bore (in) | 6.75 in |
| Keyseat | 5/8 x 5/16 |
| Product Type | Split Taper Bushing |
| Cap Screws (Size) | 1/2 x 2 1/4 |
| Bore Type | Inch |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104253 |
| Part NumberiManufacturer catalog number | 1080472 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
