GRIPBELTS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1082023 |

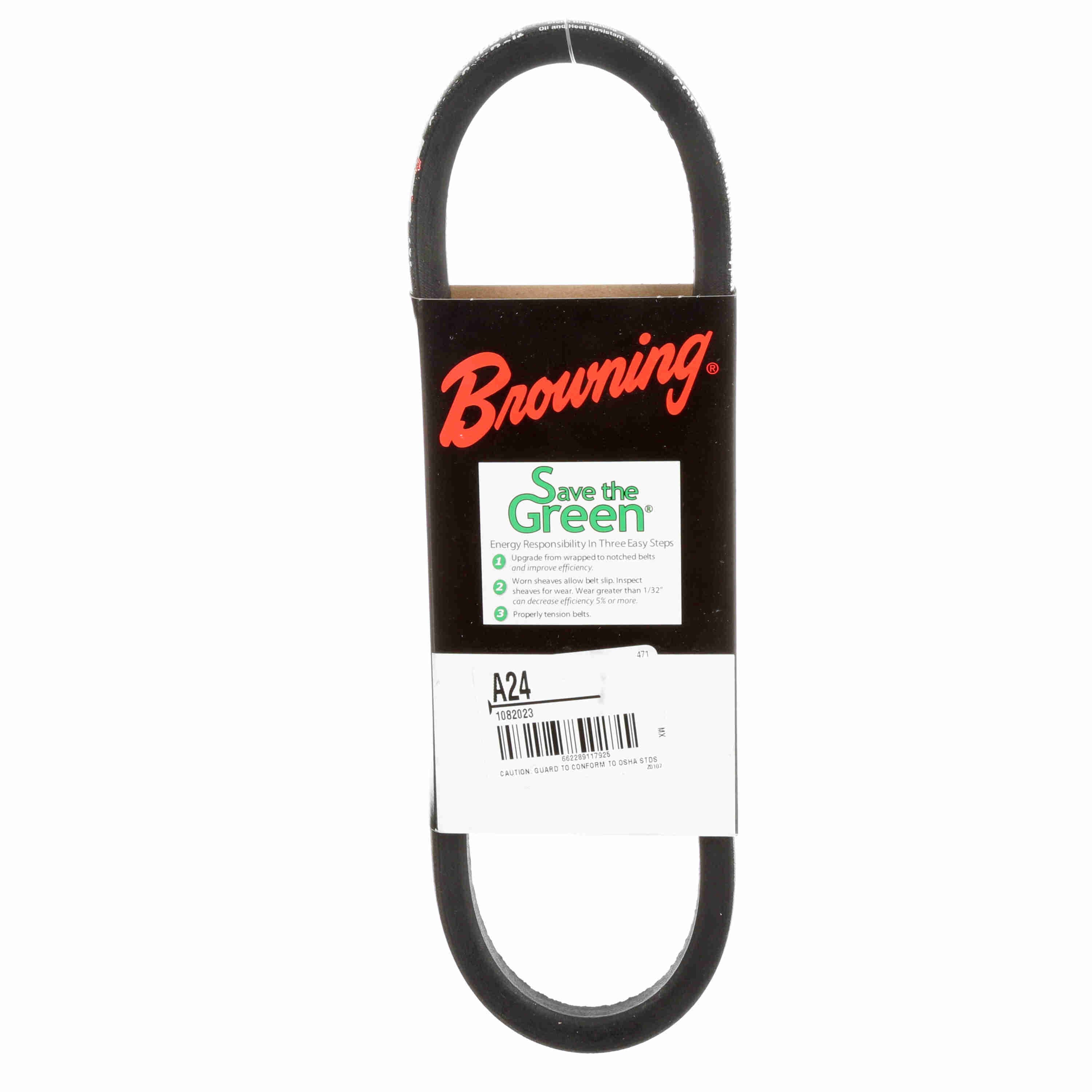

| Product Name | A24 |
| Brand | Browning |
| Material | Neoprene |
| Weight | 0.2 lb |
| Package Length | 3.45 in |
| Package Width | 11.25 in |
| Package Height | 0.85 in |
| Type | Super Gripbelt V-Belts |
| Pitch Length | 25.3 |
| Belt Section | A |
| Height | 0.34 |
| Outside Length/Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $20.25 | — |
| 26.22 in |
| Width (in) | 0.54 in |
| Operating Temperature [Max] ºC | 60 °C |
| Outside Diameter (in) | 26.22 in |
| Product Type | Wrapped Belt |
| Operating Temperature [Max] ºF | 140 °F |
| Efficiency (%) | 0.95 |
| Section Size | A |
| Reinforcing cord material | Polyester |
| Number of Ribs | 1 |
| Standards met | ARPM IP-20 |
| Belt Series | Classical Series - Inch |
| Construction Type | Wrapped |
| Operating Temperature Range | -32 to +140 °F |
| Resistance Features | Oil & Chemical per ARPM IP-3-2, Static Dissipating per ARPM IP-3-3 |
| HTC | 4010.32.3000 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104299 |
| Part NumberiManufacturer catalog number | 1082023 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289117925 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
