GRIPBELTS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1083419 |

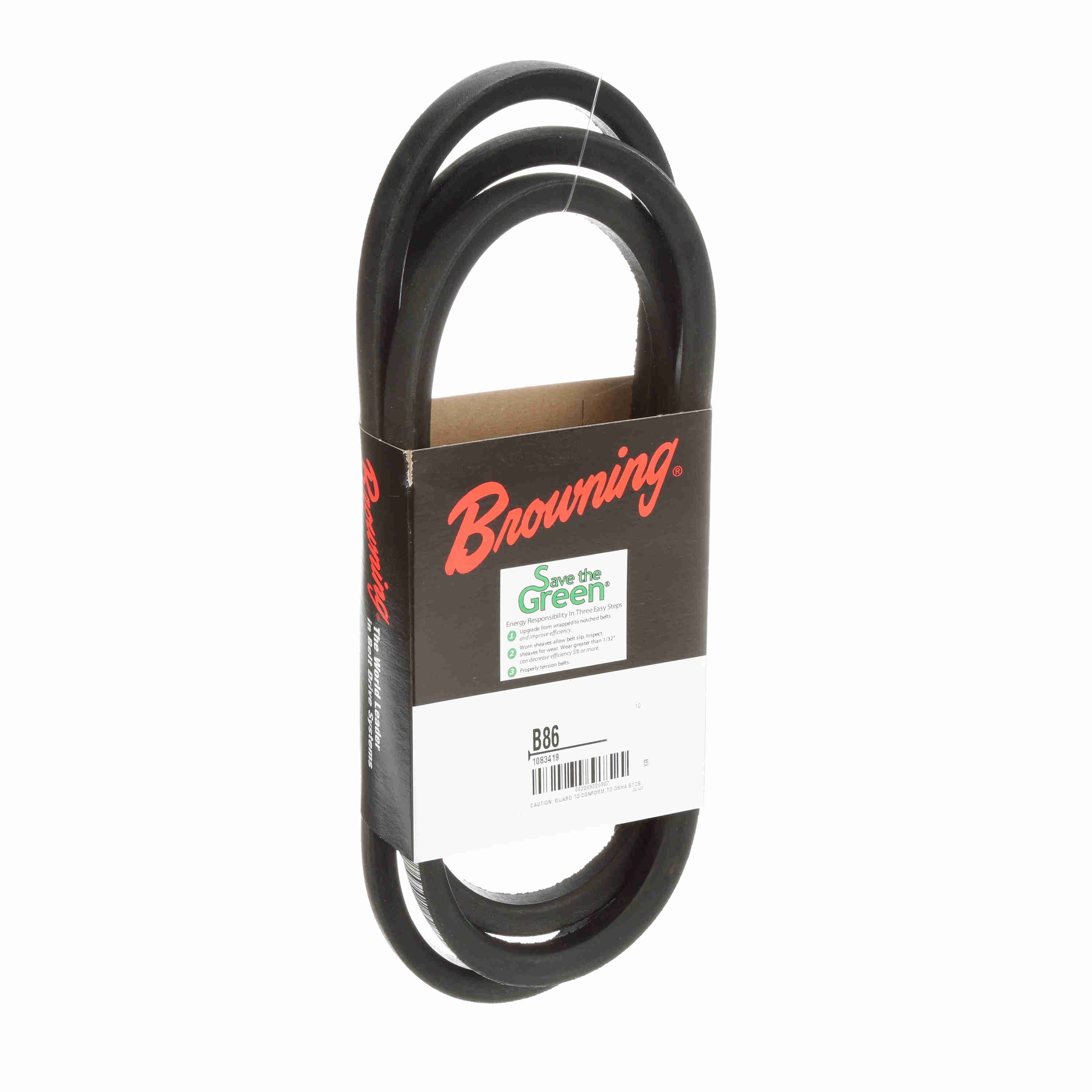

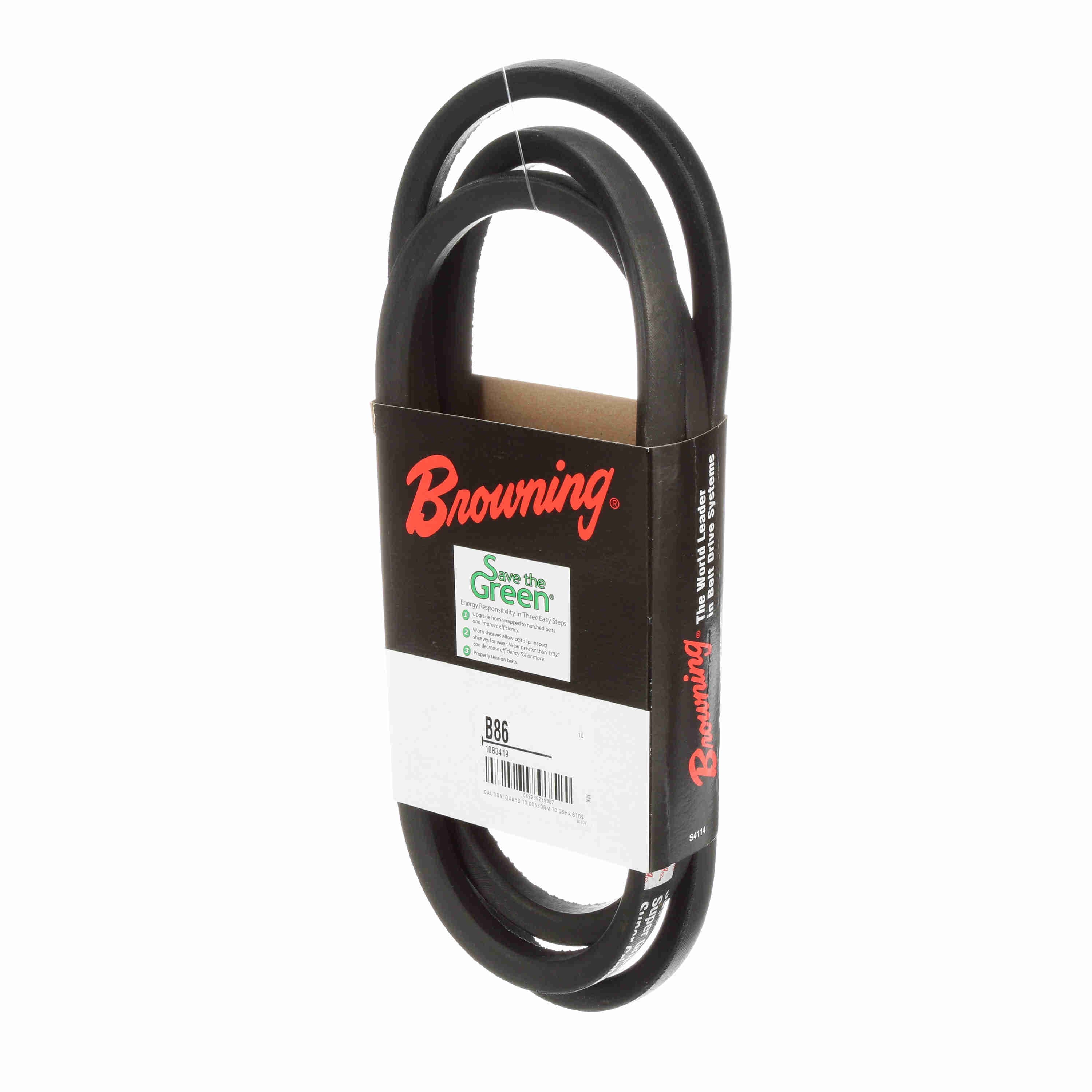

| Product Name | B86 |
| Brand | Browning |
| Material | Neoprene |
| Weight | 1.01 lb |
| Package Length | 5.6 in |
| Package Width | 13.1 in |
| Package Height | 1.85 in |
| Belt Section | B |
| Type | Super Gripbelt V-Belts |
| Pitch Length | 87.8 |
| Height | 0.4375 |
| Operating Temperature [Max] ºC |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $64.97 | — |
This product is a direct replacement for the following discontinued part numbers. Customers searching for these legacy SKUs will find this page.
| 60 °C |
| Width (in) | 0.65625 in |
| Operating Temperature [Max] ºF | 140 °F |
| Efficiency (%) | 0.95 |
| Outside Length/Diameter (in) | 89 in |
| Product Type | Wrapped Belt |
| Outside Diameter (in) | 89 in |
| Reinforcing cord material | Synthetic Fiber |
| Section Size | B |
| Belt Series | Gripbelt |
| Construction Type | Classic |
| Band Type | Belt with Ends Joined |
| Standards met | MPTA IP-20;RMA |
| HTC | 4010.34.3000 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104437 |
| Part NumberiManufacturer catalog number | 1083419 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289229307 |
| CategoryiCatalog classification | Belts |
