GRIPBELTS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1083765 |

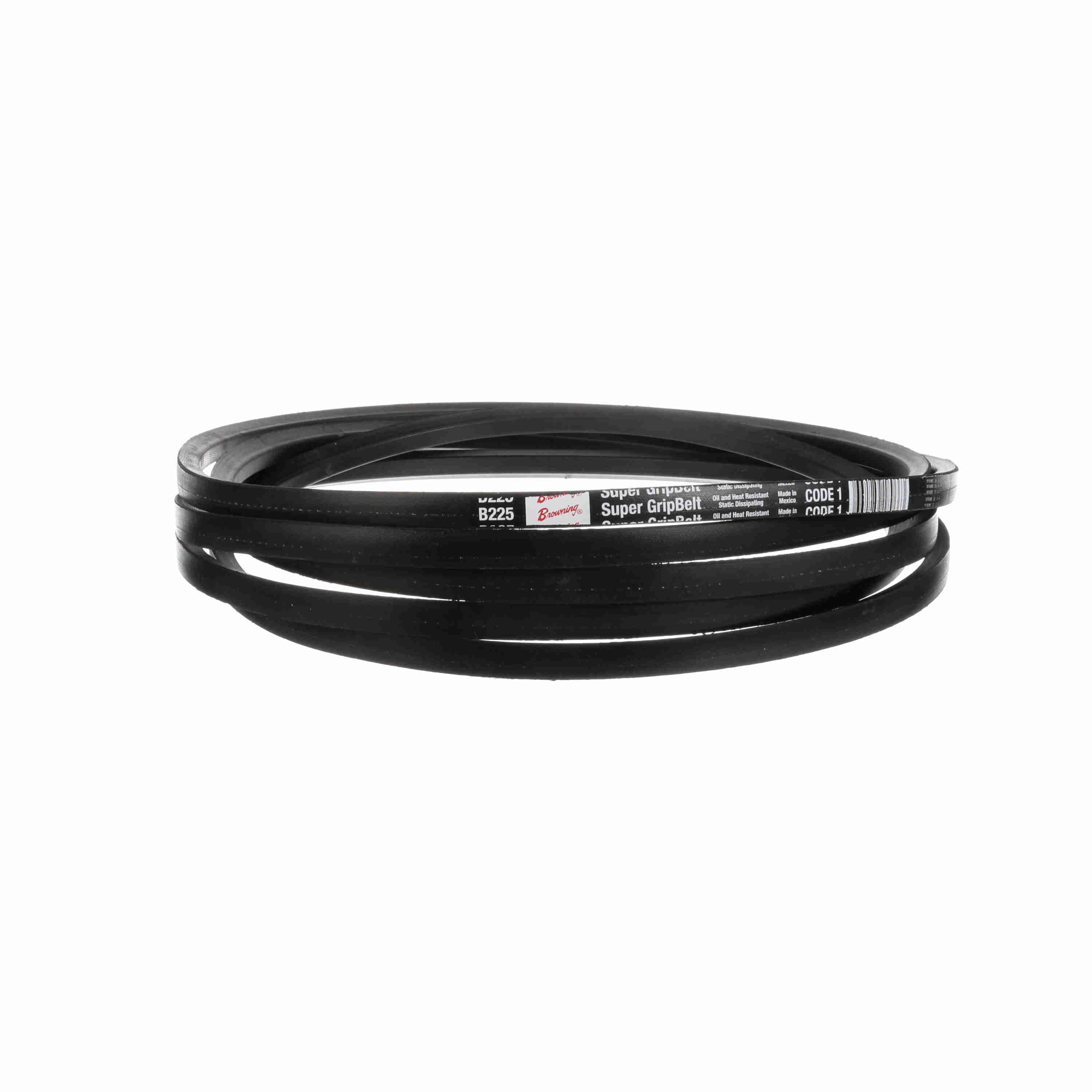

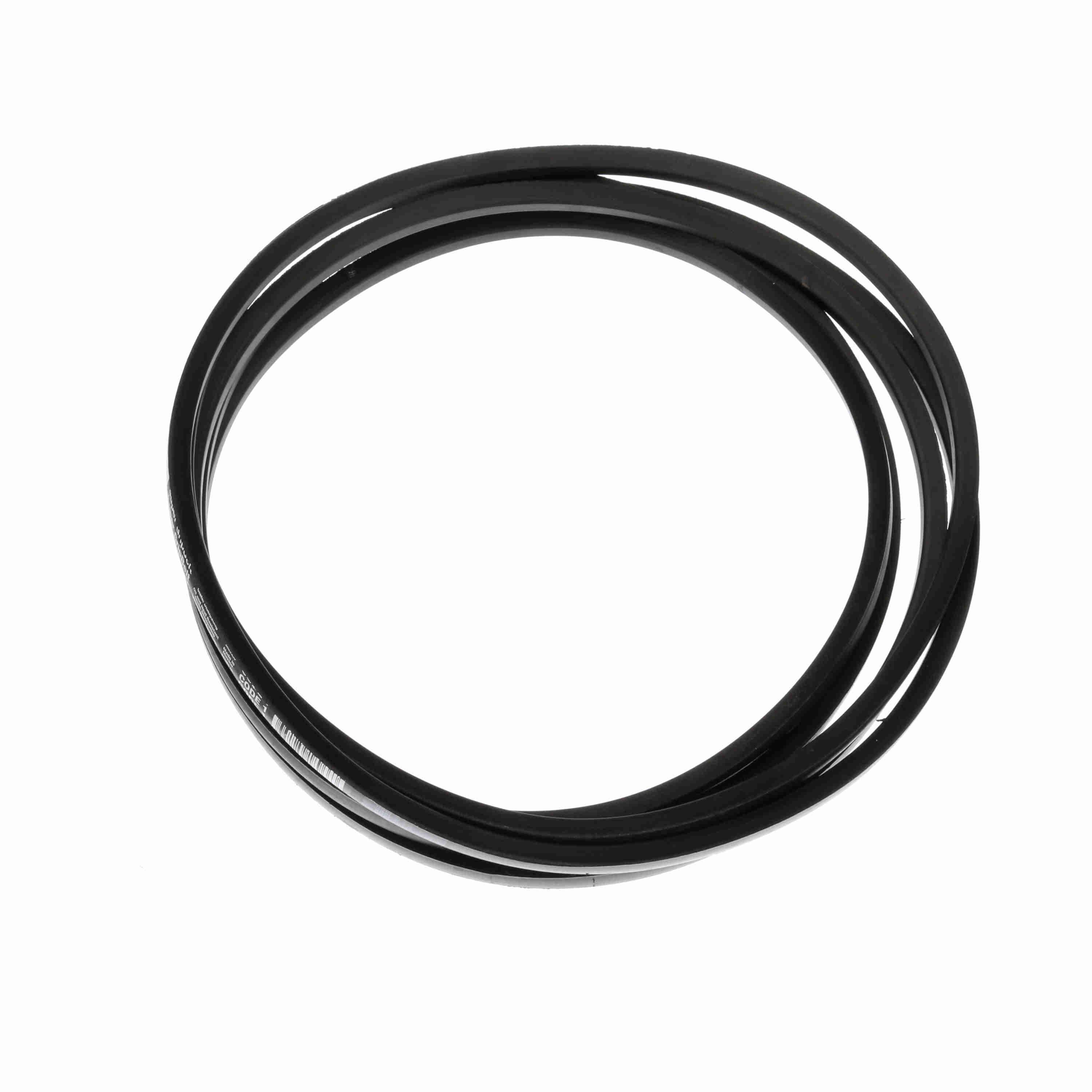

| Product Name | B225 |
| Brand | Browning |
| Material | Neoprene |
| Weight | 2.43 lb |
| Package Length | 12.5 in |
| Package Width | 12.45 in |
| Package Height | 2.65 in |
| Pitch Length | 225.3 |
| Belt Section | B |
| Height | 0.4375 |
| Type | Super Gripbelt V-Belts |
| Operating Temperature [Max] ºF |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $199.84 | — |
| 140 °F |
| Outside Diameter (in) | 226.5 in |
| Operating Temperature [Max] ºC | 60 °C |
| Product Type | Wrapped Belt |
| Width (in) | 0.65625 in |
| Outside Length/Diameter (in) | 226.5 in |
| Efficiency (%) | 0.95 |
| Construction Type | Classic |
| Standards met | MPTA IP-20;RMA |
| Section Size | B |
| Reinforcing cord material | Synthetic Fiber |
| Belt Series | Gripbelt |
| Band Type | Belt with Ends Joined |
| HTC | 4010.39.1000 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104472 |
| Part NumberiManufacturer catalog number | 1083765 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289189663 |
| CategoryiCatalog classification | Belts |
