GRIPNOTCH BELTS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

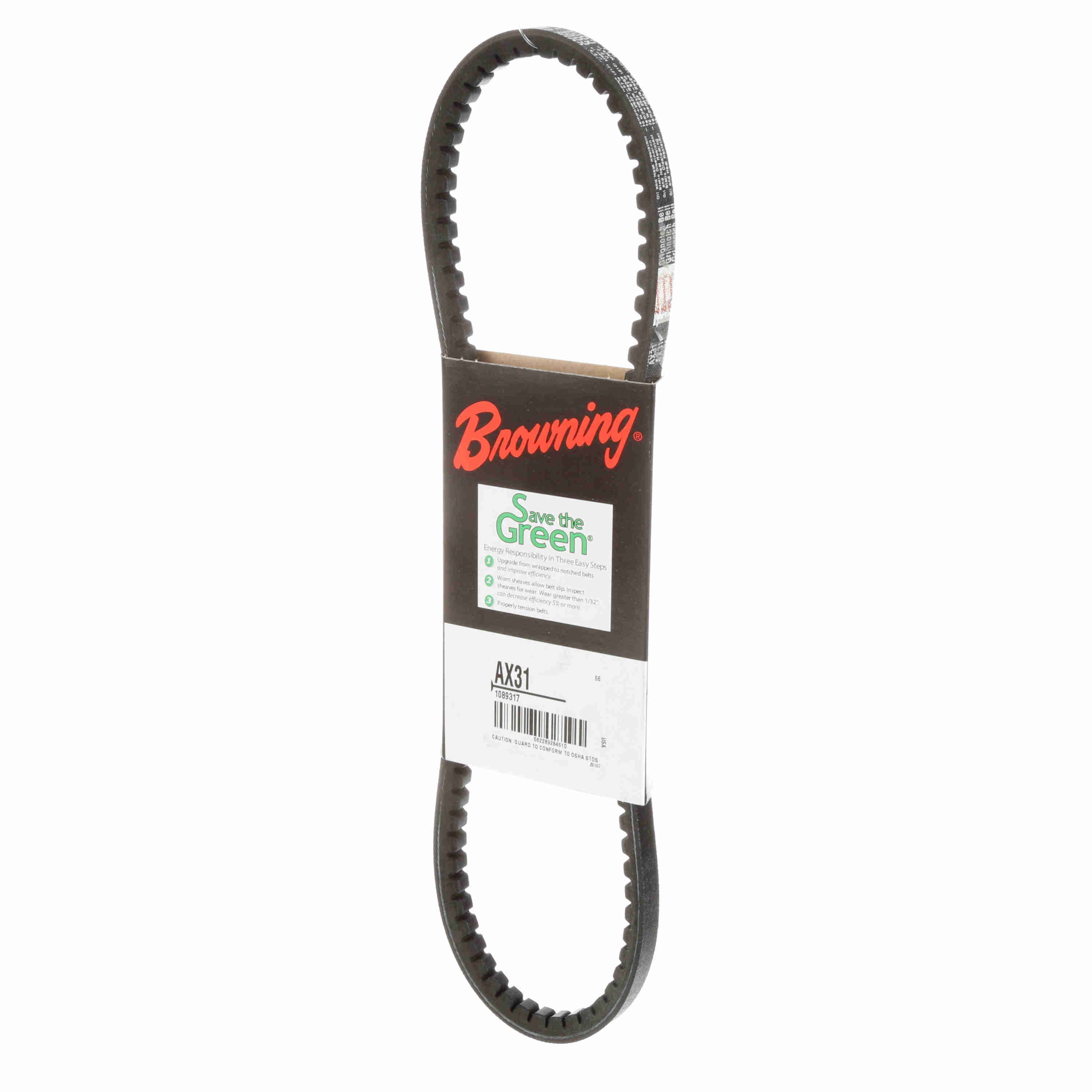

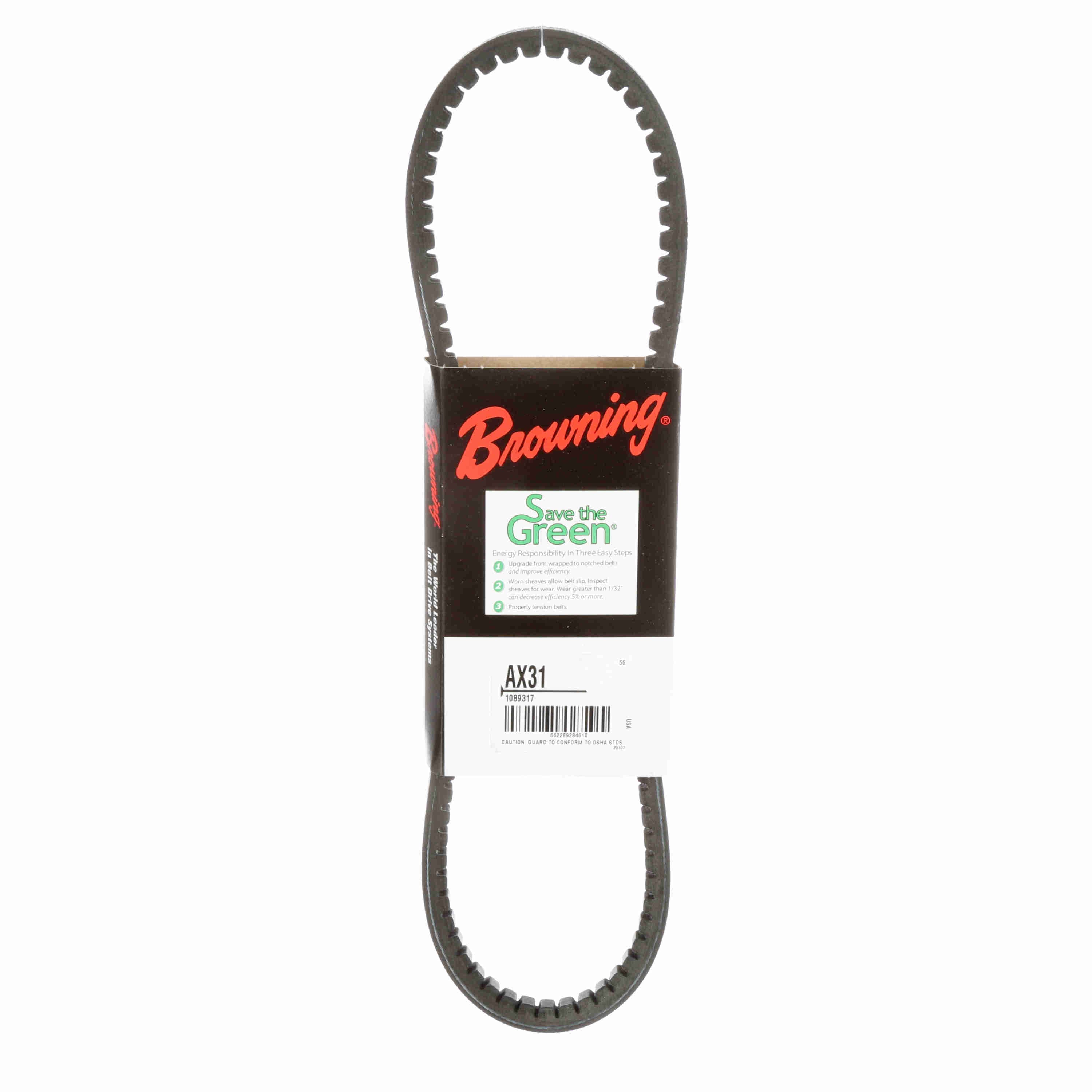

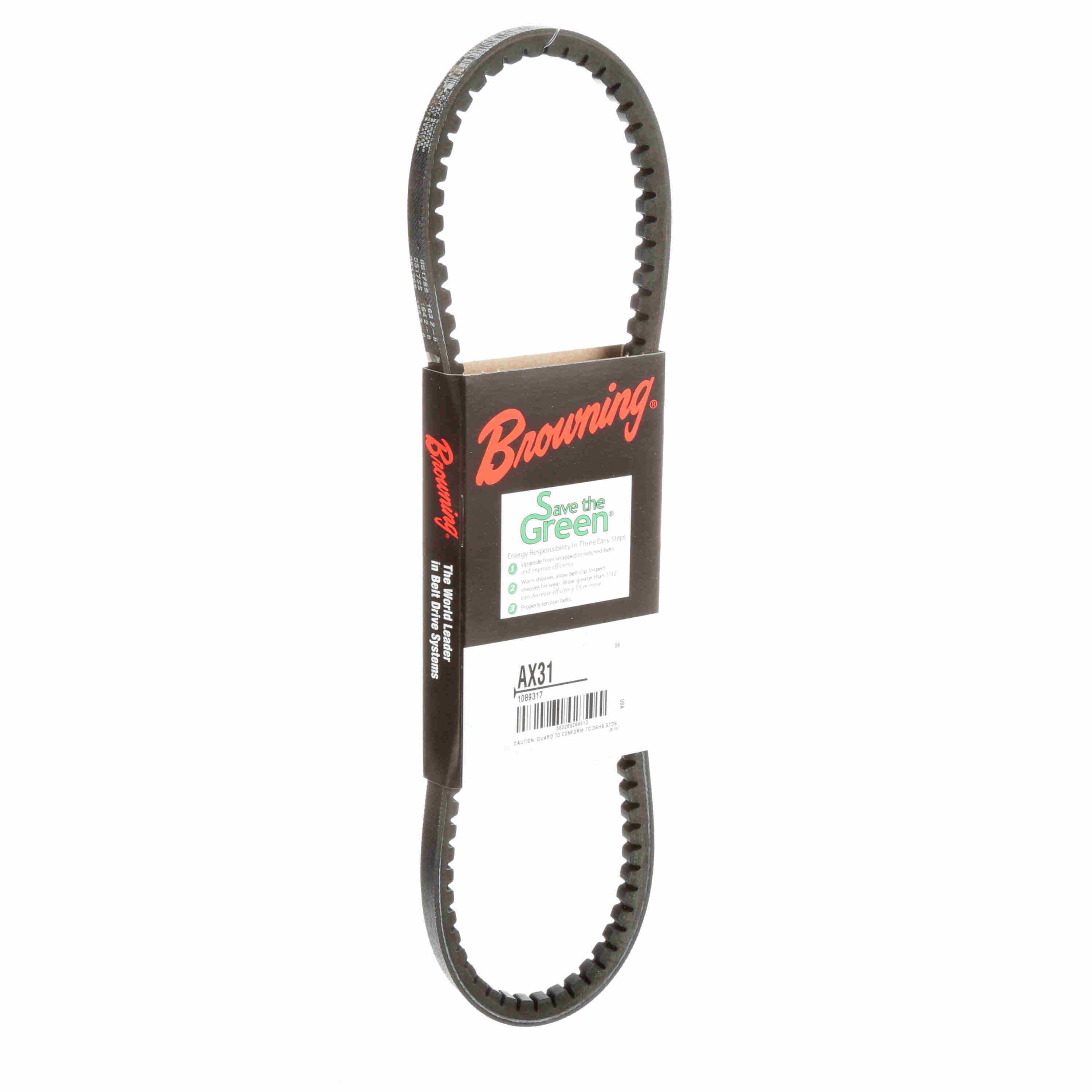

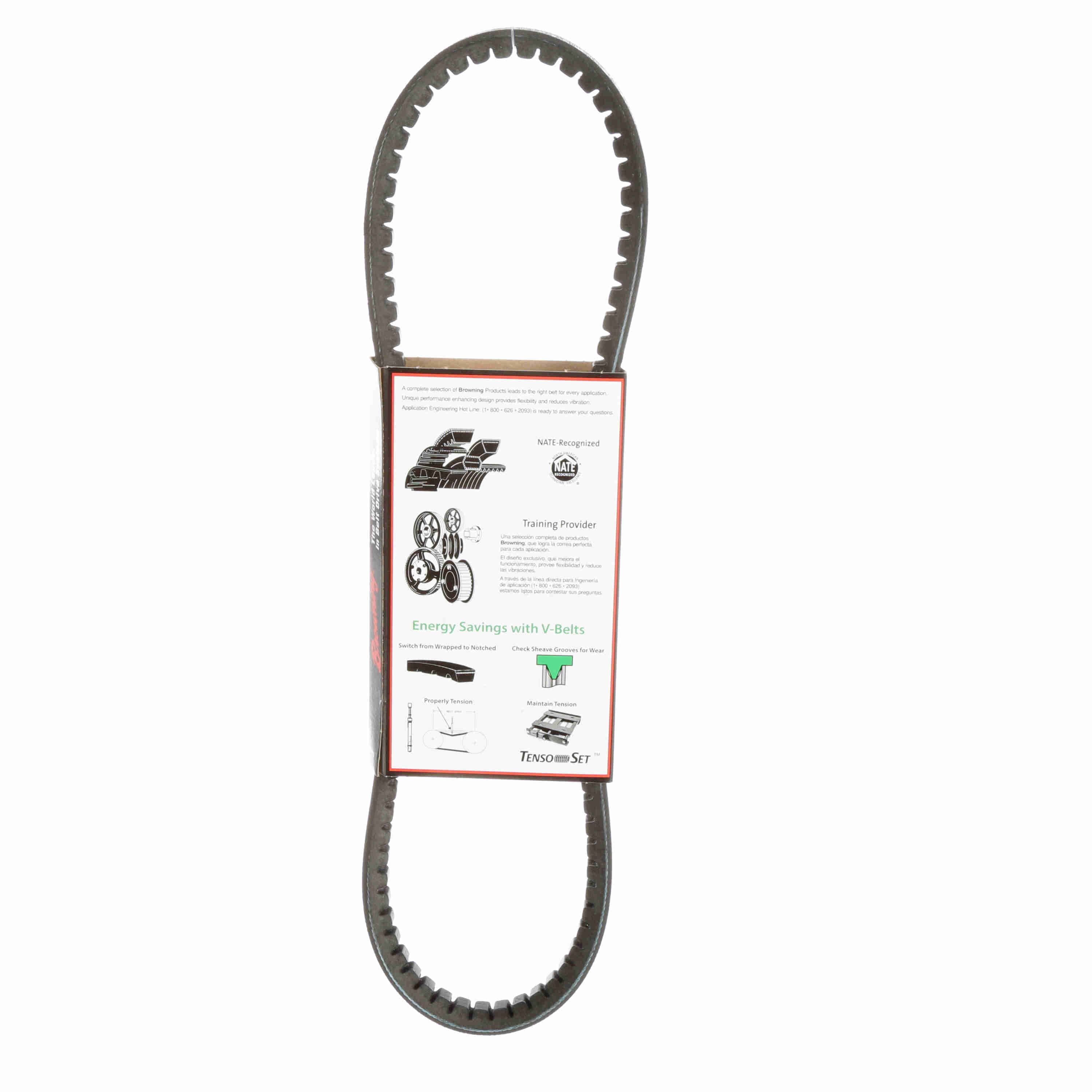

| Part Number | 1089317 |
| Product Name | AX31 |
| Brand | Browning |
| Material | EPDM |
| Weight | 0.19 lb |
| Package Length | 3.65 in |
| Package Width | 14.6 in |
| Package Height | 0.7 in |
| Type | TorqTitan Notched V-Belts |
| Belt Section | AX |
| Pitch Length | 32.3 |
| Outside Length/Diameter (in) | 33.2 in |
| Outside Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $27.24 | — |
| 33.2 in |
| Efficiency (%) | 0.98 |
| Operating Temperature [Max] ºF | 251 °F |
| Product Type | Notched Belt |
| Operating Temperature [Max] ºC | 120 °C |
| Width (in) | 0.5 in |
| Reinforcing cord material | Polyester |
| Height | 0.31 |
| Number of Ribs | 1 |
| Construction Type | Cogged |
| Belt Series | TorqTitan |
| Section Size | AX |
| Resistance Features | Oil & Chemical per ARPM IP-3-2, Static Dissipating per ISO1813 |
| Operating Temperature Range | -40 to +251 °F |
| HTC | 4010.32.3000 |
| Country of Origin | Romania |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104527 |
| Part NumberiManufacturer catalog number | 1089317 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289284610 |
| CategoryiCatalog classification | Belts |
