FHP BELTS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1093889 |

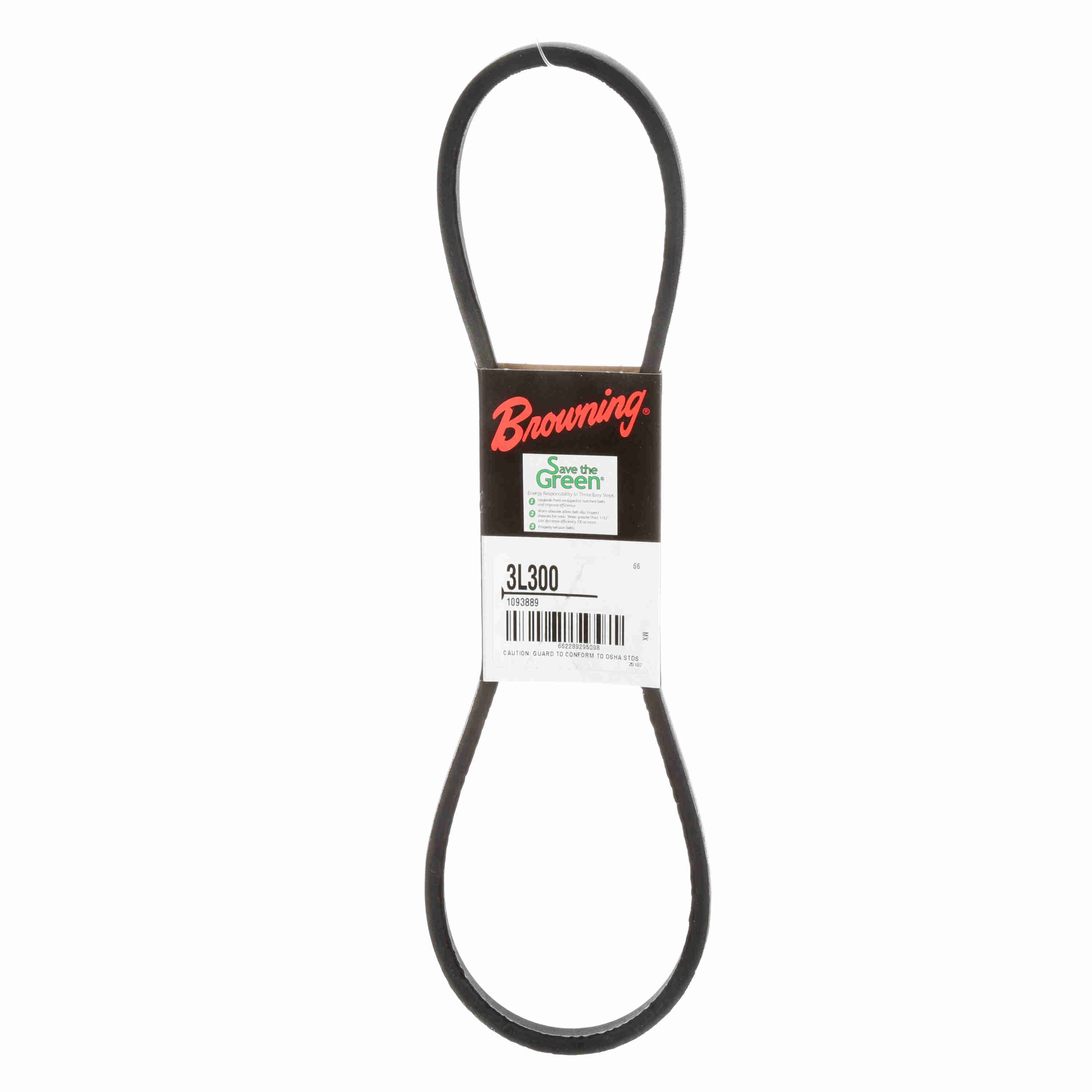

| Product Name | 3L300 |
| Brand | Browning |
| Material | Rubber |
| Weight | 0.12 lb |
| Package Length | 3.4 in |
| Package Width | 13.05 in |
| Package Height | 0.55 in |
| Pitch Length | 29.3 |
| Belt Section | 3L |
| Color | Black |
| Construction Type | Wrapped |
| Belt Series |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $18.60 | — |
| FHP Belts |
| Reinforcing cord material | Polyester |
| Section Size | 3L |
| Standards met | ARPM IP-23 |
| Product Type | FHP Belt |
| Outside Length/Diameter (in) | 30 in |
| Overall Width (in) | 0.375 in |
| Operating Temperature [Max] ºF | 140 °F |
| Cross Section | 0.375 |
| Operating Temperature [Max] ºC | 60 °C |
| Width (in) | 0.375 in |
| Operating Temperature Range | -32 to +140 °F |
| Resistance Features | Oil & Chemical per ARPM IP-3-2, Static Dissipating per ARPM IP-3-3 |
| Part Height | 0.219 |
| HTC | 4010.32.3000 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104639 |
| Part NumberiManufacturer catalog number | 1093889 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289295098 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
