GEARBELTS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1097450 |

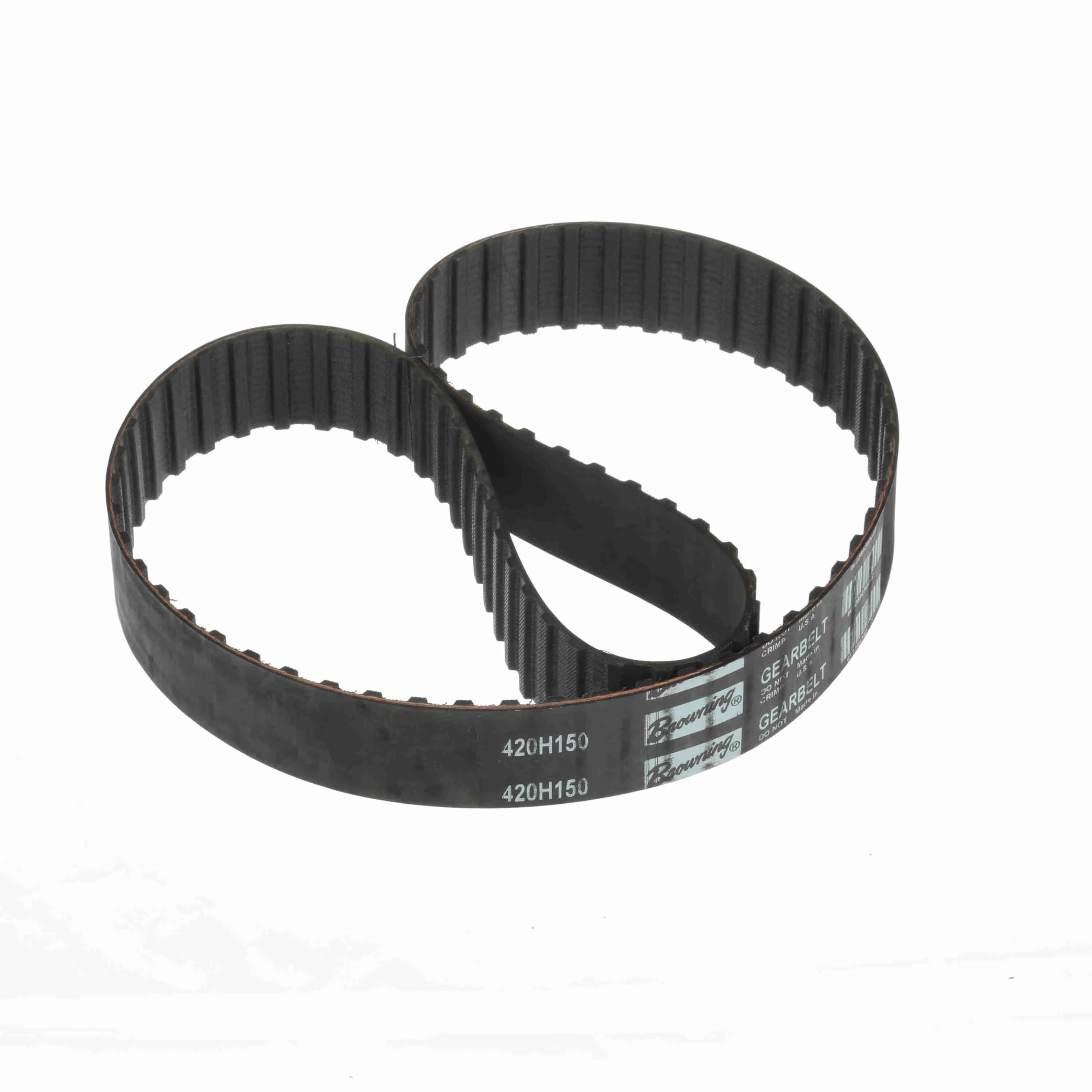

| Product Name | 420H150 |
| Brand | Browning |
| Material | Neoprene |
| Weight | 0.805 lb |
| Package Length | 5 in |
| Package Width | 9.45 in |
| Package Height | 2.05 in |
| Belt Section | H |
| Product Type | Gearbelt |
| Outside Length/Diameter (in) | 42 in |
| Std Package Quantity | 1 |
| Operating Temperature [Max] ºF |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $284.01 | — |
| 180 °F |
| Pitch Designation (mm) | 12.7 |
| Number of teeth | 84 |
| Operating Temperature [Max] ºC | 82.2 °C |
| Standards met | ARPM IP-24 ISO19347:2135 |
| Tooth Profile | Trapezoidal |
| Resistance Features | Oil & Chemical Resistant per ARPM IP-3-2 |
| Number of toothed sides | 1 |
| HTC | 4010.35.4500 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104923 |
| Part NumberiManufacturer catalog number | 1097450 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289250042 |
| CategoryiCatalog classification | Belts |
