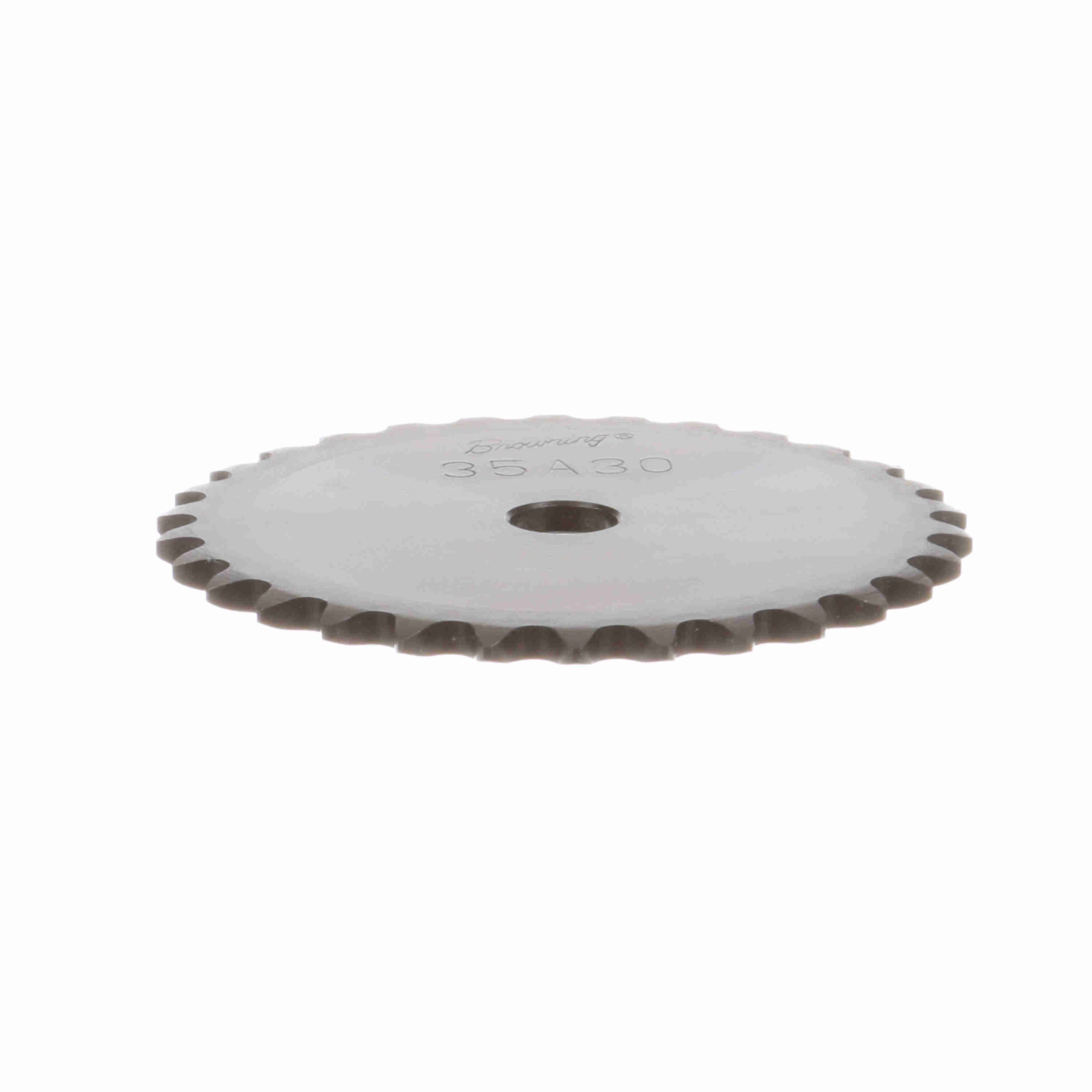

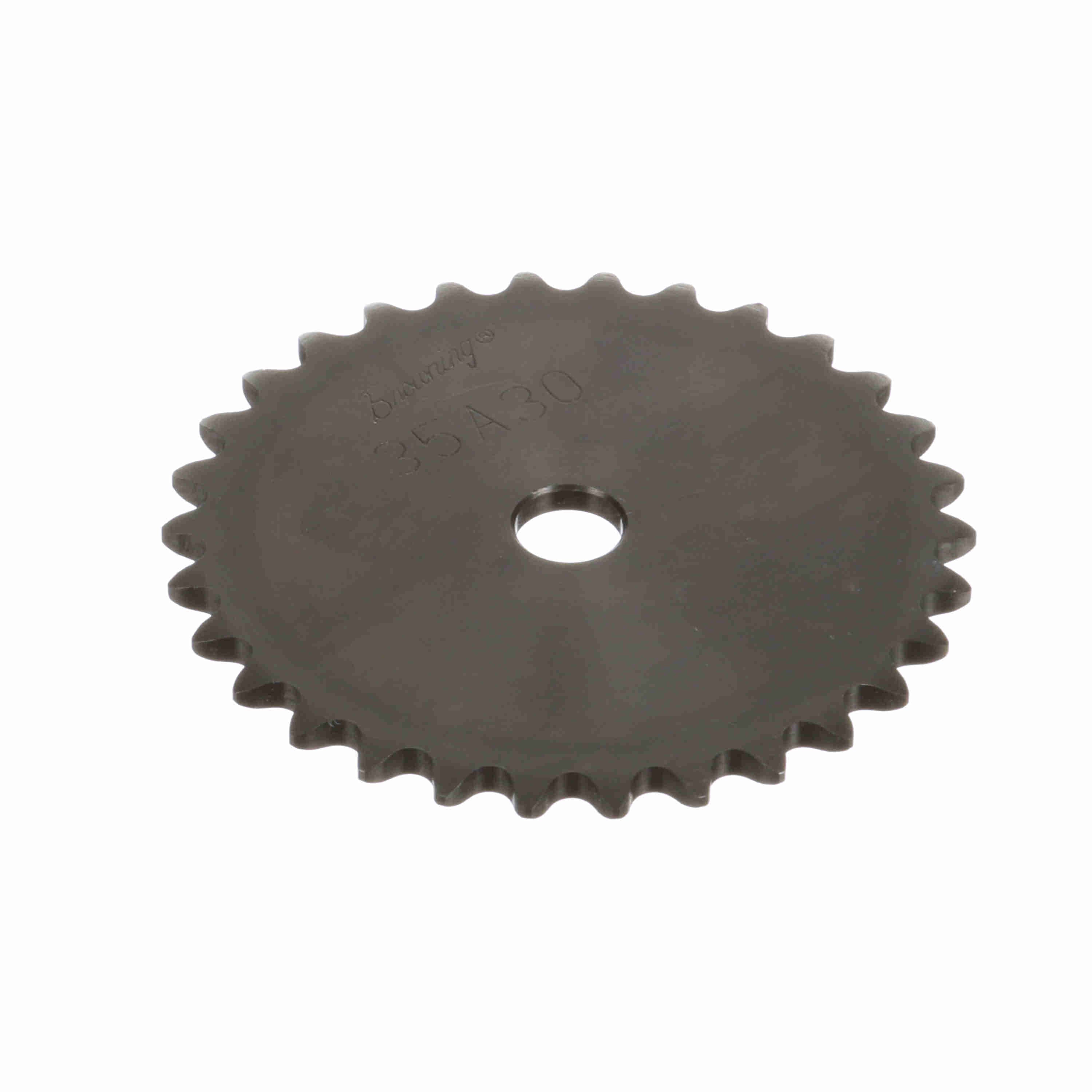

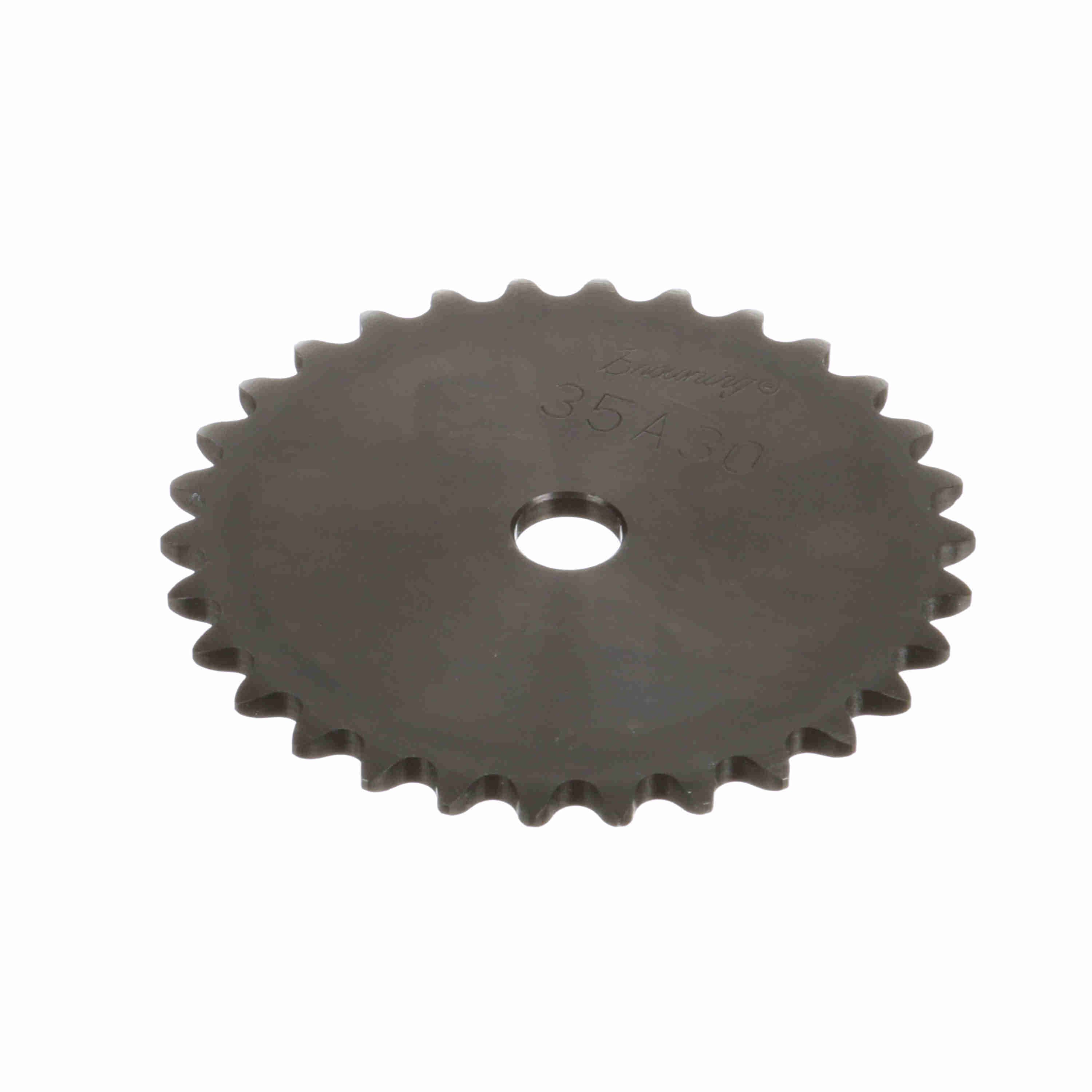

TYPE A SPROCKETS-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1107762 |
| Product Name | 35A30 |
| Brand | Browning |
| Material | Steel |
| Weight | 0.485 lb |
| Package Length | 4.1 in |
| Package Width | 3.9 in |
| Package Height | 0.7 in |
| Number of Teeth | 30 |
| Chain Used | No. 35, 3/8 in. Pitch ANSI Chain |
| Chain Pitch (in) | 0.375 in |
| Product Type | Type "A" Plate Sprocket |
| Outside Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $115.50 | — |
| 5 – 9 | $105.22 | 9% off |
| 10+ | $81.40 | 30% off |
| 3.793 in |
| Bore Type | Minimum Plain Bore |
| Pitch Diameter (in) | 3.58754 in |
| Number of Strands/Width | 1 |
| Bore Diameter (in) | 0.5 in |
| Length Through Bore (in) | 0.168 in |
| Tooth Width (in) | 0.168 in |
| Hub Type | Type A |
| Maximum Bore (in) | 2 in |
| Minimum Bore (mm) | 13 mm |
| Maximum Bore (mm) | 50 mm |
| Number of Hubs | 0 |
| Pitch Type | Single |
| Hardened Teeth | With Hardened Teeth |
| HTC | 8483.90.1050 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-105043 |
| Part NumberiManufacturer catalog number | 1107762 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289260492 |
| CategoryiCatalog classification | Power Transmission > Chain Accessories |
