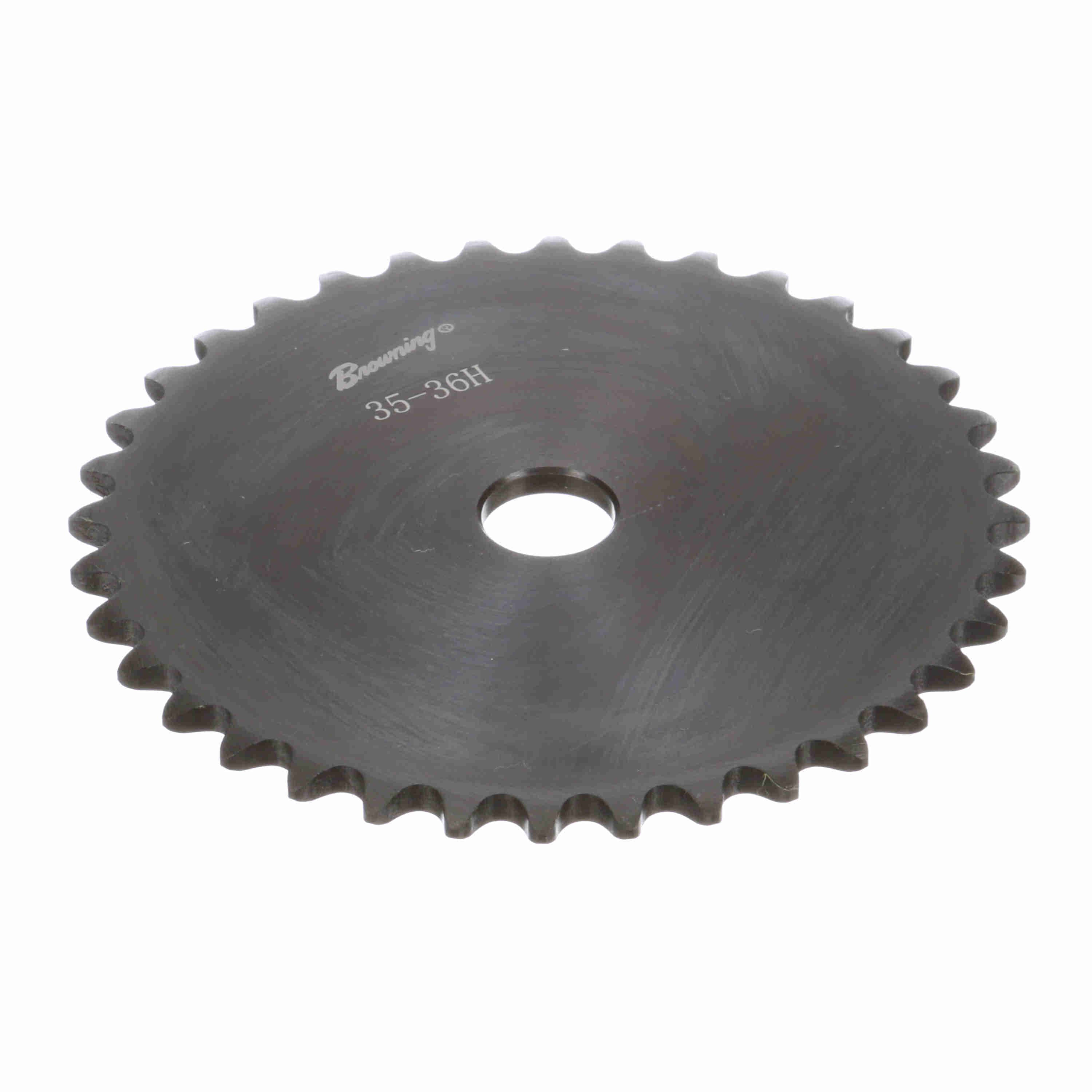

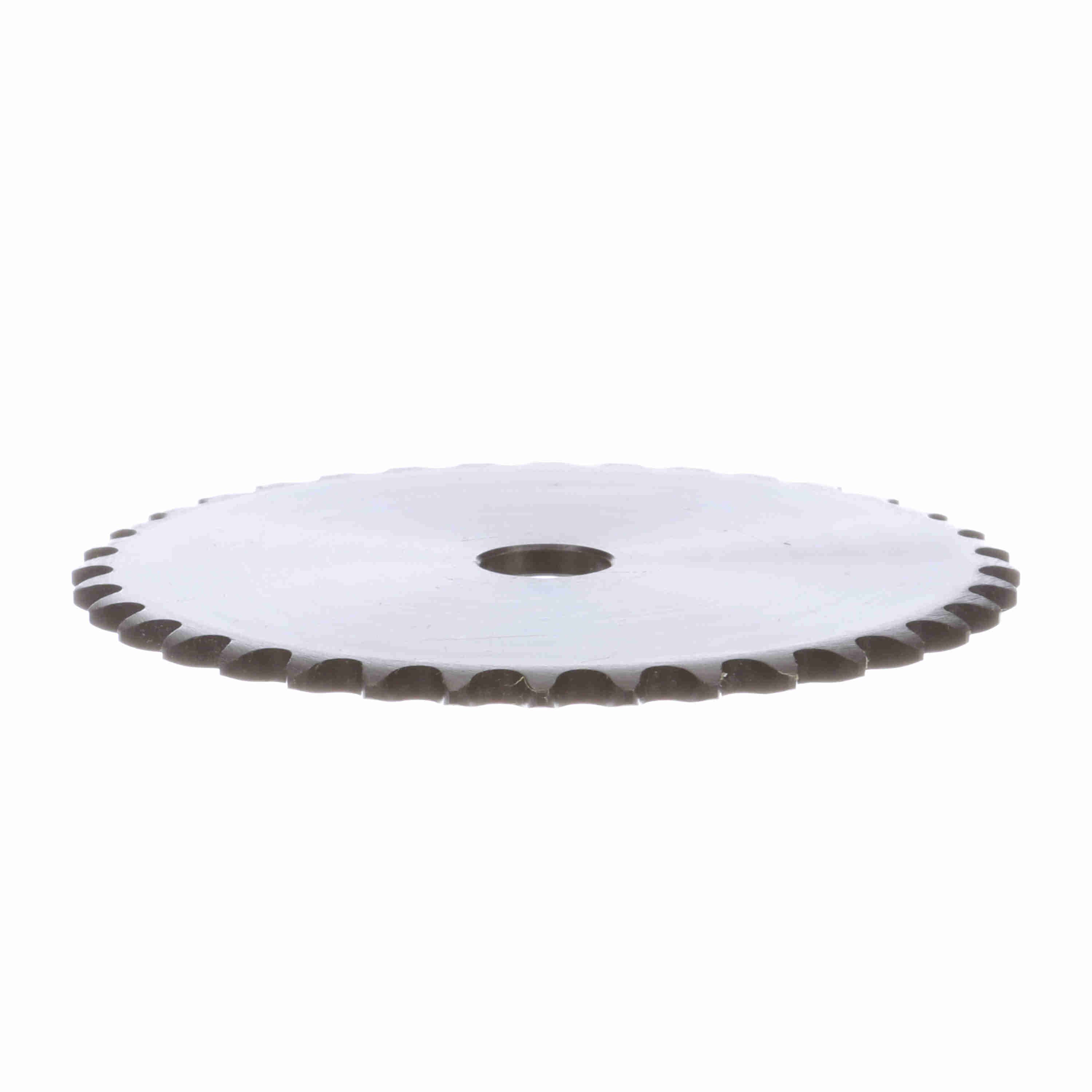

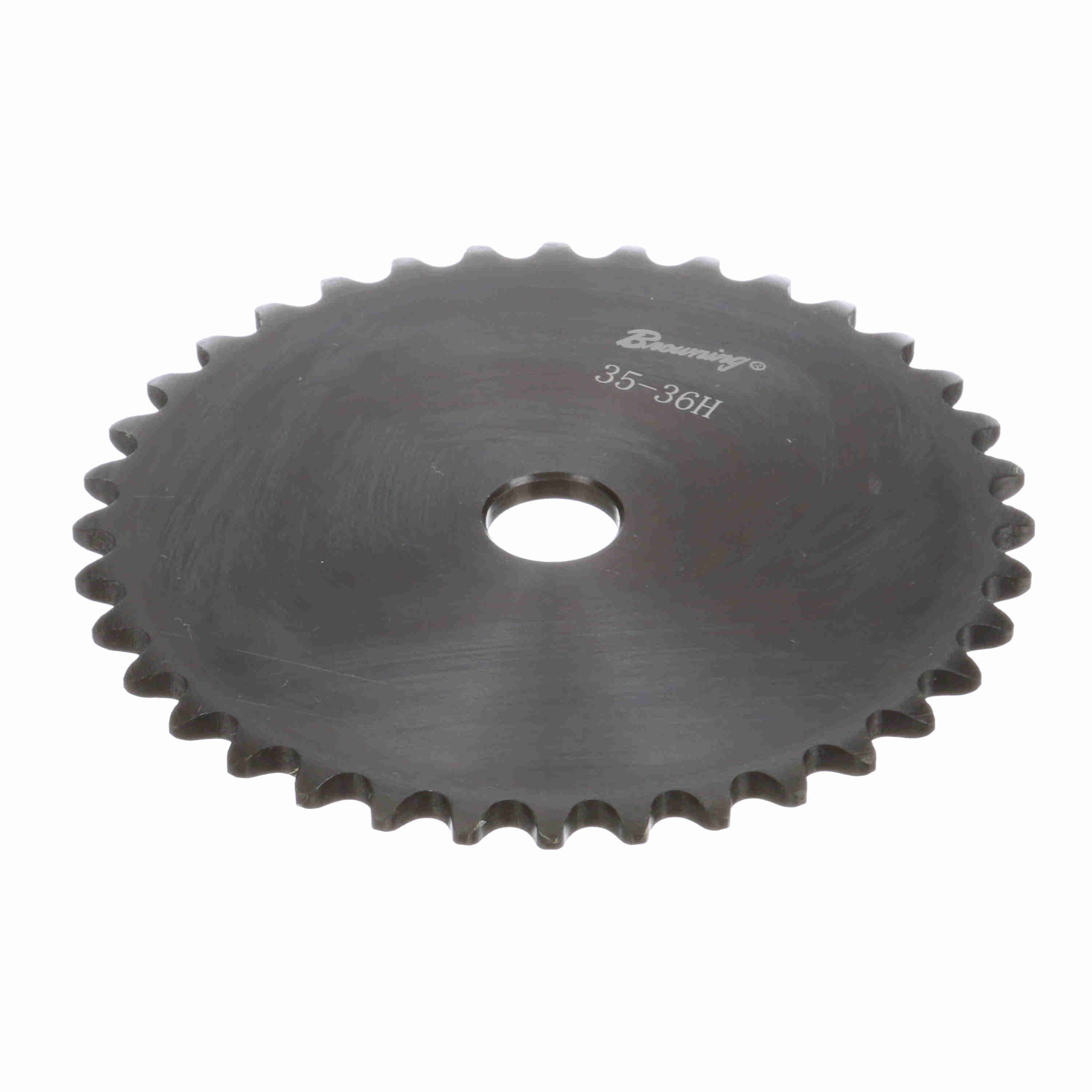

TYPE A SPROCKETS-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1107796 |
| Product Name | 35A36 |
| Brand | Browning |
| Material | Steel |
| Weight | 1.38 lb |
| Package Length | 5.1 in |
| Package Width | 4.9 in |
| Package Height | 1.3 in |
| Chain Pitch (in) | 0.375 in |
| Product Type | Type "A" Plate Sprocket |
| Chain Used | No. 35, 3/8 in. Pitch ANSI Chain |
| Number of Teeth | 36 |
| Tooth Width (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $119.32 | — |
| 5 – 9 | $108.70 | 9% off |
| 10+ | $84.09 | 30% off |
| 0.168 in |
| Overall Length (in) | 0.168 in |
| Bore Type | Minimum Plain Bore |
| Length Through Bore (in) | 0.169 in |
| Sprocket Material | Steel, Hardened Teeth |
| Outside Diameter (in) | 4.511 in |
| Hub Type | Type A |
| Chain Number | No. 35, 3/8 in. Pitch ANSI Chain |
| Pitch Diameter (in) | 4.302642 in |
| Bore Diameter (in) | 0.625 in |
| Number of Strands/Width | 1 |
| Maximum Bore (in) | 2 in |
| Maximum Bore (mm) | 50 mm |
| Minimum Bore (mm) | 16 mm |
| Number of Hubs | 0 |
| Hardened Teeth | With Hardened Teeth |
| HTC | 8483.90.1050 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-105045 |
| Part NumberiManufacturer catalog number | 1107796 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289210572 |
| CategoryiCatalog classification | Power Transmission > Chain Accessories |
