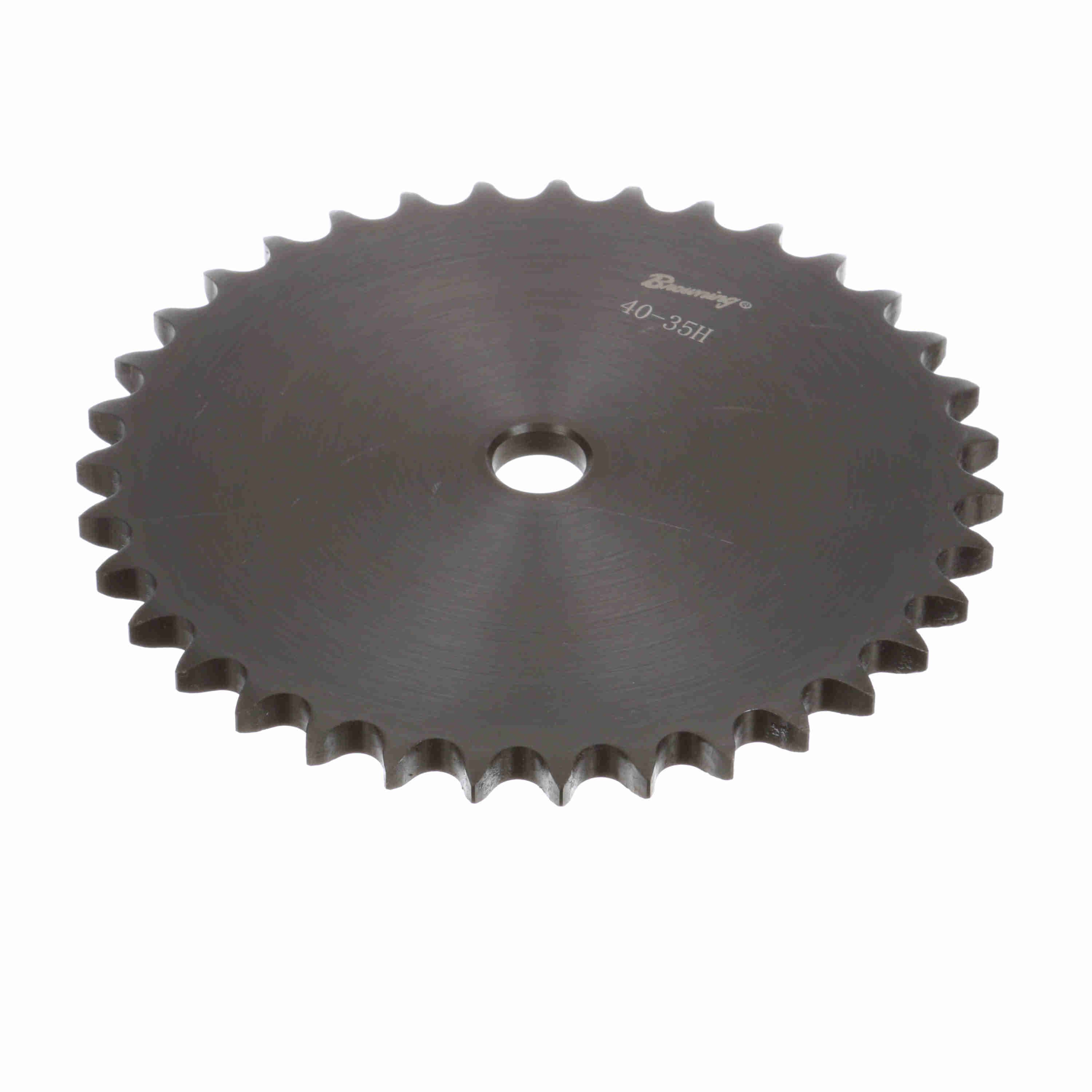

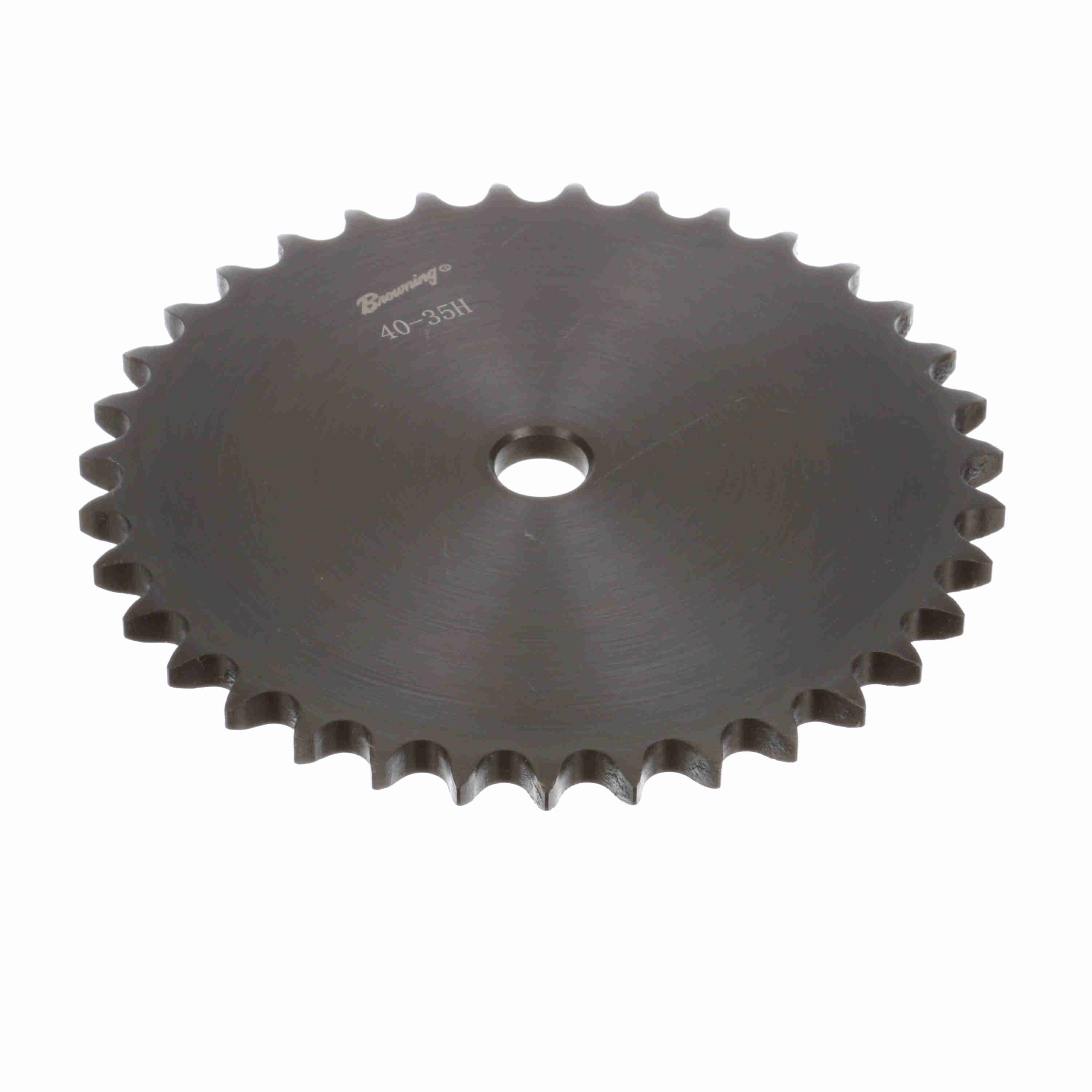

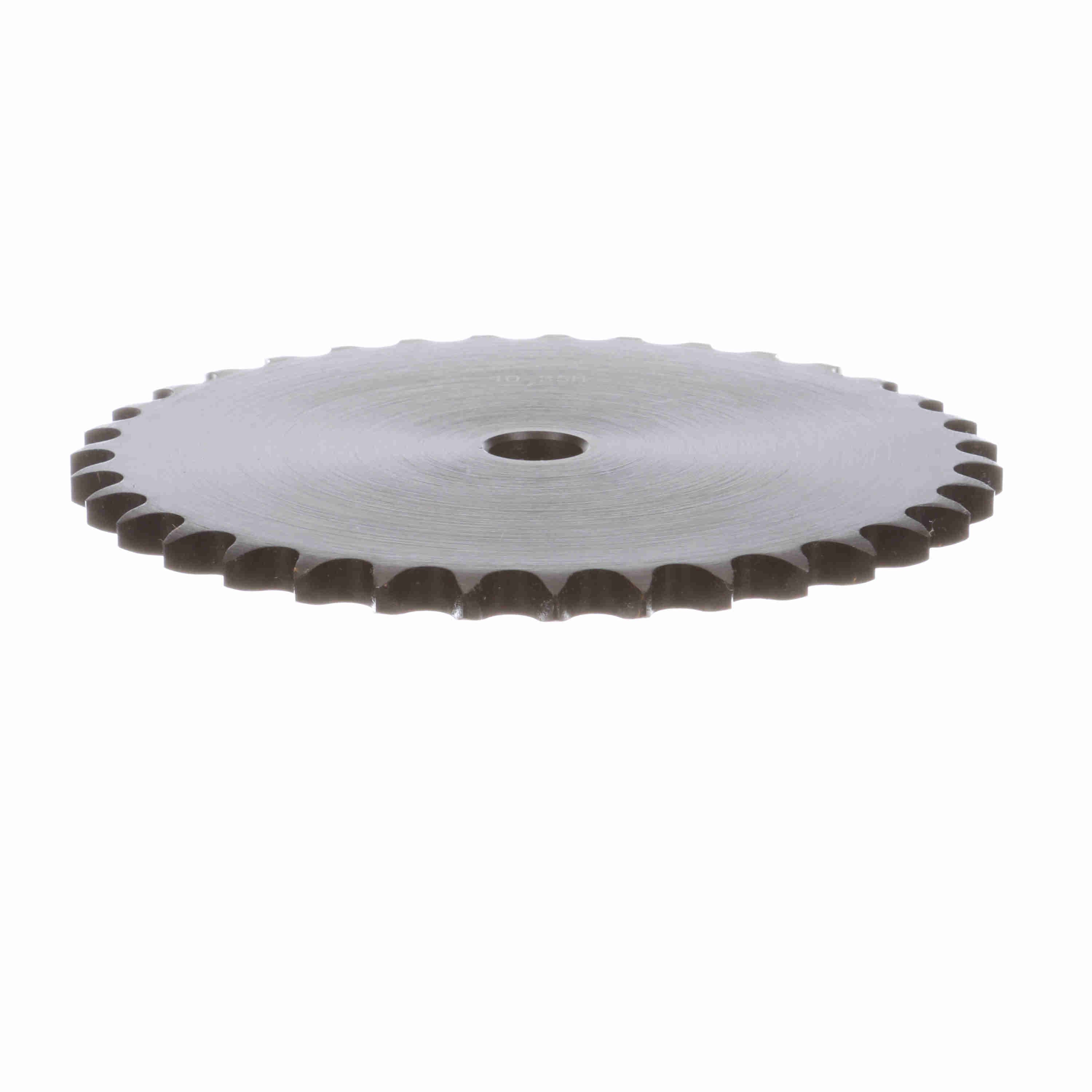

TYPE A SPROCKETS-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1108380 |
| Product Name | 40A35 |
| Brand | Browning |
| Material | Steel |
| Weight | 1.66 lb |
| Package Length | 9.25 in |
| Package Width | 9.25 in |
| Package Height | 3.75 in |
| Number of Teeth | 35 |
| Chain Used | No. 40, 1/2 in. Pitch ANSI Chain |
| Chain Pitch (in) | 0.5 in |
| Product Type | Type "A" Plate Sprocket |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $159.91 | — |
| 5 – 9 | $145.68 | 9% off |
| 10+ | $112.70 | 30% off |
| Minimum Plain Bore |
| Outside Diameter (in) | 5.855 in |
| Pitch Diameter (in) | 5.57791 in |
| Number of Strands/Width | 1 |
| Bore Diameter (in) | 0.59375 in |
| Length Through Bore (in) | 0.284 in |
| Hub Type | Type A |
| Maximum Bore (in) | 2.25 in |
| Maximum Bore (mm) | 57 mm |
| Minimum Bore (mm) | 16 mm |
| Number of Hubs | 0 |
| Hardened Teeth | With Hardened Teeth |
| HTC | 8483.90.1050 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-105057 |
| Part NumberiManufacturer catalog number | 1108380 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289141050 |
| CategoryiCatalog classification | Power Transmission > Chain Accessories |
