TYPE A SPROCKETS-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1109057 |

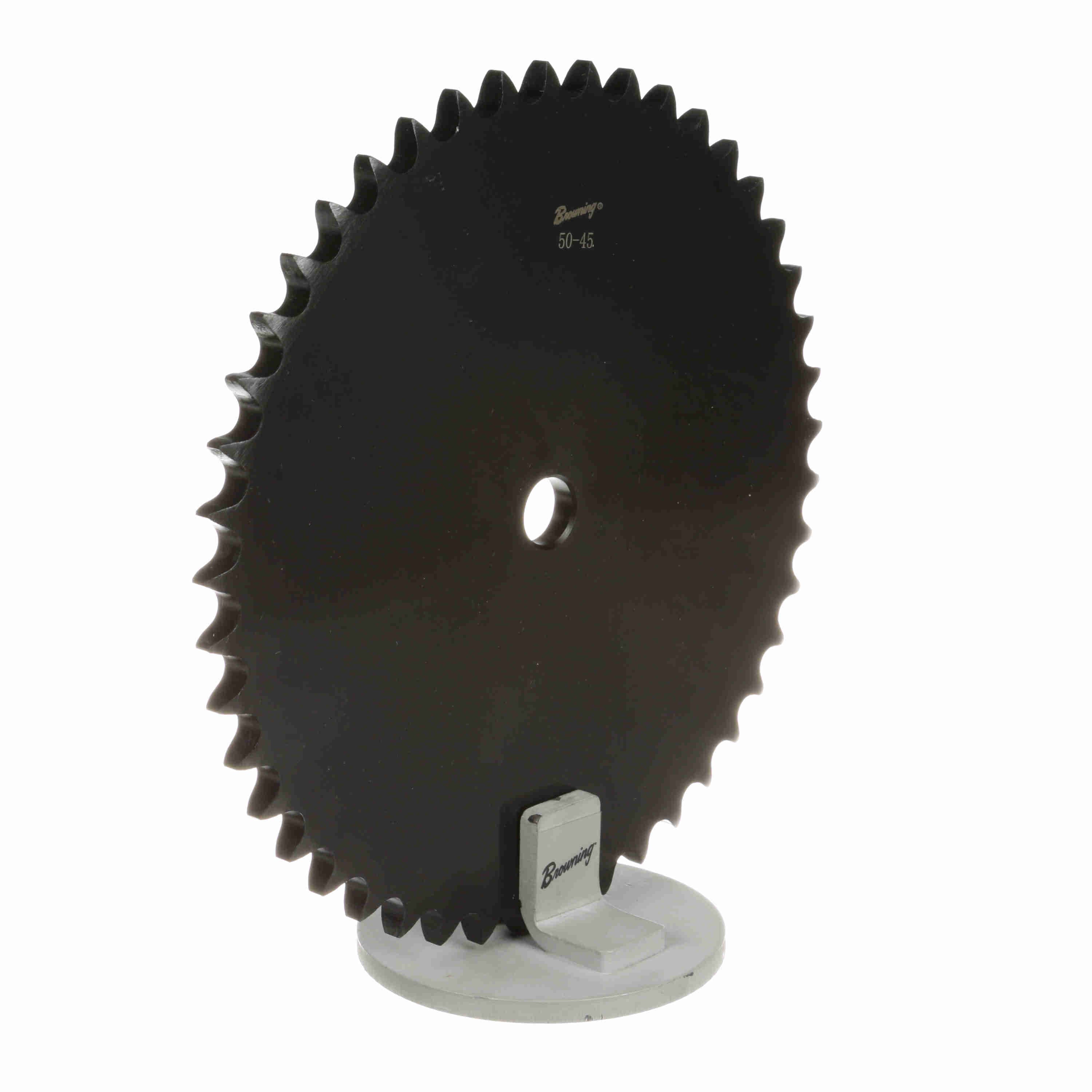

| Product Name | 50A45 |
| Brand | Browning |
| Material | Steel |
| Weight | 6.045 lb |
| Package Length | 10.4 in |
| Package Width | 10.2 in |
| Package Height | 1.4 in |
| Chain Used | No. 50, 5/8 in. Pitch ANSI Chain |
| Product Type | Type "A" Plate Sprocket |
| Number of Teeth | 45 |
| Chain Pitch (in) | 0.625 in |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $227.11 | — |
| 5 – 9 | $206.90 | 9% off |
| 10+ | $160.06 | 30% off |
| Minimum Plain Bore |
| Outside Diameter (in) | 9.313 in |
| Pitch Diameter (in) | 8.959742 in |
| Number of Strands/Width | 1 |
| Bore Diameter (in) | 0.71875 in |
| Hub Type | Type A |
| Length Through Bore (in) | 0.343 in |
| Maximum Bore (in) | 2.5 in |
| Minimum Bore (mm) | 20 mm |
| Maximum Bore (mm) | 63 mm |
| Number of Hubs | 0 |
| Hardened Teeth | Non-Hardened Teeth |
| HTC | 8483.90.1050 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-105075 |
| Part NumberiManufacturer catalog number | 1109057 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289171613 |
| CategoryiCatalog classification | Sprockets |
