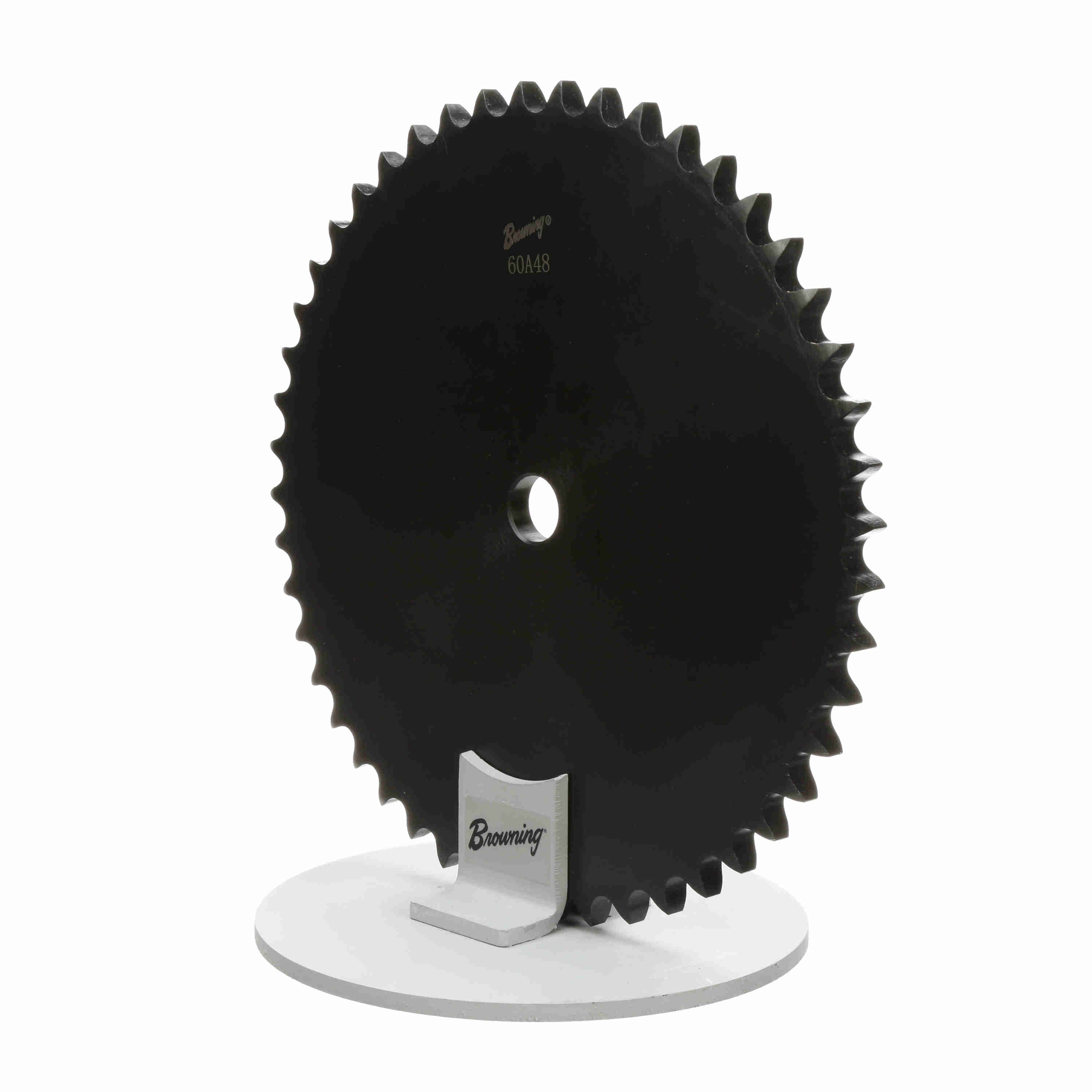

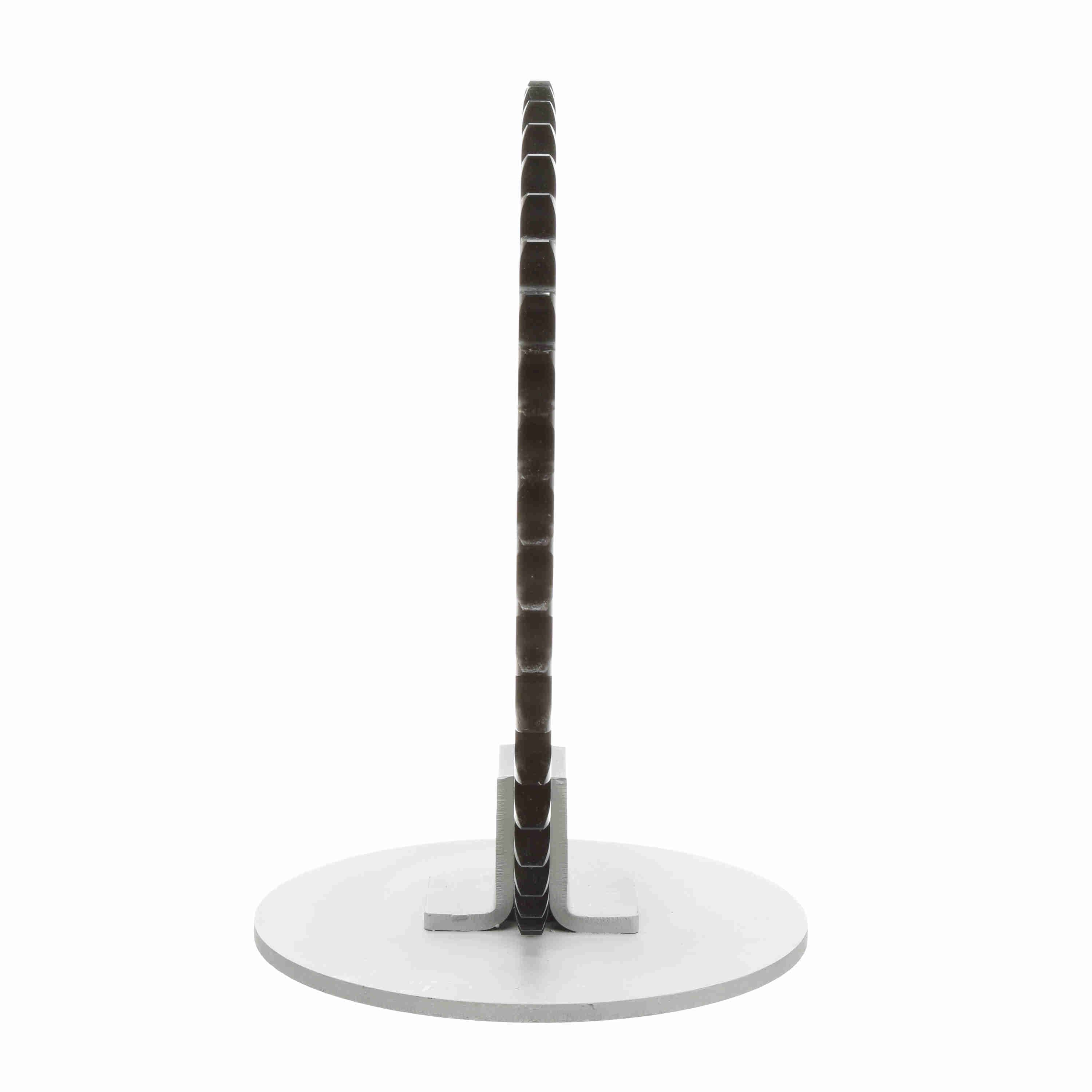

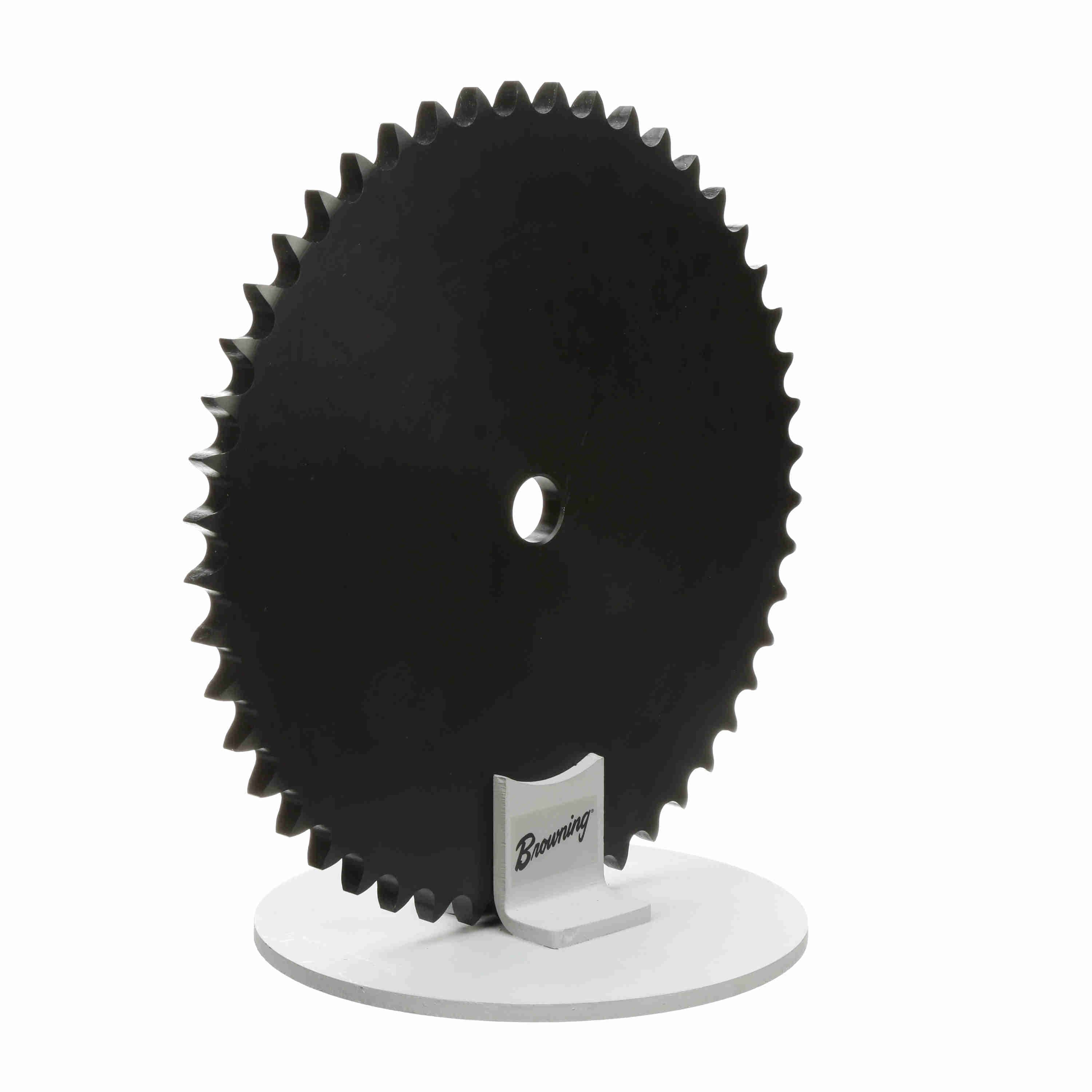

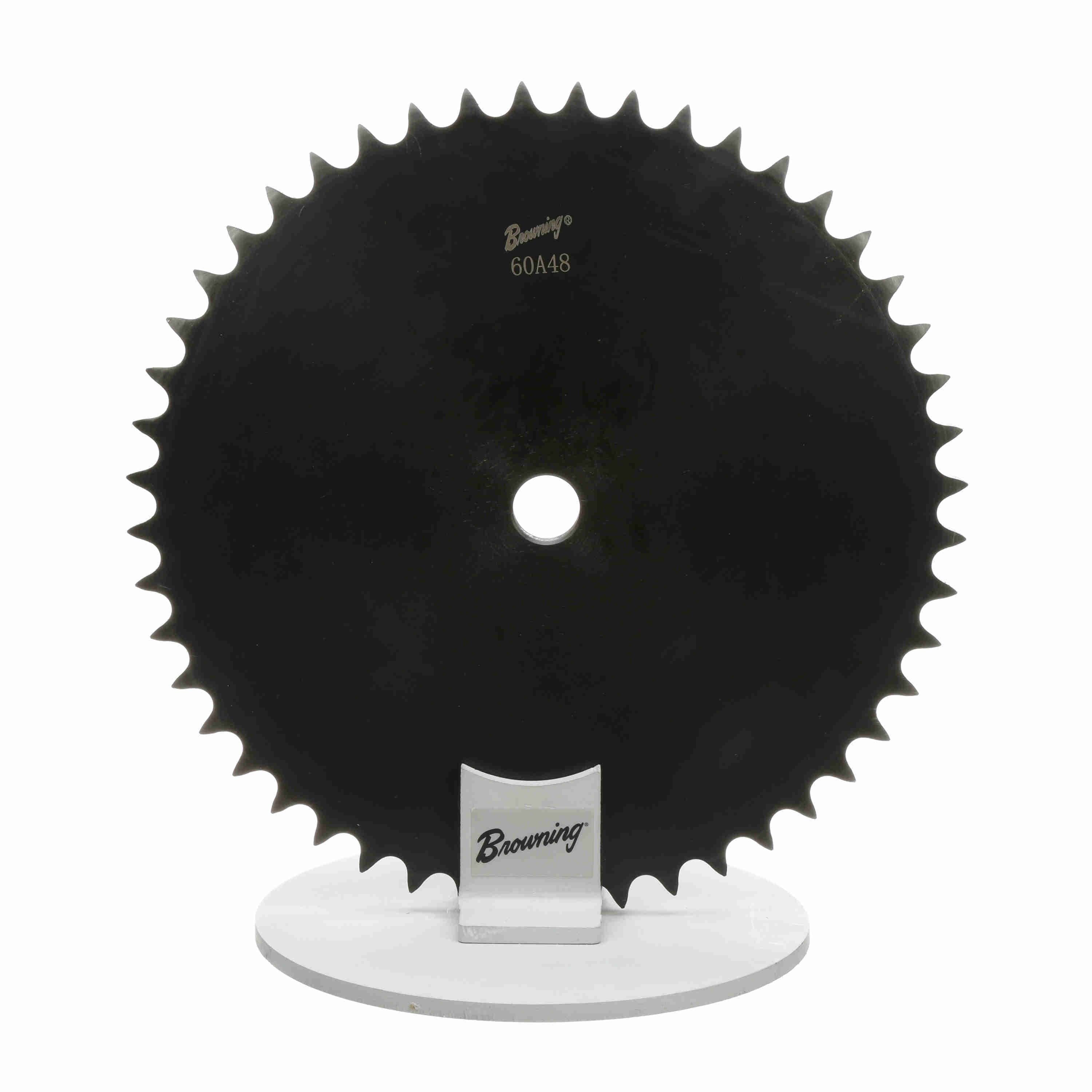

TYPE A SPROCKETS-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1109578 |
| Product Name | 60A48 |
| Brand | Browning |
| Material | Steel |
| Weight | 13.005 lb |
| Package Length | 11.8 in |
| Package Width | 12 in |
| Package Height | 0.9 in |
| Product Type | Type "A" Plate Sprocket |
| Number of Teeth | 48 |
| Chain Pitch (in) | 0.75 in |
| Chain Used | No. 60, 3/4 in. Pitch ANSI Chain |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $341.39 | — |
| 5 – 9 | $311.00 | 9% off |
| 10+ | $240.60 | 30% off |
| Minimum Plain Bore |
| Outside Diameter (in) | 11.893 in |
| Pitch Diameter (in) | 11.467341 in |
| Number of Strands/Width | 1 |
| Bore Diameter (in) | 1 in |
| Length Through Bore (in) | 0.459 in |
| Hub Type | Type A |
| Maximum Bore (in) | 2.125 in |
| Minimum Bore (mm) | 26 mm |
| Maximum Bore (mm) | 53 mm |
| Number of Hubs | 0 |
| Hardened Teeth | Non-Hardened Teeth |
| HTC | 8483.90.1050 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-105093 |
| Part NumberiManufacturer catalog number | 1109578 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289162062 |
| CategoryiCatalog classification | Sprockets |
