TYPE A SPROCKETS-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1110154 |
| Product Name | 80A60 |
| Brand | Browning |
| Material | Steel |
| Weight | 43.6 lb |
| Package Length | 0.58 in |
| Package Width | 19.64 in |
| Package Height | 19.64 in |
| Chain Used | No. 80, 1 in. Pitch ANSI Chain |

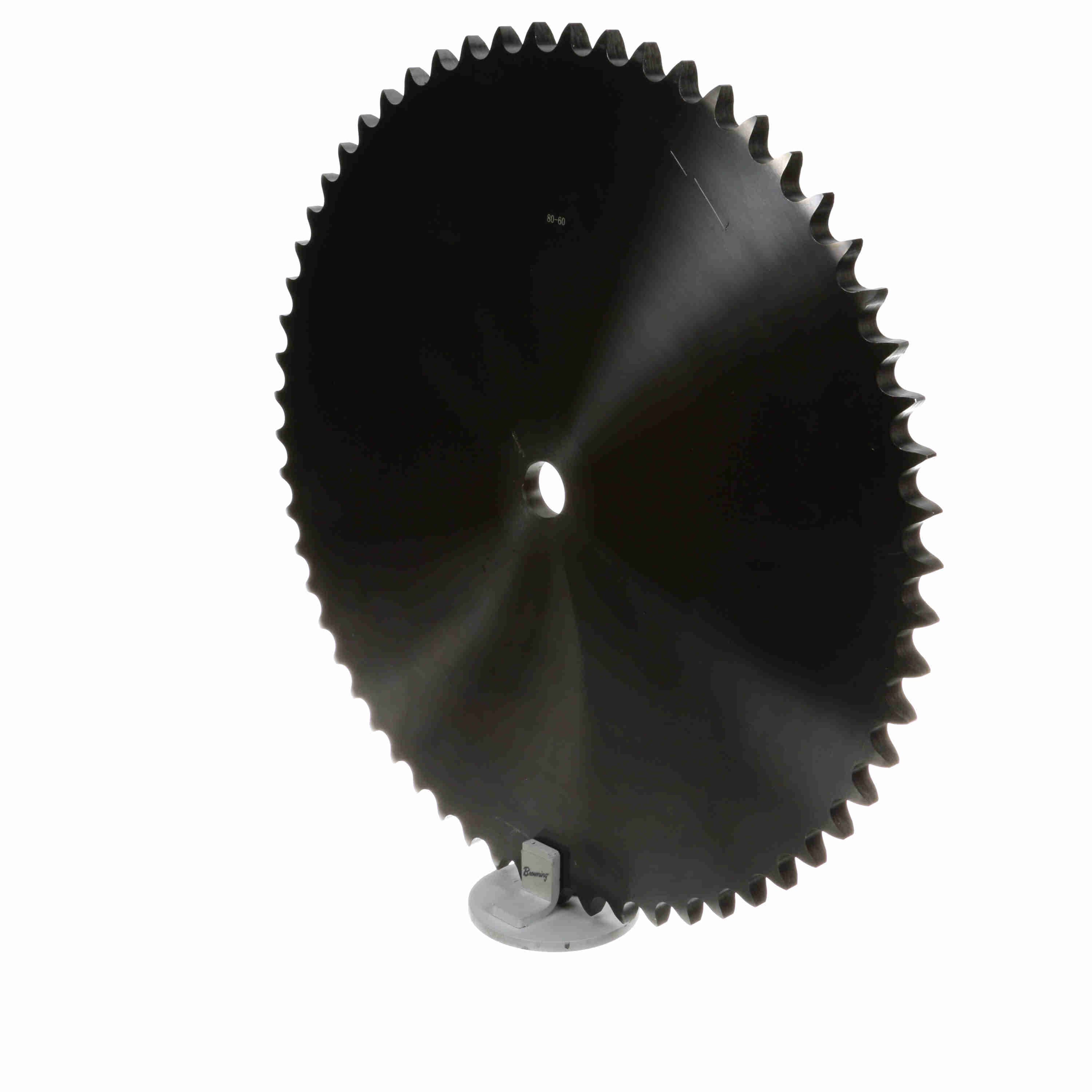

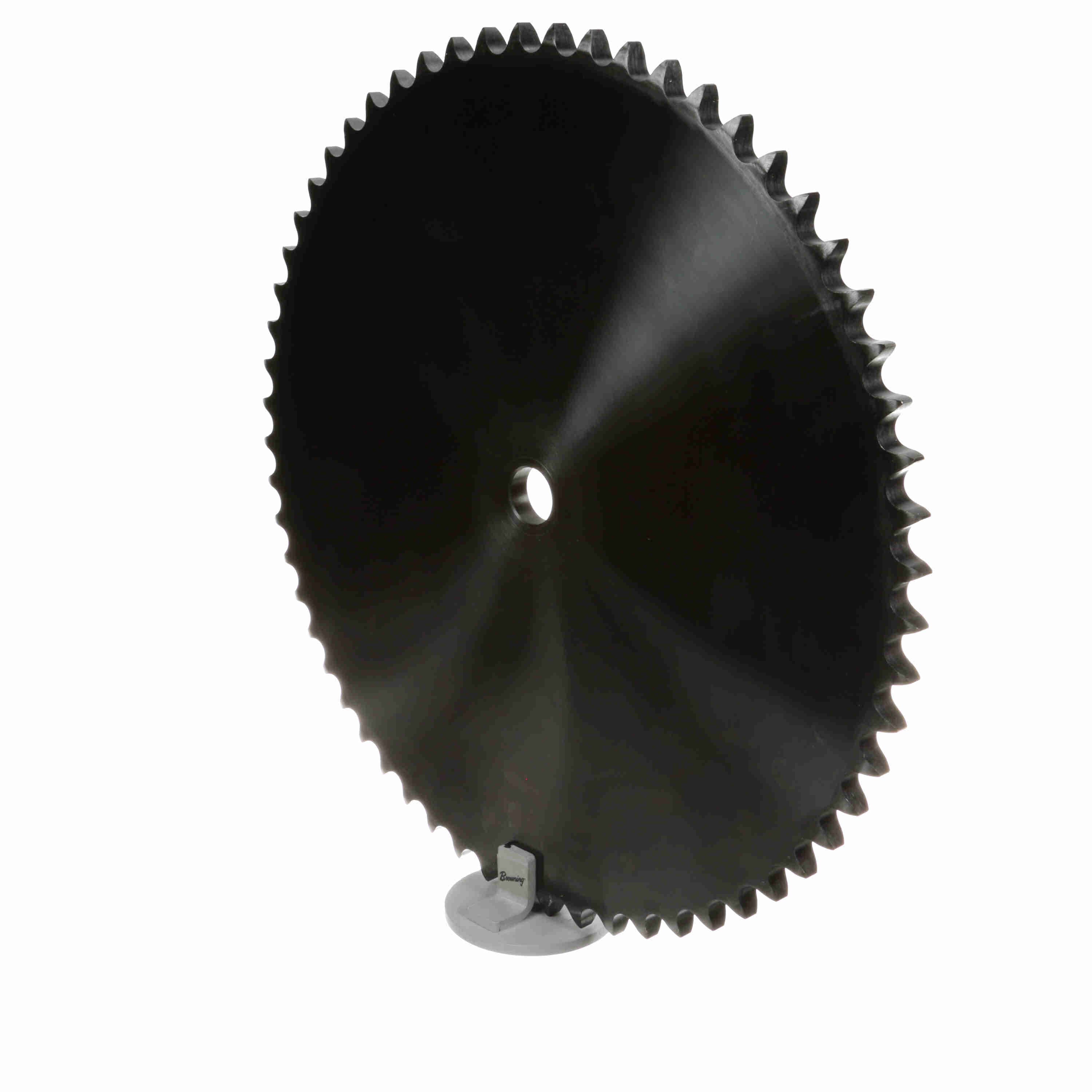

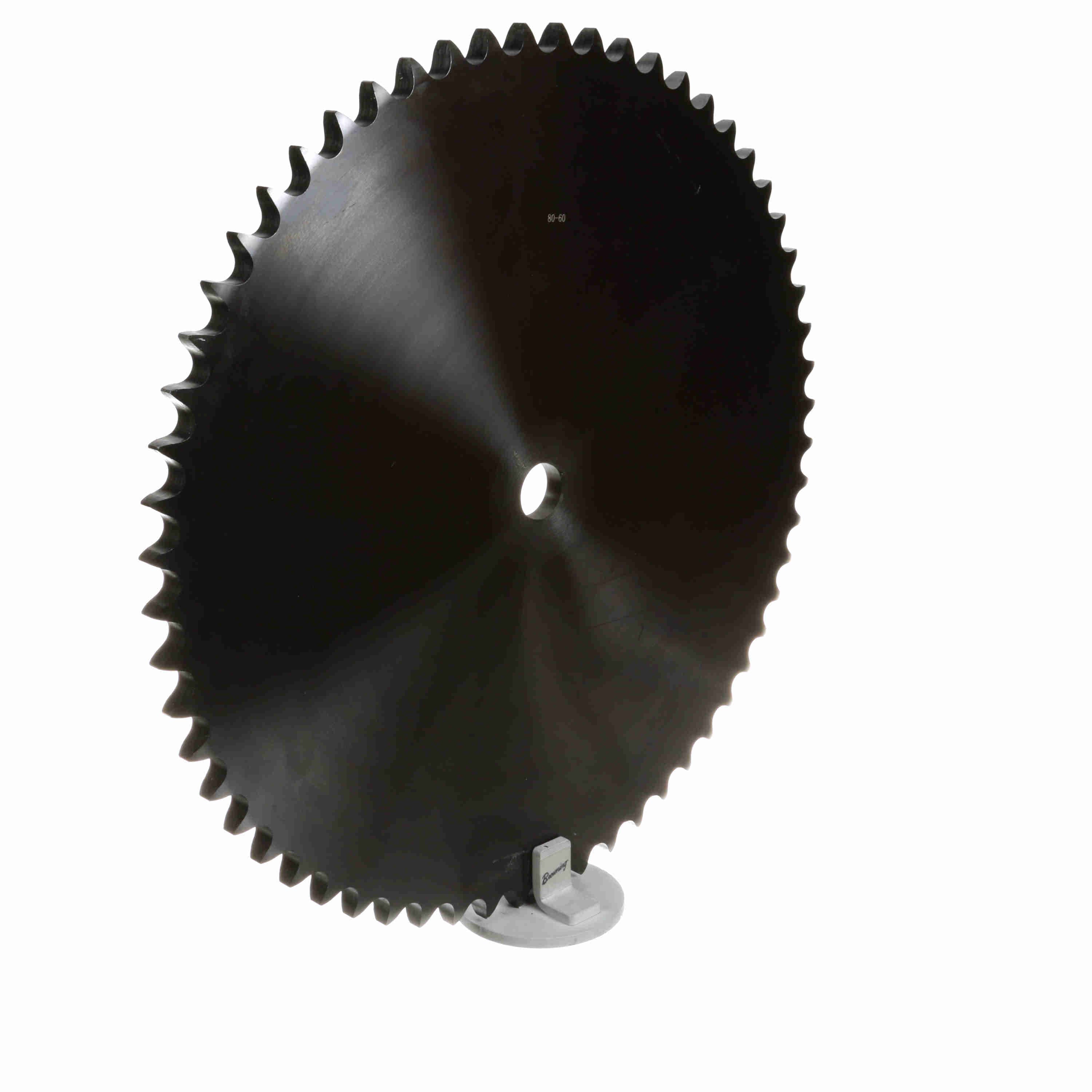

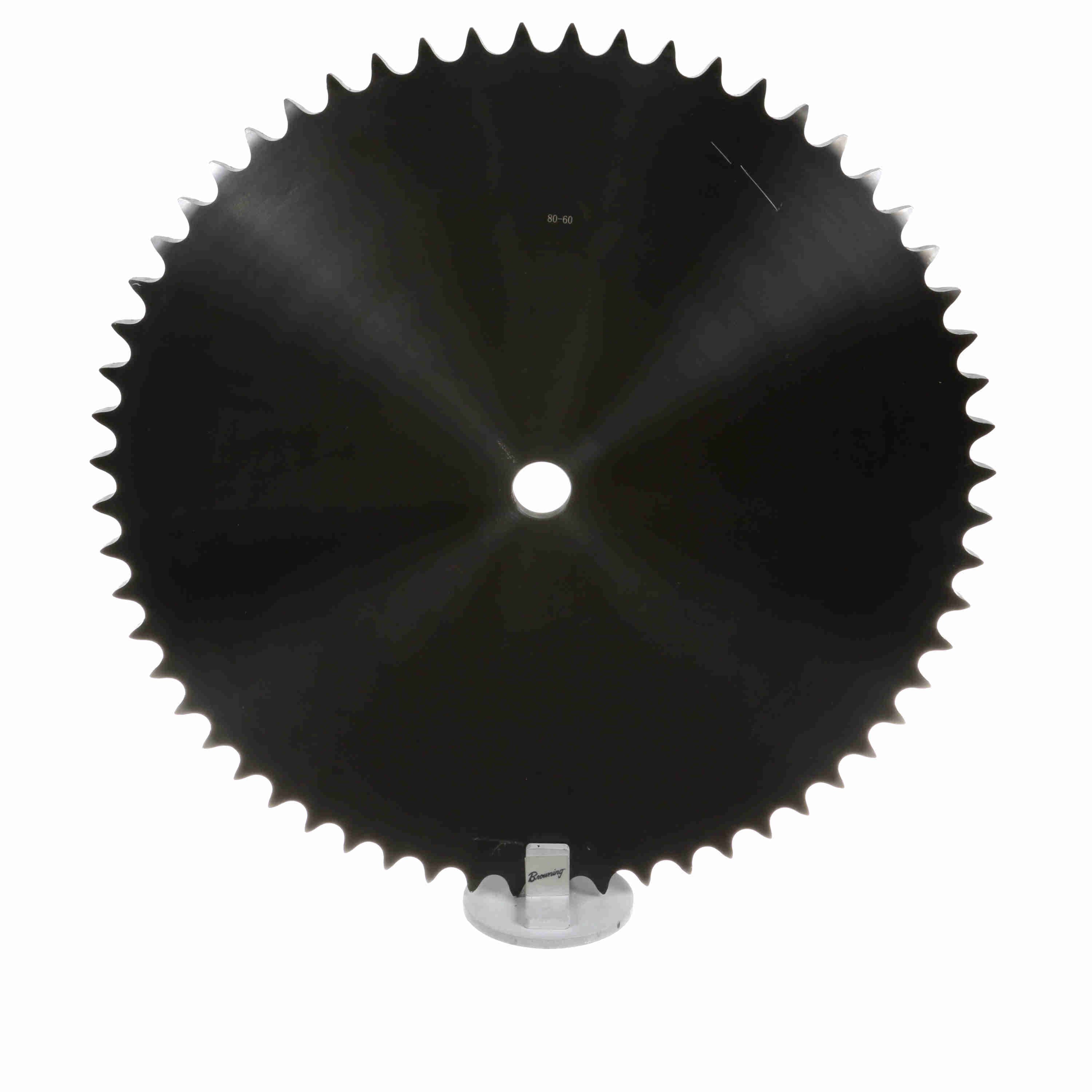

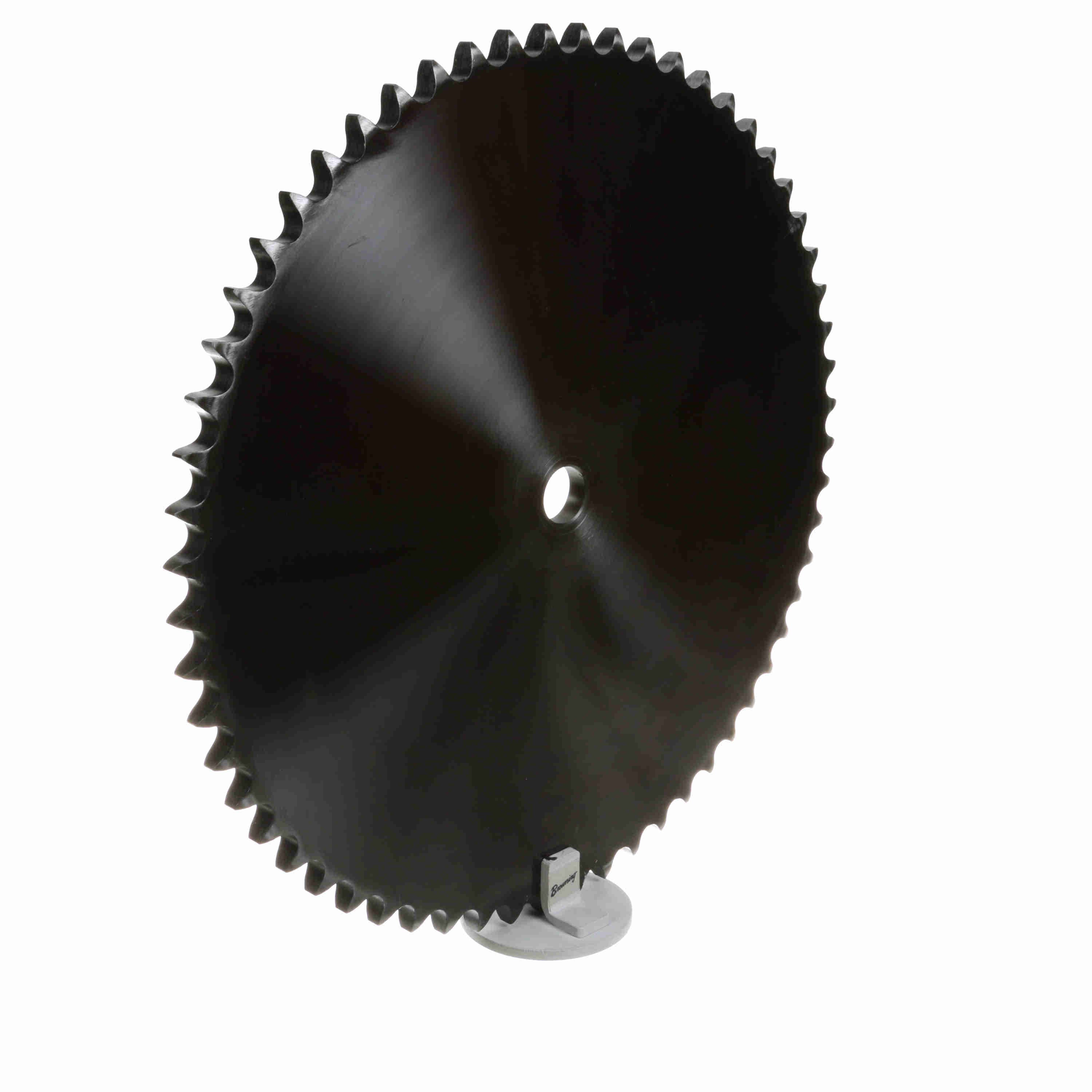

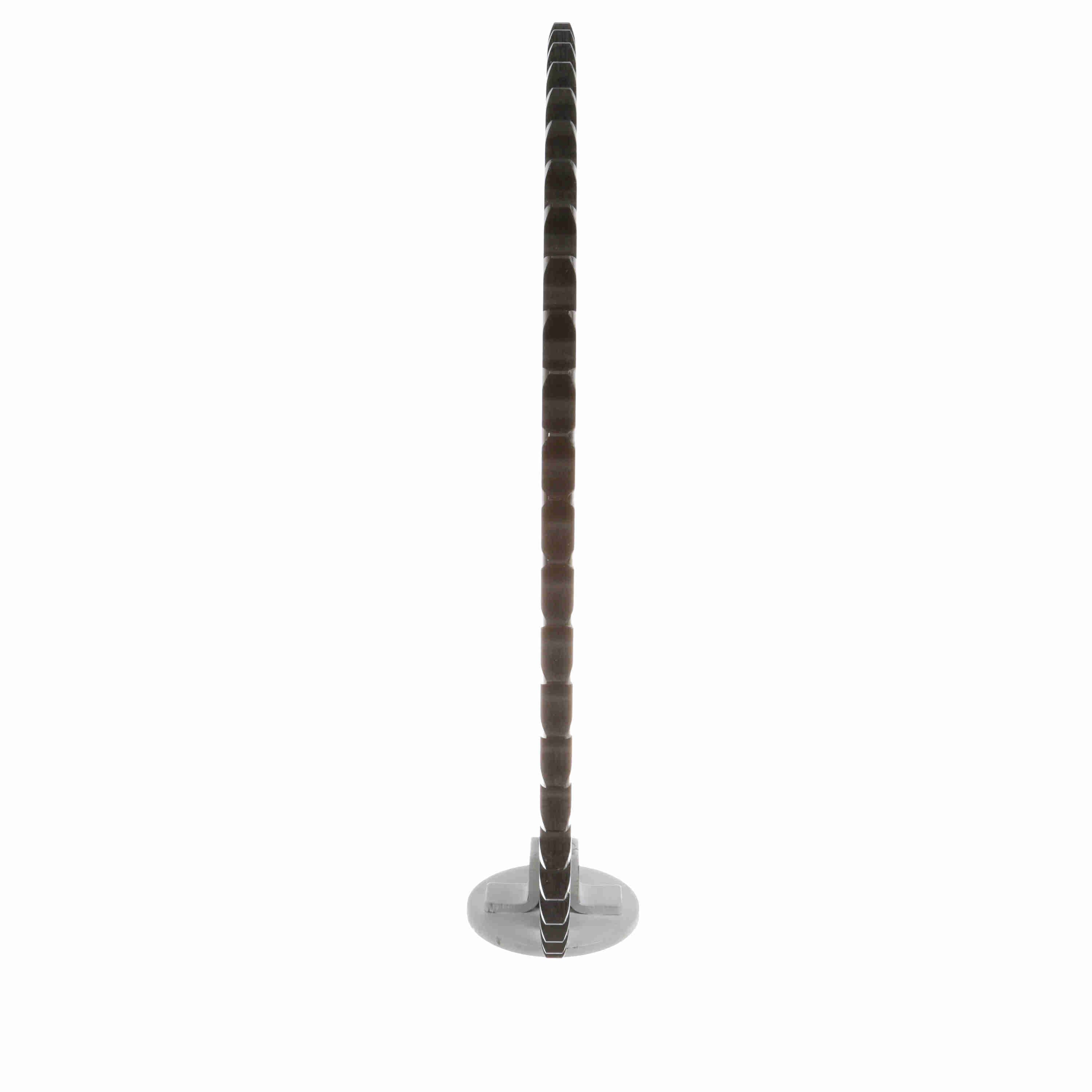

| Product Type | Type "A" Plate Sprocket |
| Number of Teeth | 60 |
| Chain Pitch (in) | 1 in |
| Outside Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $1203.41 | — |
| 5 – 9 | $1096.30 | 9% off |
| 10+ | $848.14 | 30% off |
| 19.681 in |
| Bore Type | Minimum Plain Bore |
| Pitch Diameter (in) | 19.107323 in |
| Number of Strands/Width | 1 |
| Bore Diameter (in) | 1.25 in |
| Length Through Bore (in) | 0.575 in |
| Hub Type | Type A |
| Maximum Bore (in) | 1 in |
| Minimum Bore (mm) | 0 mm |
| Maximum Bore (mm) | 0 mm |
| Number of Hubs | 0 |
| Hardened Teeth | Non-Hardened Teeth |
| HTC | 8483.90.1050 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-105109 |
| Part NumberiManufacturer catalog number | 1110154 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289242627 |
| CategoryiCatalog classification | Sprockets |
