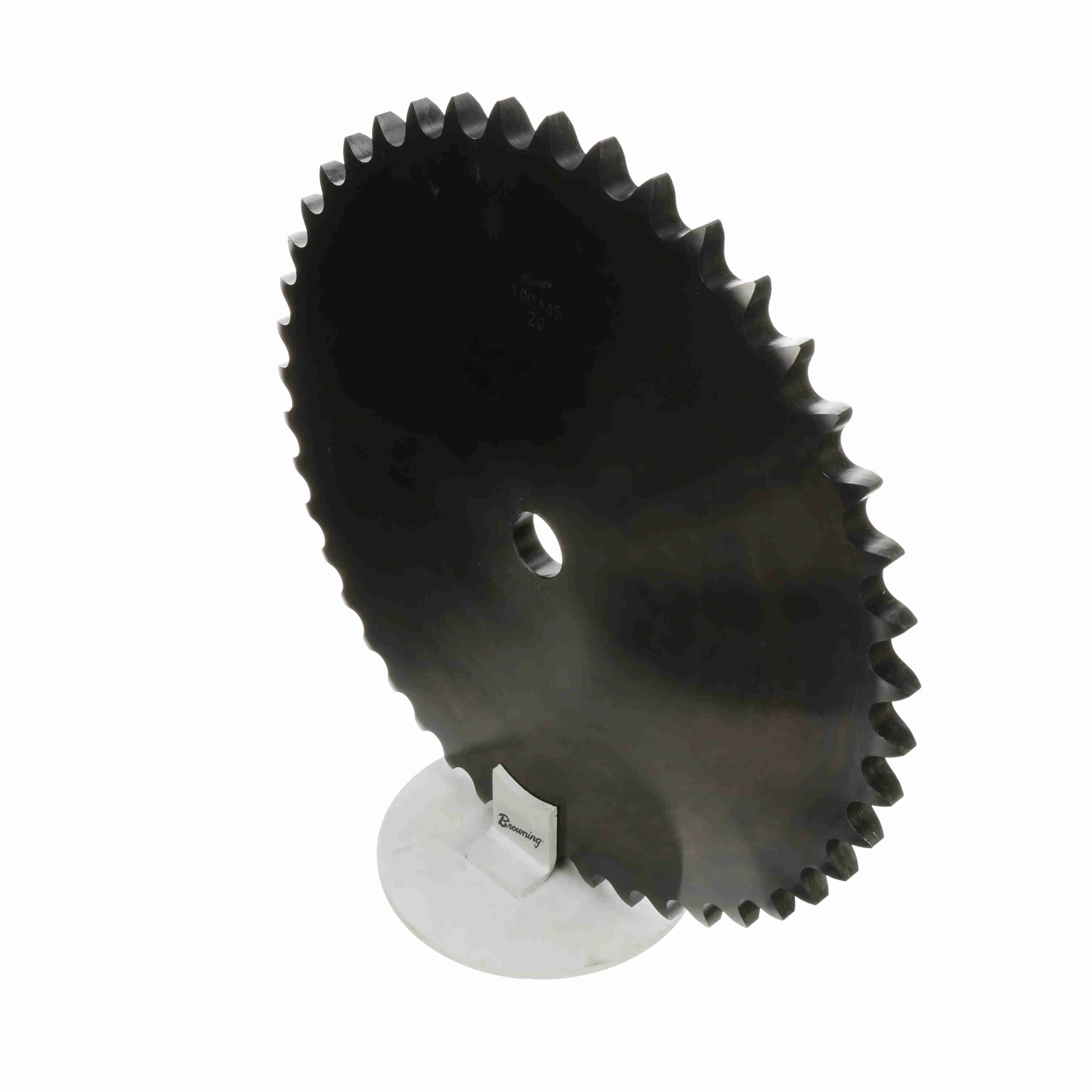

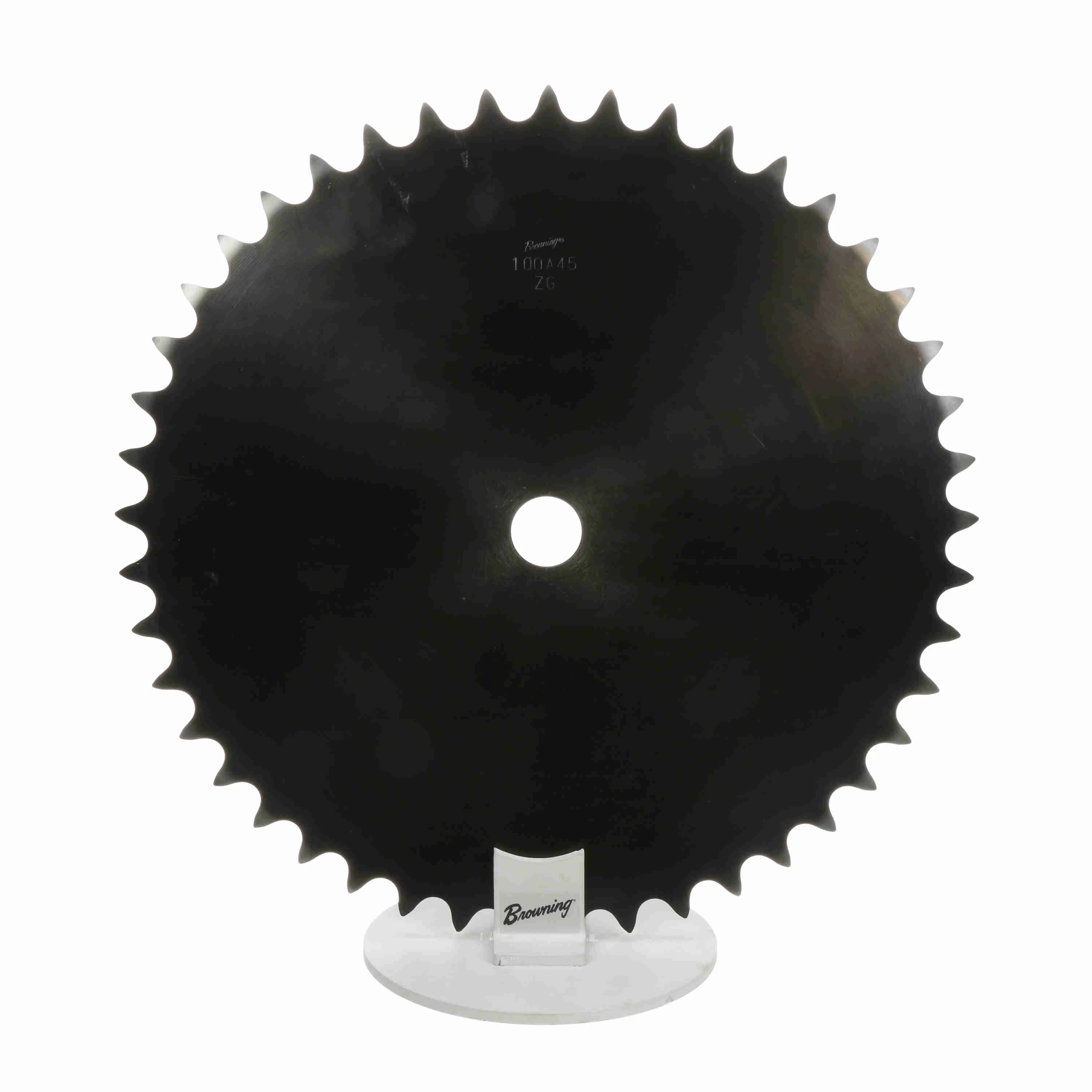

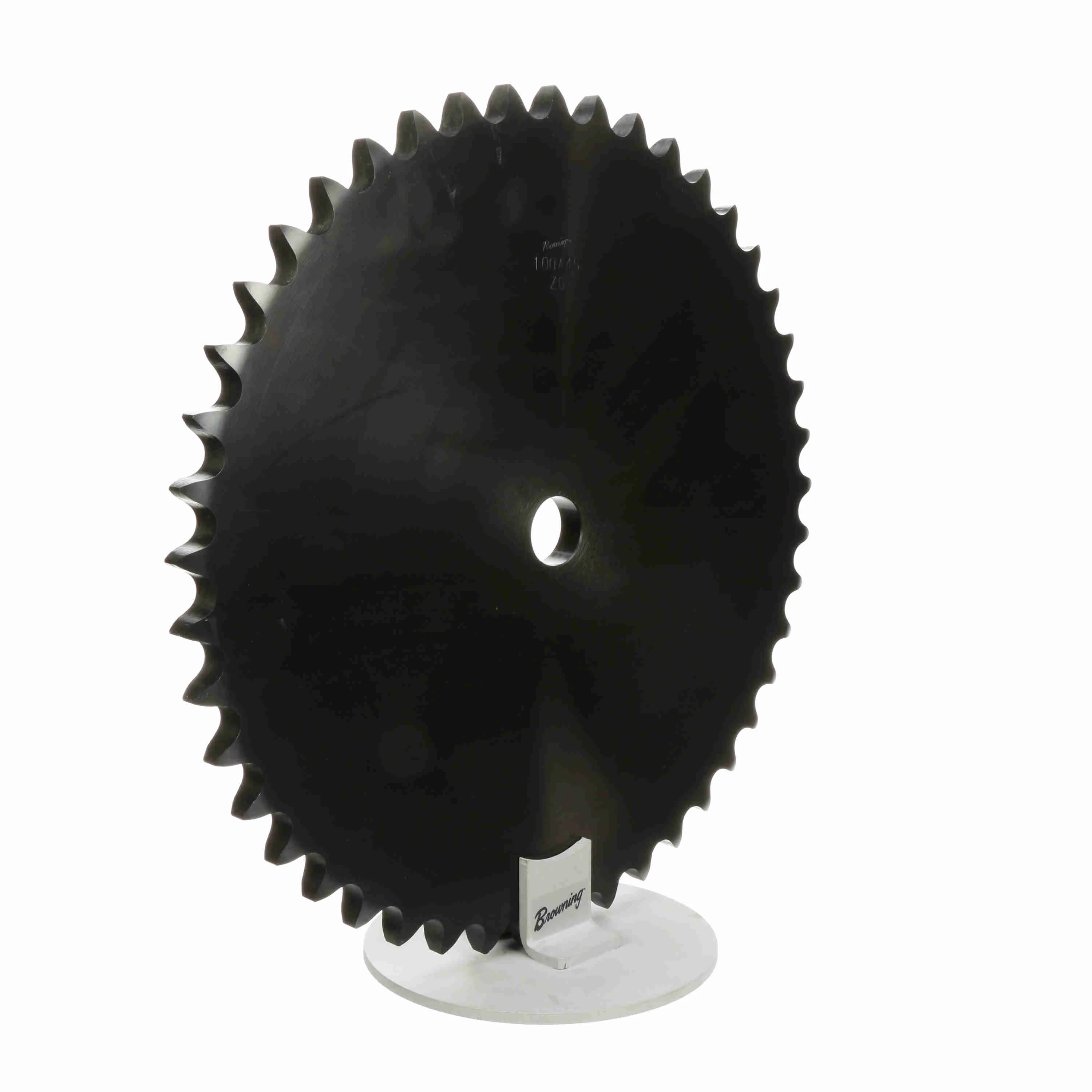

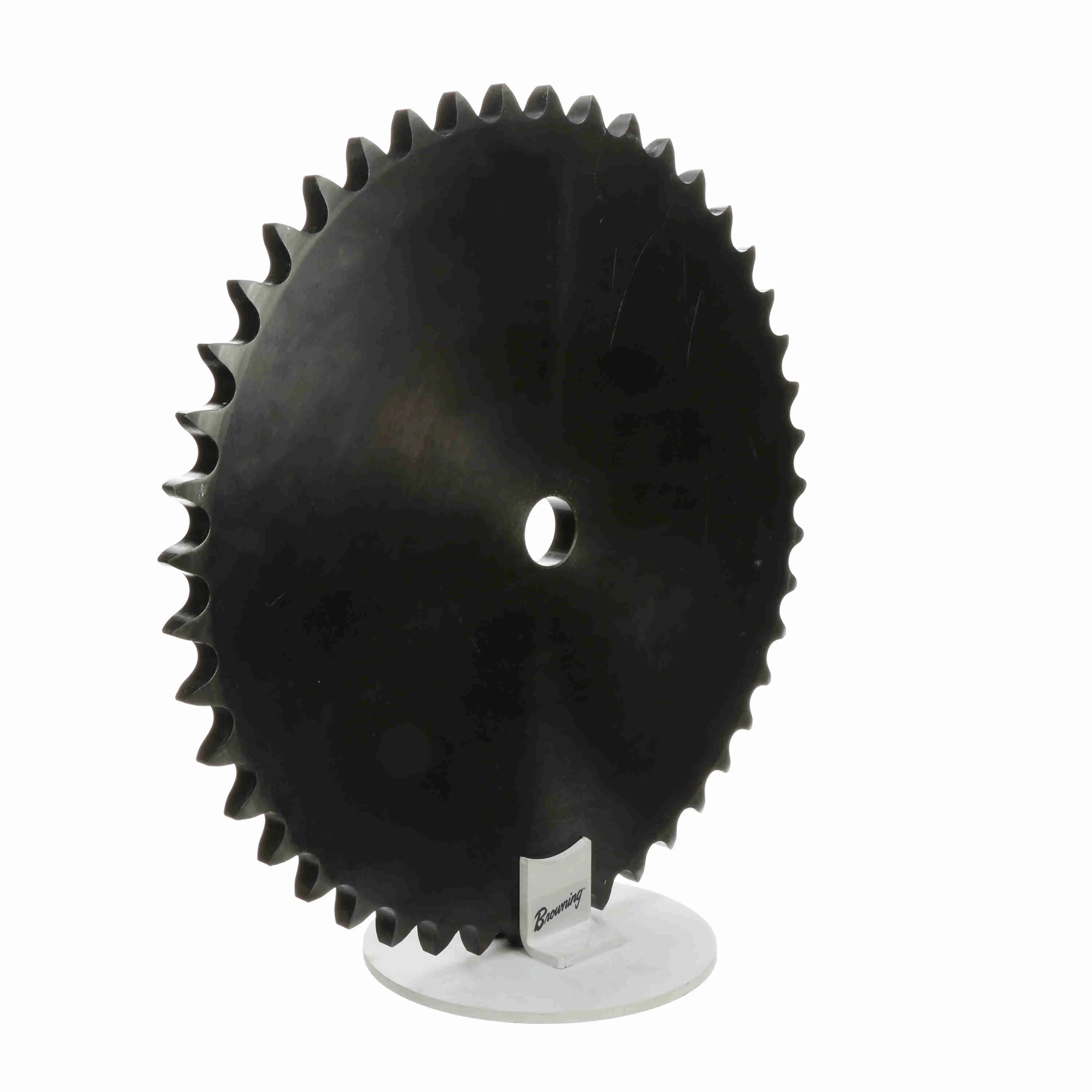

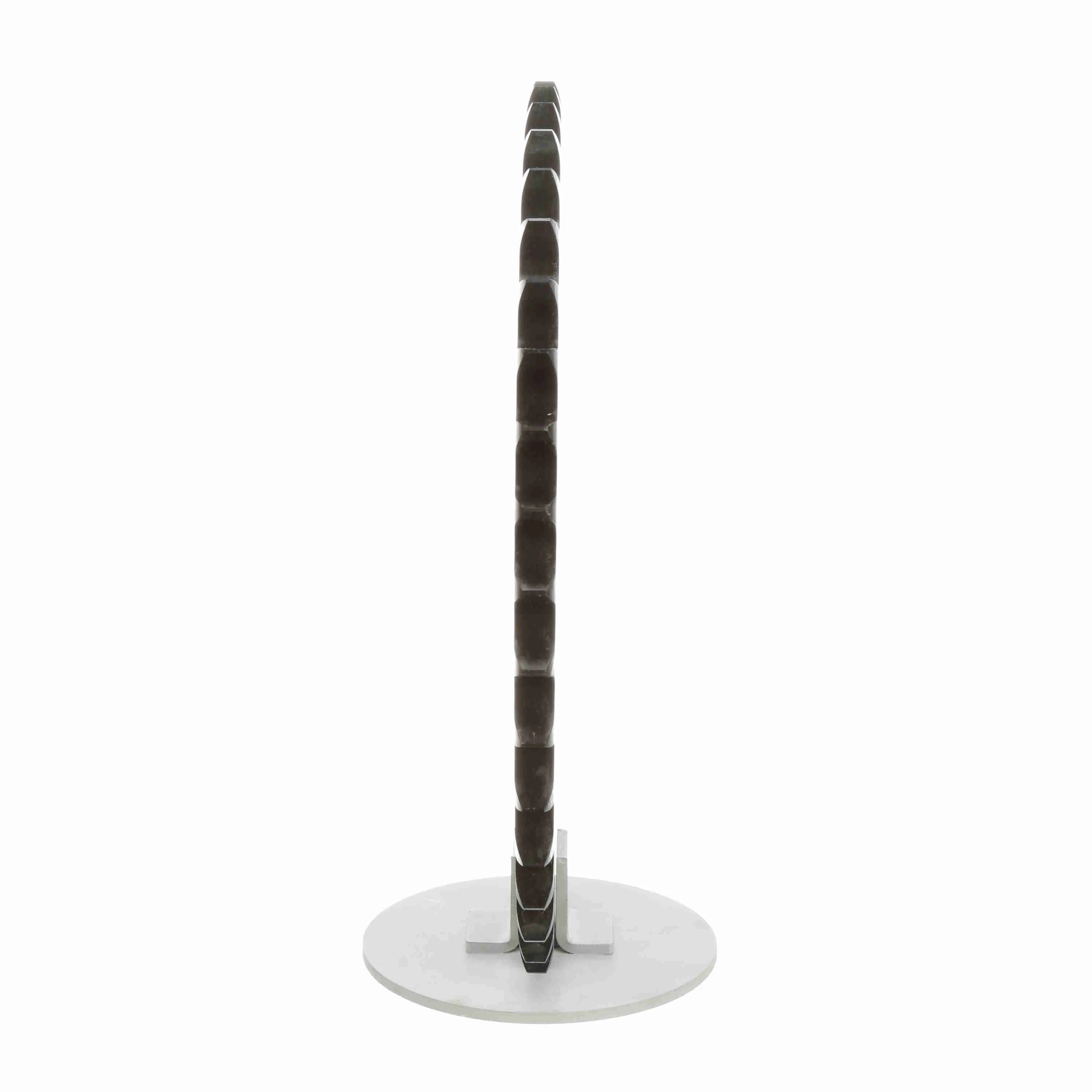

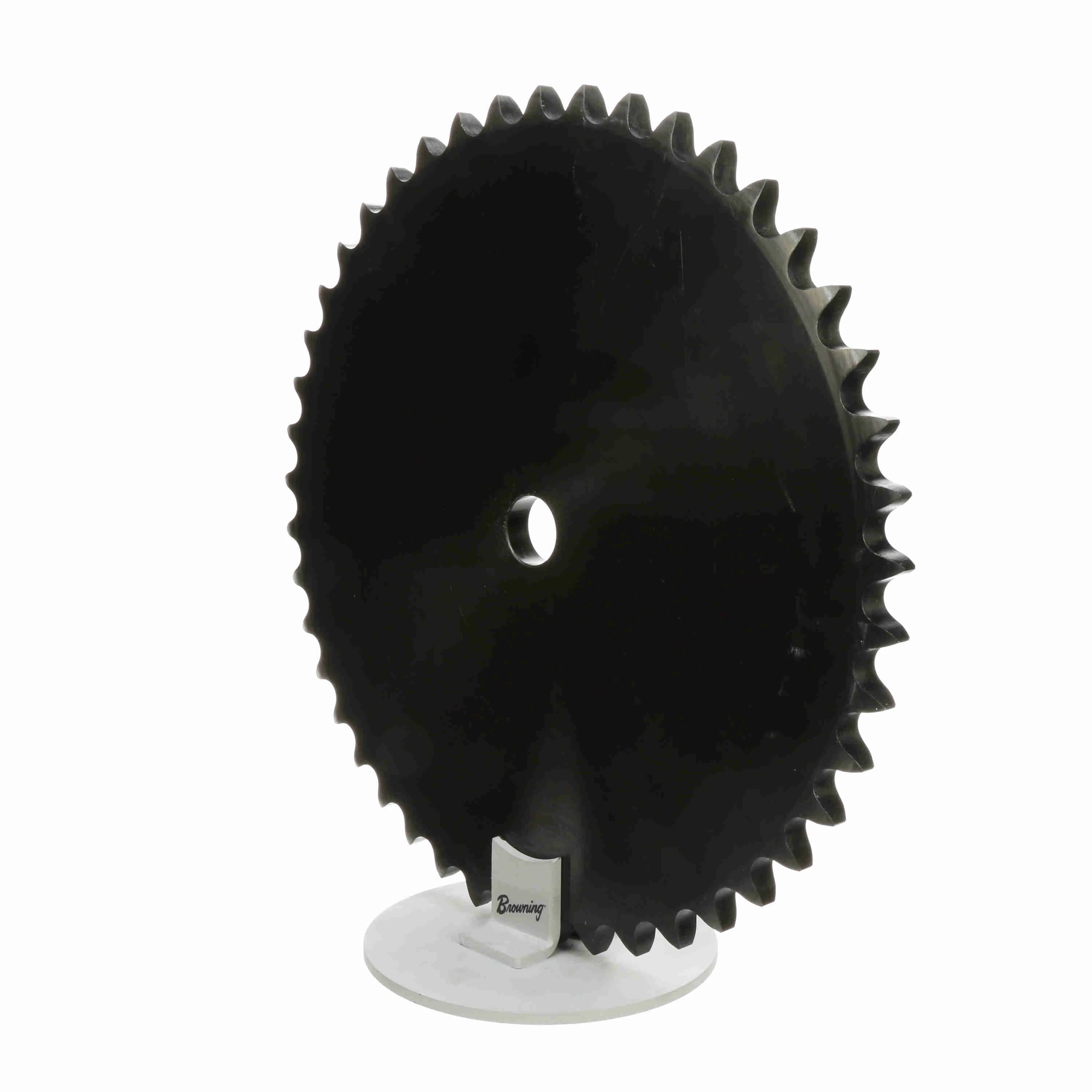

TYPE A SPROCKETS-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1110626 |
| Product Name | 100A45 |
| Brand | Browning |
| Material | Steel |
| Weight | 44.5 lb |
| Package Length | 0.69 in |
| Package Width | 18.63 in |
| Package Height | 18.63 in |
| Chain Pitch (in) | 1.25 in |
| Number of Teeth | 45 |
| Product Type | Type "A" Plate Sprocket |
| Chain Used | No. 100, 1-1/4 in. Pitch ANSI Chain |
| Outside Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $1242.62 | — |
| 5 – 9 | $1132.02 | 9% off |
| 10+ | $875.78 | 30% off |
| 18.626 in |
| Bore Type | Minimum Plain Bore |
| Pitch Diameter (in) | 17.919484 in |
| Bore Diameter (in) | 1.5 in |
| Number of Strands/Width | 1 |
| Length Through Bore (in) | 0.692 in |
| Hub Type | Type A |
| Maximum Bore (in) | 4 in |
| Minimum Bore (mm) | 26 mm |
| Maximum Bore (mm) | 101 mm |
| Number of Hubs | 0 |
| Hardened Teeth | Non-Hardened Teeth |
| HTC | 8483.90.1050 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-105114 |
| Part NumberiManufacturer catalog number | 1110626 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289193073 |
| CategoryiCatalog classification | Sprockets |
