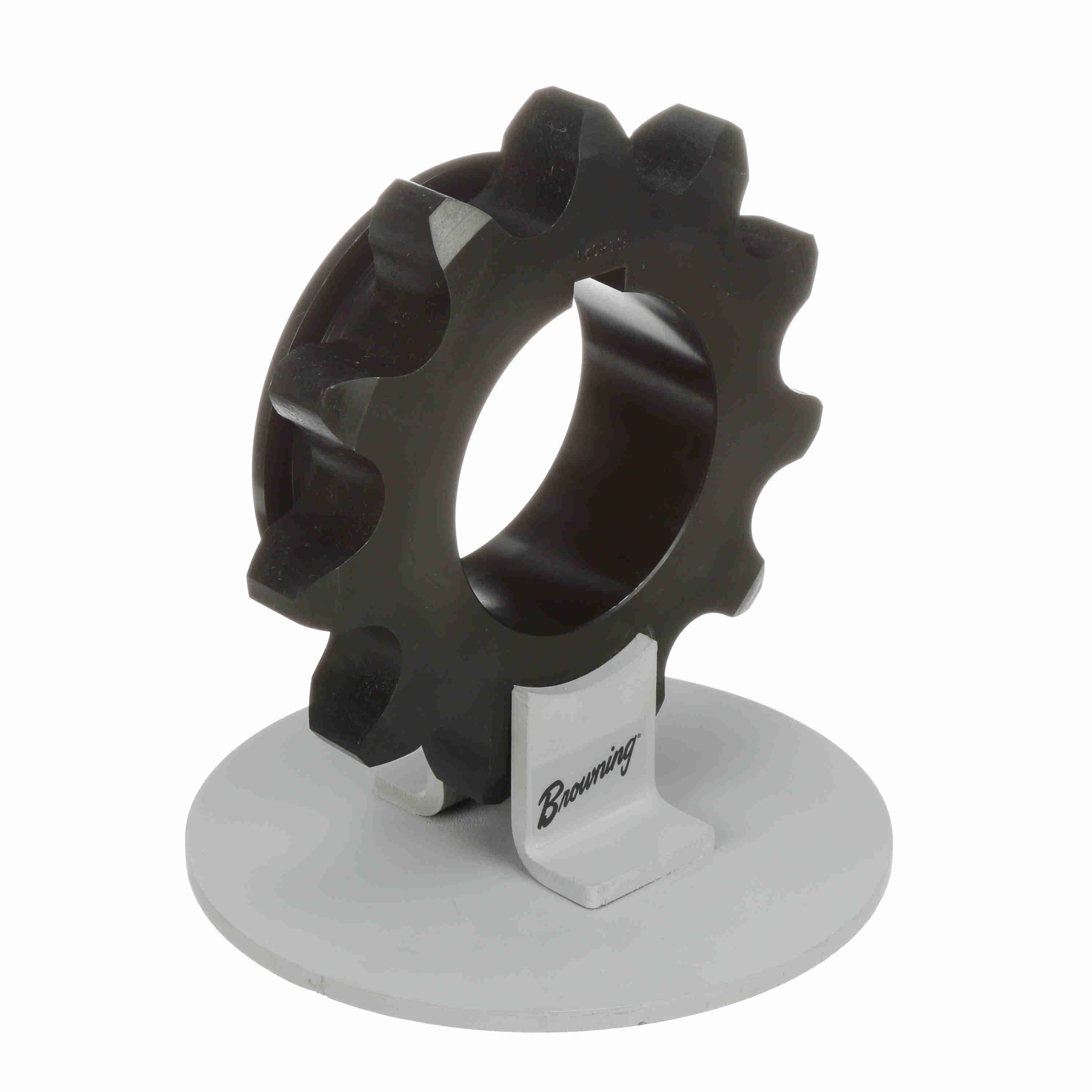

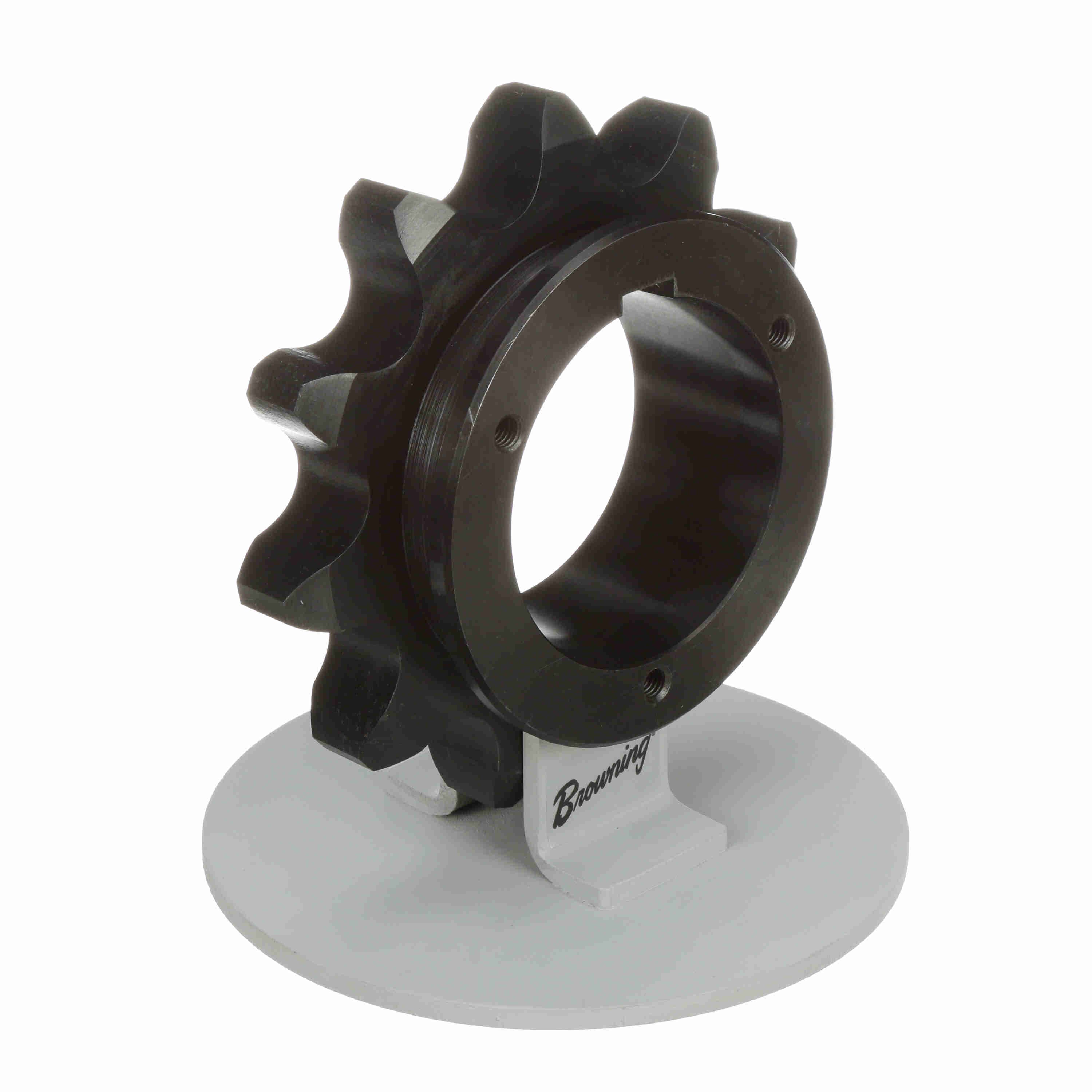

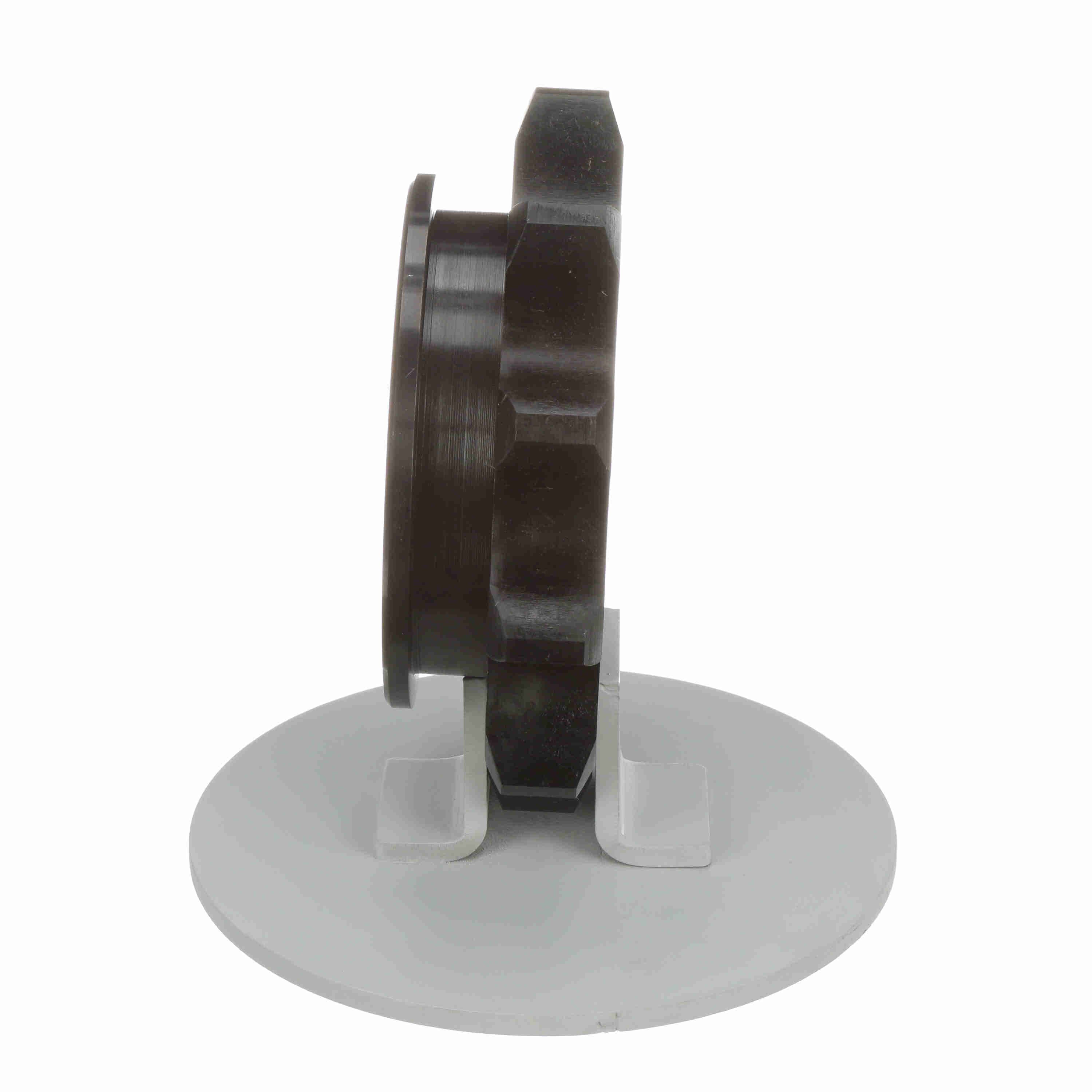

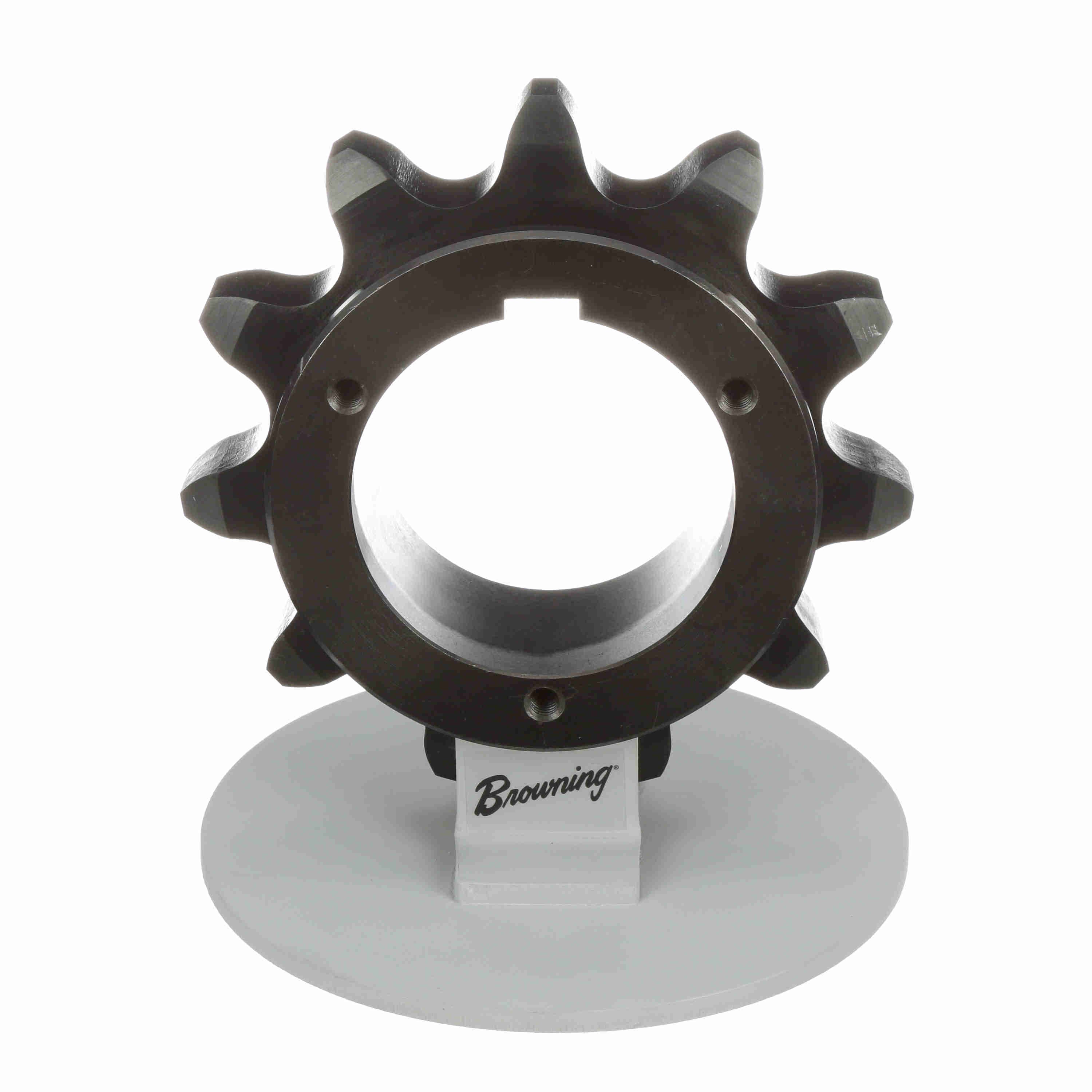

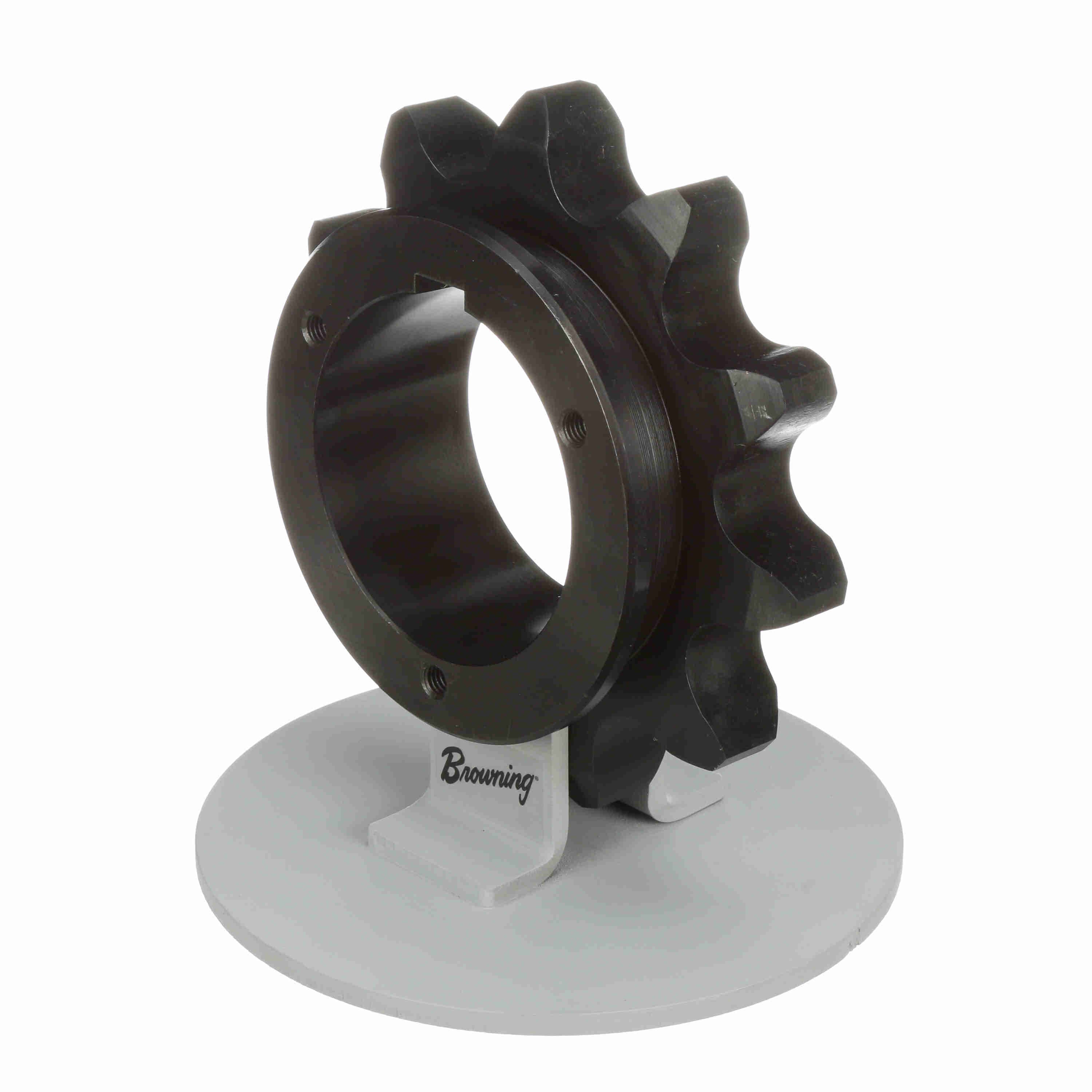

SPLIT TAPER BUSH SPKTS-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1179001 |
| Product Name | H160R11 |
| Brand | Browning |
| Material | Steel, Hardened Teeth |
| Weight | 11.085 lb |
| Package Length | 10.5 in |
| Package Width | 10.5 in |
| Package Height | 2.5 in |
| Max Bore (in) | 3.75 in |
| Min Bore (in) | 1.125 in |
| Product Type | Bushed Roller Chain Sprocket |
| Chain Pitch (in) | 2 in |
| Bushing Used |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $1779.31 | — |
| 5 – 9 | $1570.23 | 12% off |
| 10+ | $1210.89 | 32% off |
| Split Taper |
| Chain Used | No. 160, 2 in. Pitch ANSI Chain |
| Pitch Diameter (in) | 7.099 in |
| Number of Teeth | 11 |
| Outside Diameter (in) | 8.011 in |
| Bore Type | Bushed Bore |
| Overall Length (in) | 3.463375 in |
| Number of Strands/Width | 1 |
| Hub Diameter (in) | 5.375 in |
| Maximum Bore (in) | 3.75 in |
| Minimum Bore (mm) | 28 mm |
| Maximum Bore (mm) | 95 mm |
| Number of Hubs | 1 |
| Pitch Type | Single |
| HTC | 8483.90.1050 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-105753 |
| Part NumberiManufacturer catalog number | 1179001 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289166886 |
| CategoryiCatalog classification | Sprockets |
