BEVEL/MITER GEARS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1227966 |

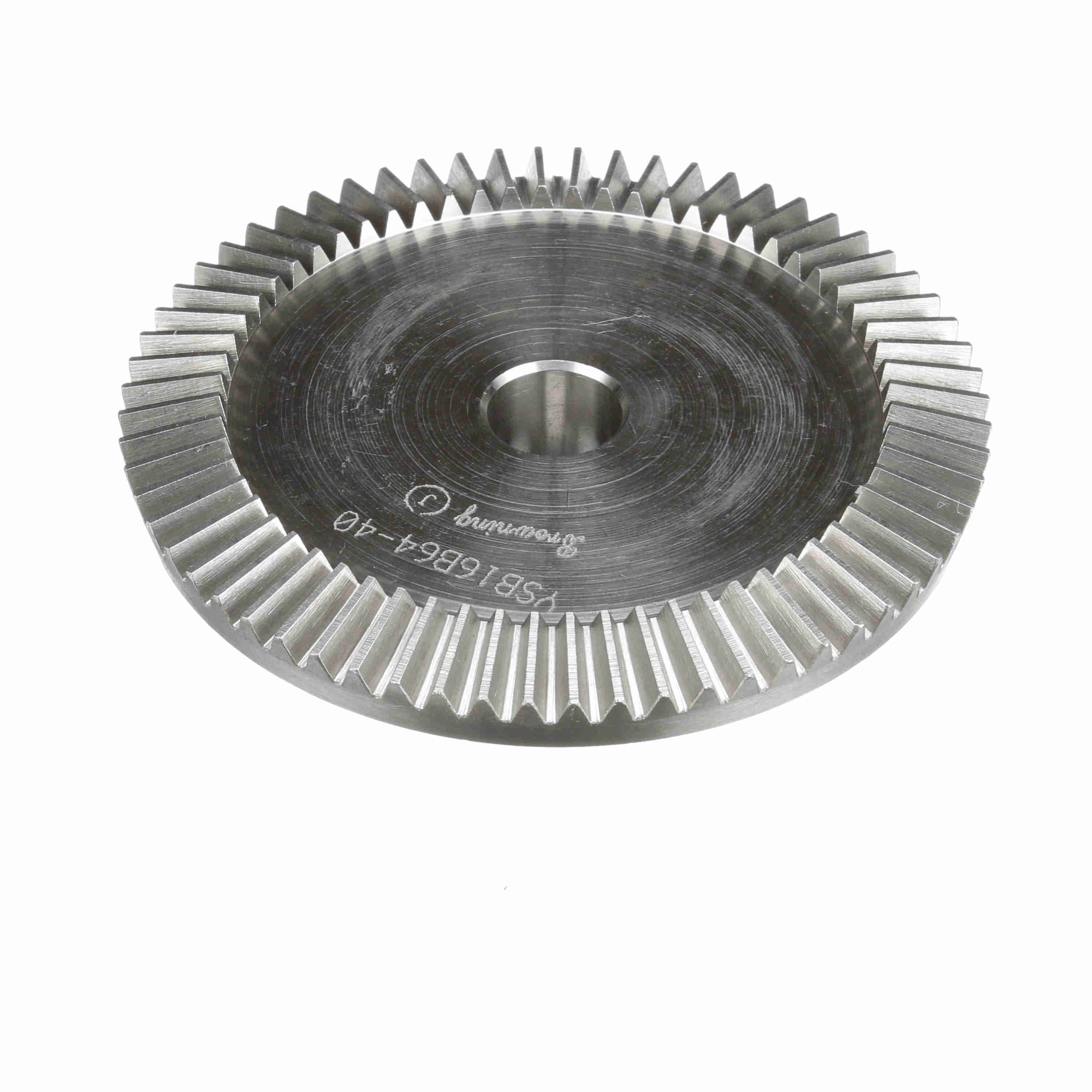

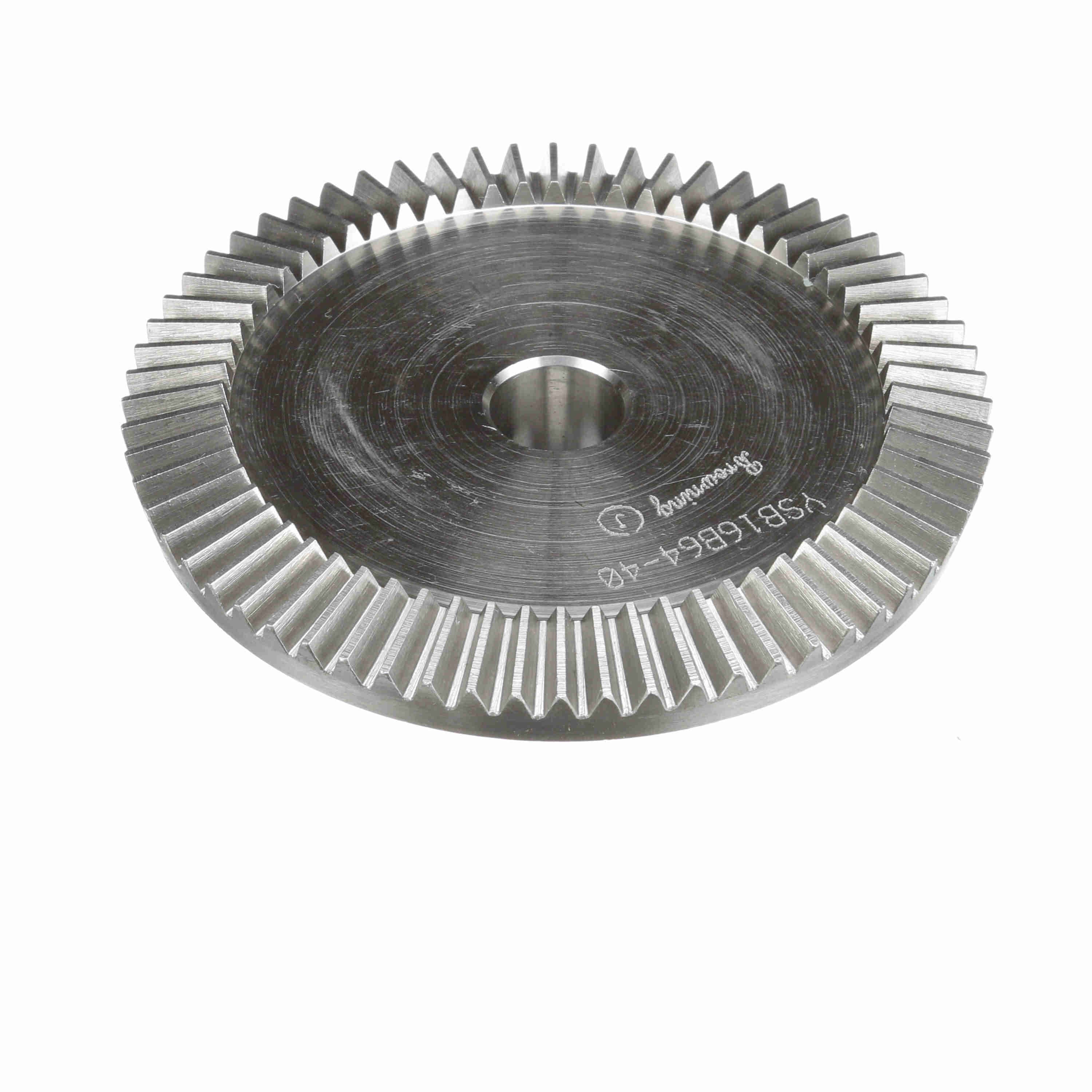

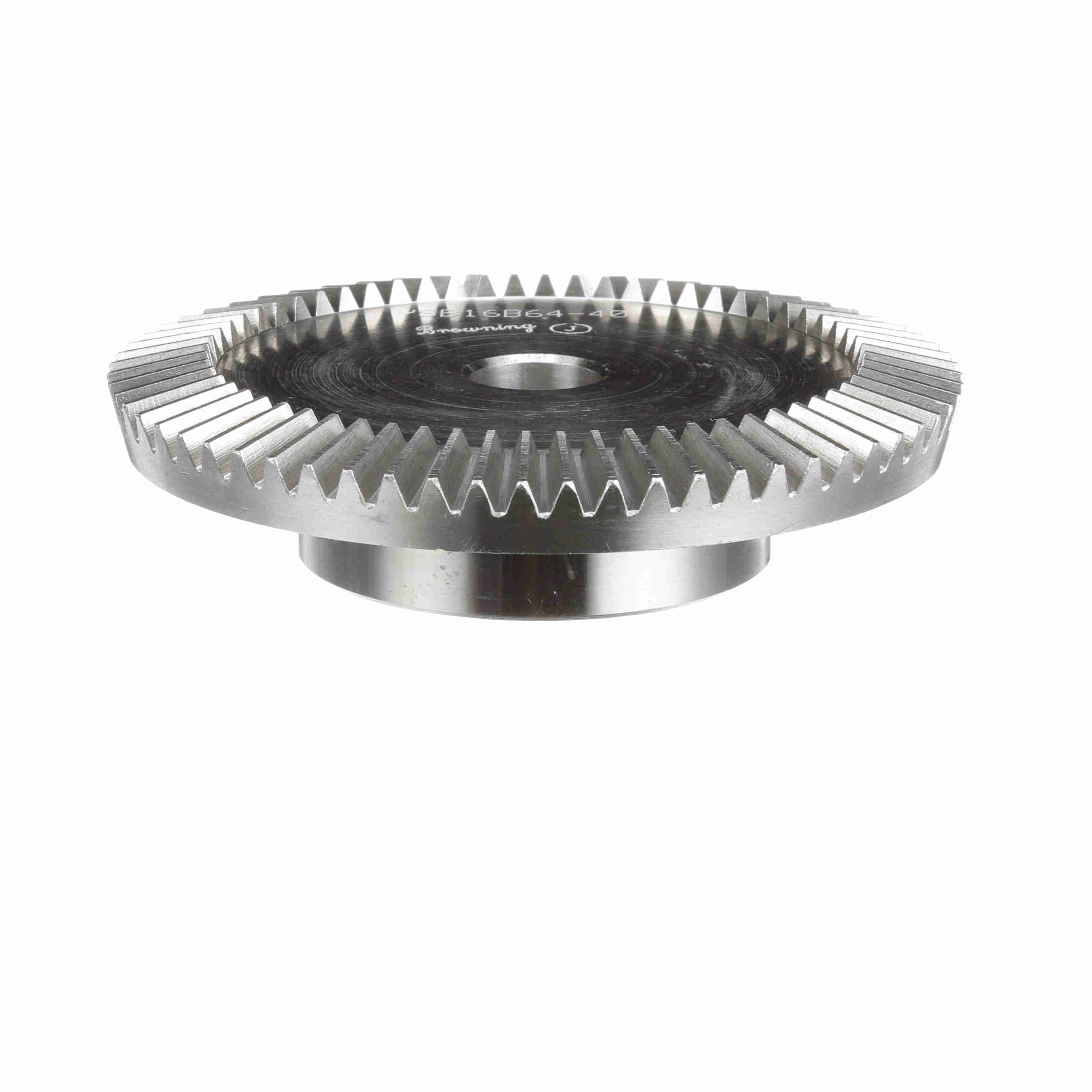

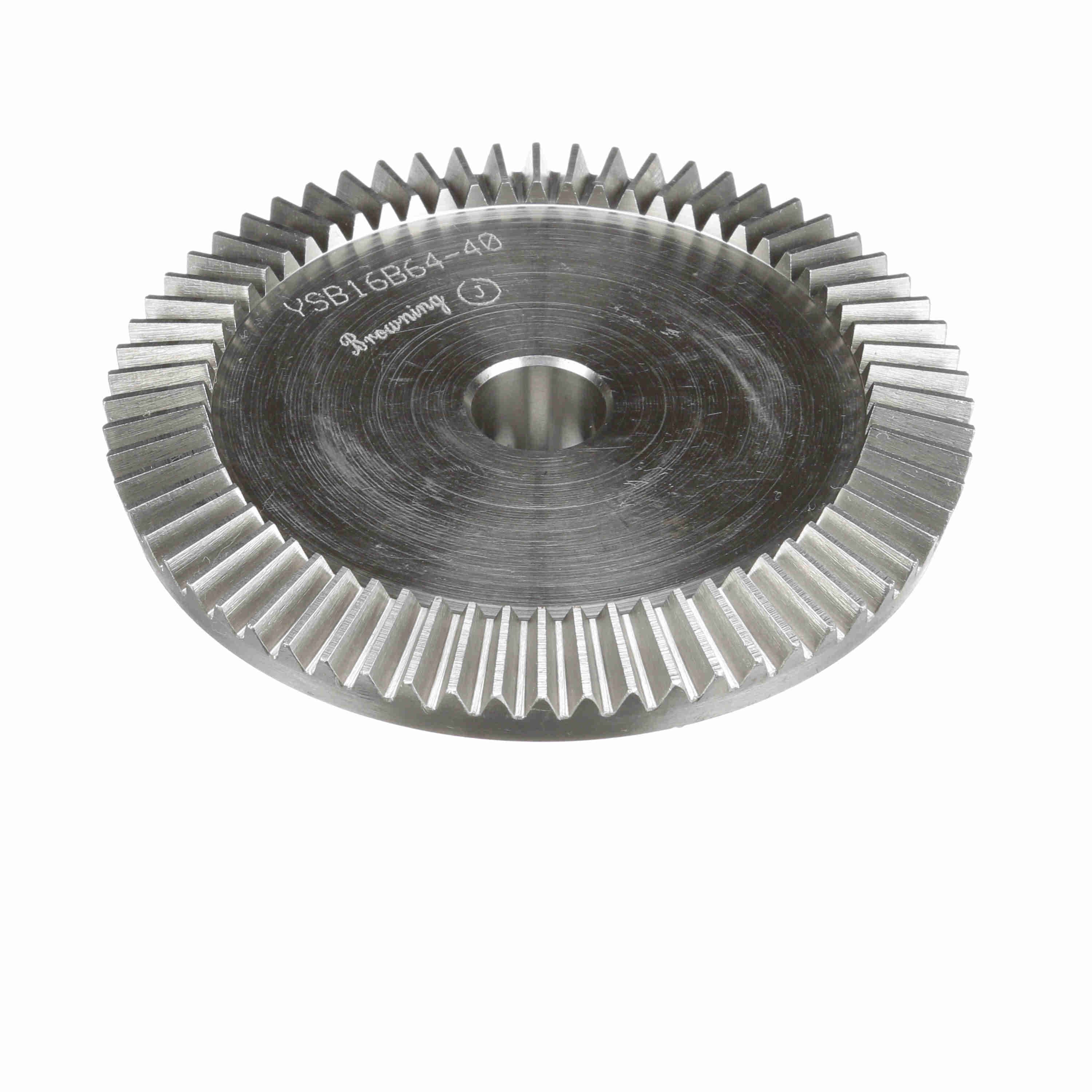

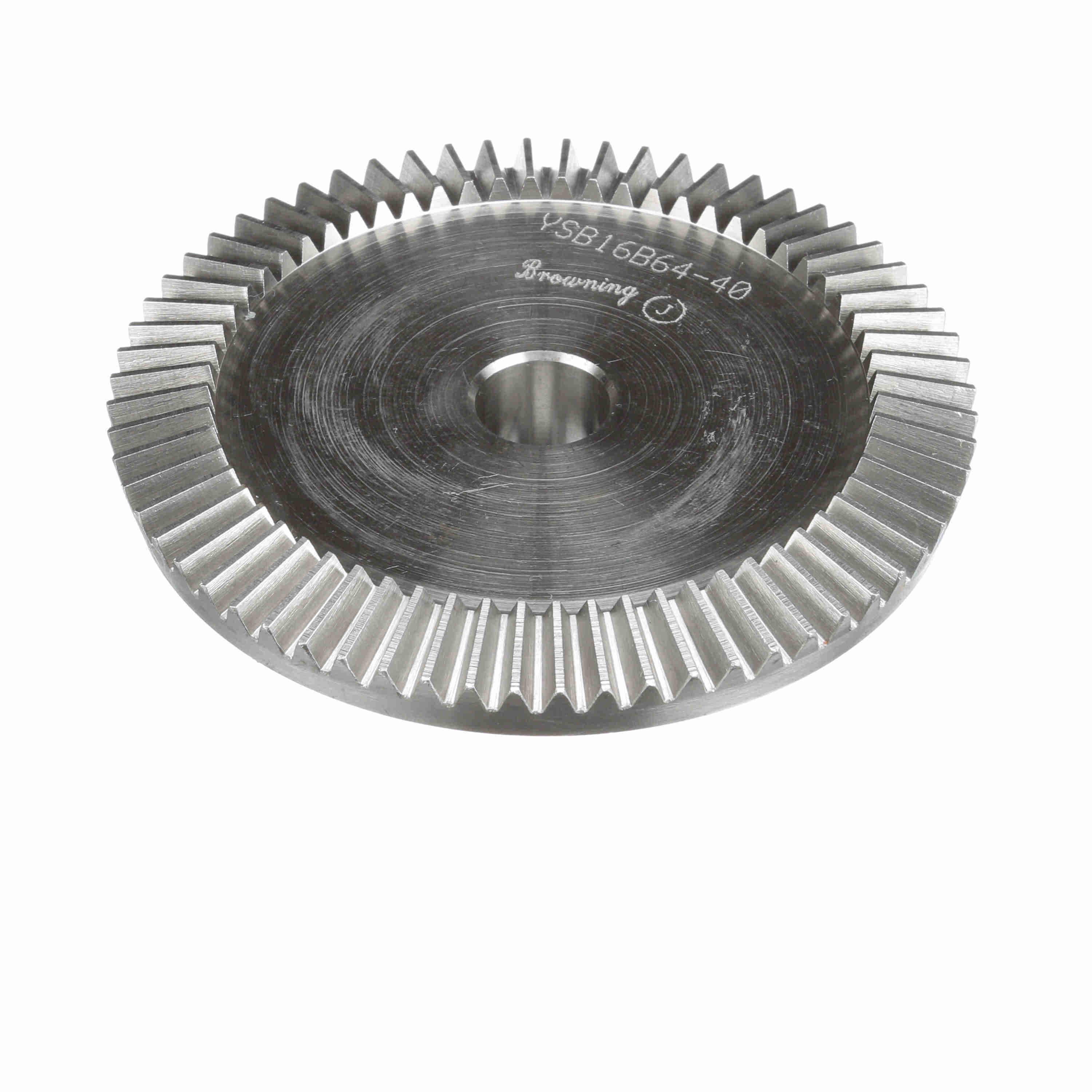

| Product Name | YSB16B64-40 |
| Brand | Browning |
| Material | Steel |
| Weight | 1.8 lb |
| Package Length | 4.5 in |
| Package Width | 4.9 in |
| Package Height | 2.1 in |
| Hub Projection (in) | 0.5625 in |
| Face Width (in) | 0.48 in |
| Diametral Pitch | 16 |
| Pitch Diameter (in) | 4 in |
| Hub Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $600.94 | — |
| 5 – 29 | $584.77 | 3% off |
| 30 – 49 | $520.09 | 13% off |
| 50+ | $473.07 | 21% off |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 2.25 in |
| Number of Teeth/Threads | 64 |
| Pressure Angle | 20 |
| Mounting Distance | 1.375 |
| Bore Type | Minimum Plain Bore |
| Bore (Max) (in) | 1.375 in |
| Bore (Min) (in) | 0.625 in |
| Length Through Bore (in) | 0.890625 in |
| Bore Size (in) | 0.625 in |
| Product Type | Bevel Gear |
| HTC | 8483.40.9000 |
| Country of Origin | India |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-105920 |
| Part NumberiManufacturer catalog number | 1227966 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289164639 |
| CategoryiCatalog classification | Gearing |
