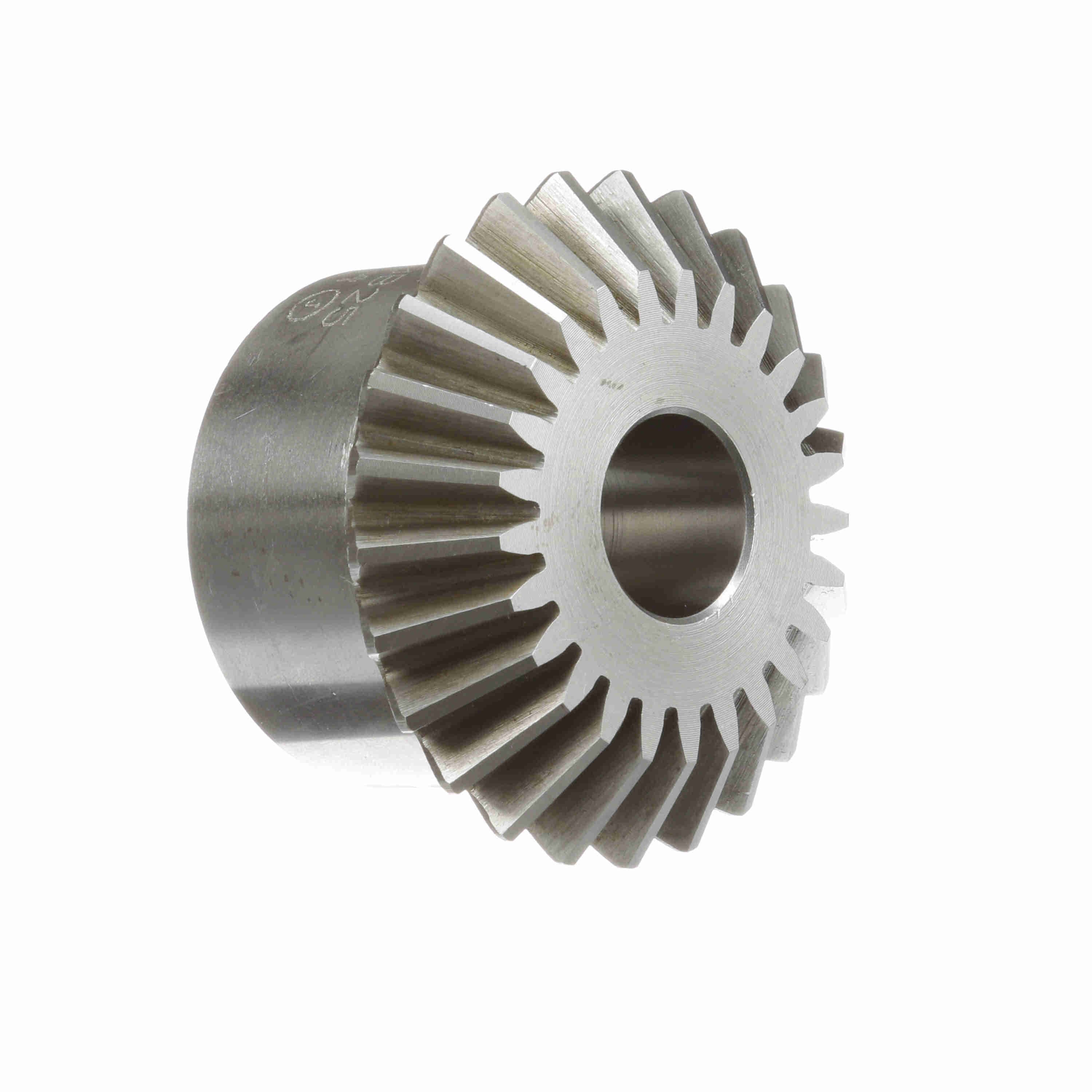

BEVEL/MITER GEARS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1229236 |
| Product Name | YSM10B20 |
| Brand | Browning |
| Material | Steel |
| Weight | 0.75 lb |
| Package Length | 2.56 in |
| Package Width | 2.56 in |
| Package Height | 1.38 in |
| Mounting Distance | 2 |
| Hub Diameter (in) | 1.625 in |
| Face Width (in) | 0.44 in |
| Diametral Pitch | 10 |
| Pitch Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $294.50 | — |
| 5 – 29 | $286.57 | 3% off |
| 30 – 49 | $254.88 | 13% off |
| 50+ | $231.83 | 21% off |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 2 in |
| Hub Projection (in) | 0.8125 in |
| Number of Teeth/Threads | 20 |
| Pressure Angle | 20 |
| Bore (Max) (in) | 0.875 in |
| Bore Type | Minimum Plain Bore |
| Length Through Bore (in) | 1.359375 in |
| Bore (Min) (in) | 0.5 in |
| Product Type | Miter Gear |
| Bore Size (in) | 0.5 in |
| HTC | 8483.40.9000 |
| Country of Origin | India |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-105970 |
| Part NumberiManufacturer catalog number | 1229236 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289126842 |
| CategoryiCatalog classification | Gearing |
