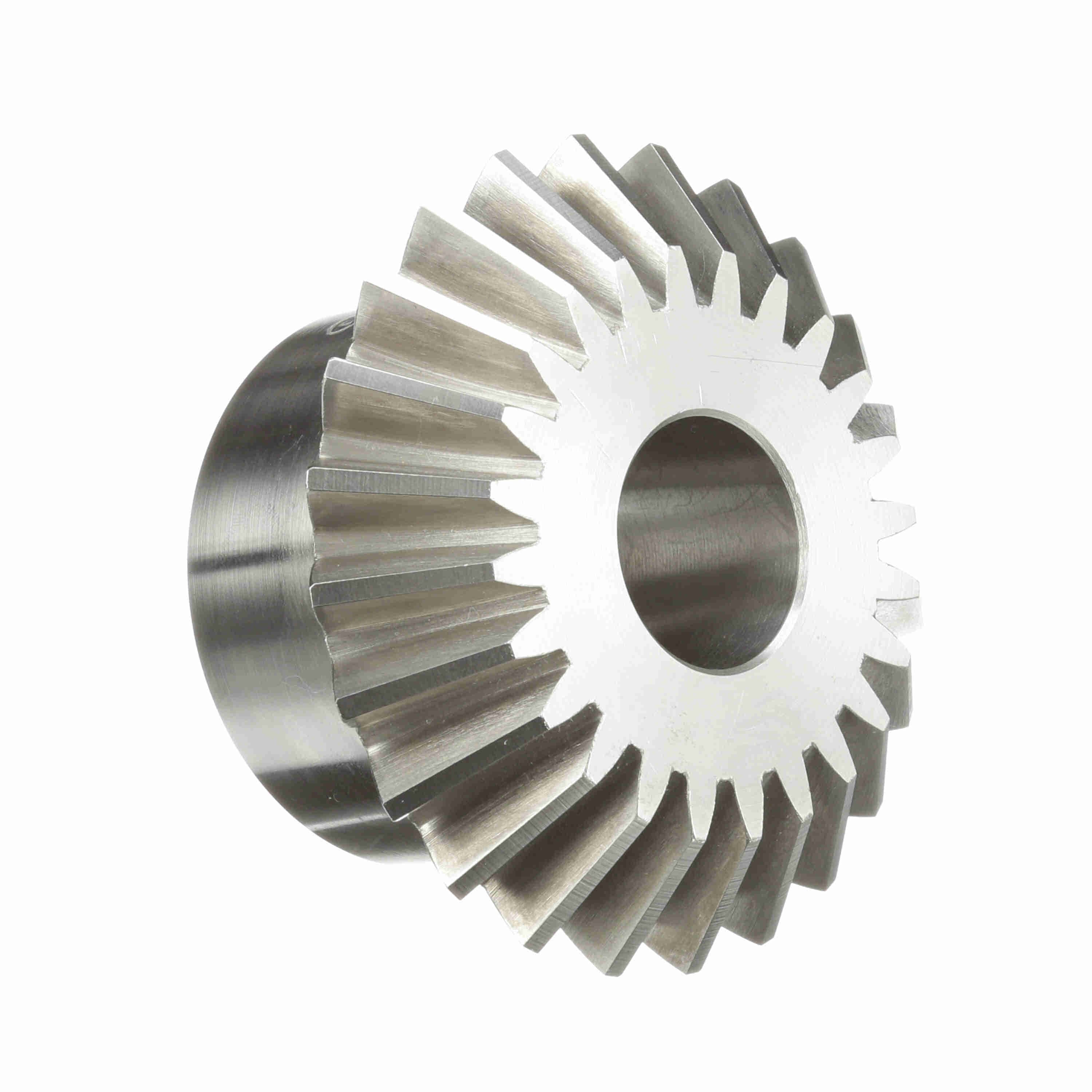

BEVEL/MITER GEARS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1229392 |
| Product Name | YSM5B25 |
| Brand | Browning |
| Material | Steel |
| Weight | 8.75 lb |
| Package Length | 6.06 in |
| Package Width | 6.06 in |
| Package Height | 3.25 in |
| Number of Teeth/Threads | 25 |
| Pressure Angle | 20 |
| Hub Diameter (in) | 3.5 in |
| Hub Projection (in) | 1.75 in |
| Mounting Distance |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $1480.49 | — |
| 5 – 29 | $1440.66 | 3% off |
| 30 – 49 | $1281.32 | 13% off |
| 50+ | $1165.46 | 21% off |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 4.625 |
| Face Width (in) | 1.1 in |
| Pitch Diameter (in) | 5 in |
| Diametral Pitch | 5 |
| Bore Type | Minimum Plain Bore |
| Bore (Max) (in) | 2.25 in |
| Bore (Min) (in) | 1.375 in |
| Length Through Bore (in) | 3 in |
| Hub Type | Type B |
| Bushing Bore size (in) | 1.3750 to 2.2500 in |
| Product Type | Miter Gear |
| Bore Size (in) | 1.375 in |
| Gear Construction | Plain |
| HTC | 8483.40.9000 |
| Country of Origin | India |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-105982 |
| Part NumberiManufacturer catalog number | 1229392 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289116966 |
| CategoryiCatalog classification | Gearing |
