BEVEL/MITER GEARS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1229731 |
| Product Name | YSMS7F21LHX1 |
| Brand | Browning |
| Material | Steel |
| Weight | 1.92 lb |
| Package Length | 4.06 in |
| Package Width | 4.06 in |
| Package Height | 1.88 in |
| Diametral Pitch | 7 |
| Face Width (in) | 0.68 in |
| Hub Diameter (in) | 2.25 in |
| Hub Projection (in) | 0.875 in |
| Number of Teeth/Threads |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $1313.45 | — |
| 5 – 29 | $1278.11 | 3% off |
| 30 – 49 | $1136.74 | 13% off |
| 50+ | $1033.96 | 21% off |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 21 |
| Mounting Distance | 2.75 |
| Pressure Angle | 20 |
| Lead/Helix Angle | 35 |
| Pitch Diameter (in) | 3 in |
| Length Through Bore (in) | 1.78125 in |
| Bore Type | Finished Bore |
| Bore (Max) (in) | 1 in |
| Bore (Min) (in) | 1 in |

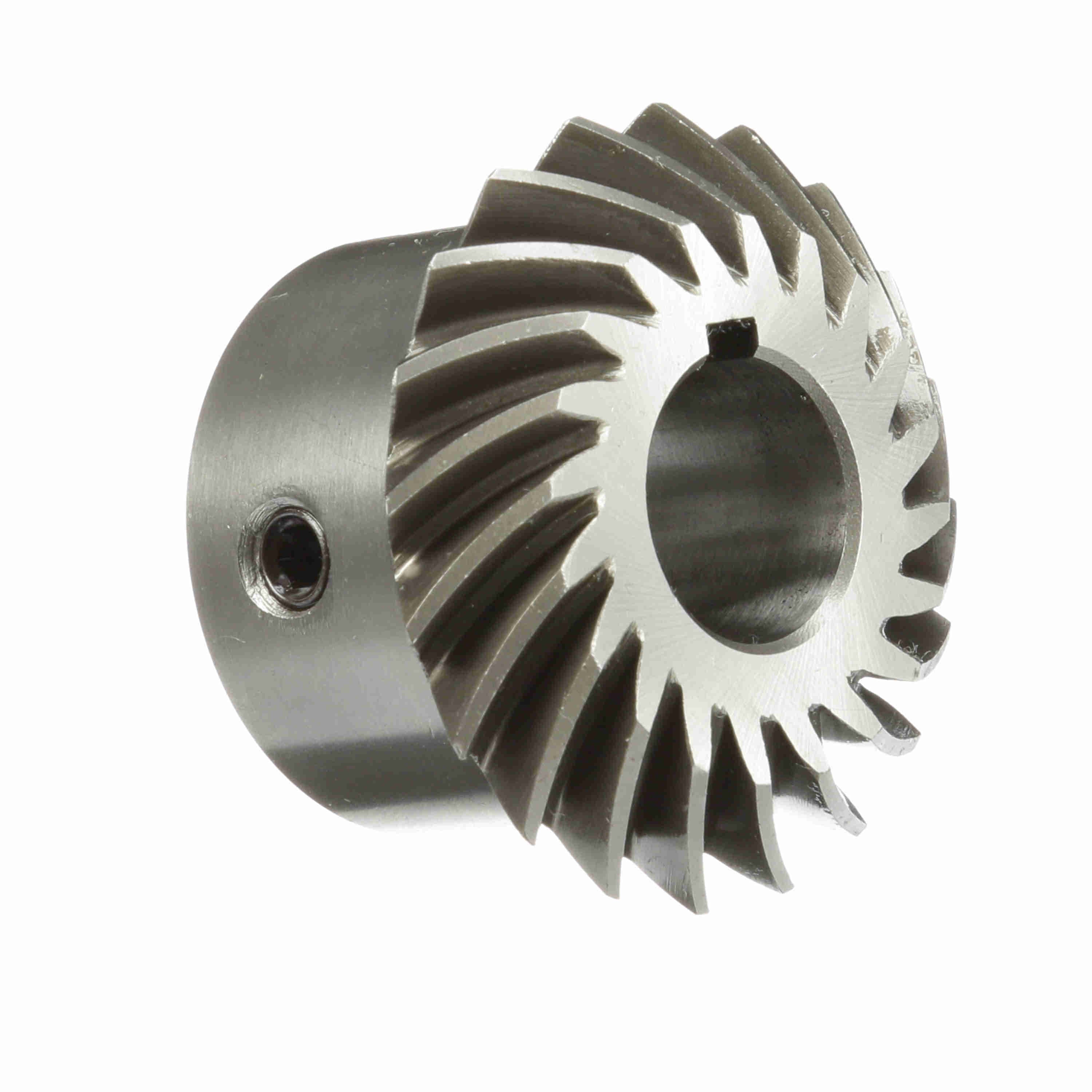

| Product Type | Spiral Miter Gear |
| Bore Size (in) | 1 in |
| Spiral Gear Hand Direction | LEFT |
| HTC | 8483.40.9000 |
| Country of Origin | India |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-106000 |
| Part NumberiManufacturer catalog number | 1229731 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289227372 |
| CategoryiCatalog classification | Gearing |
