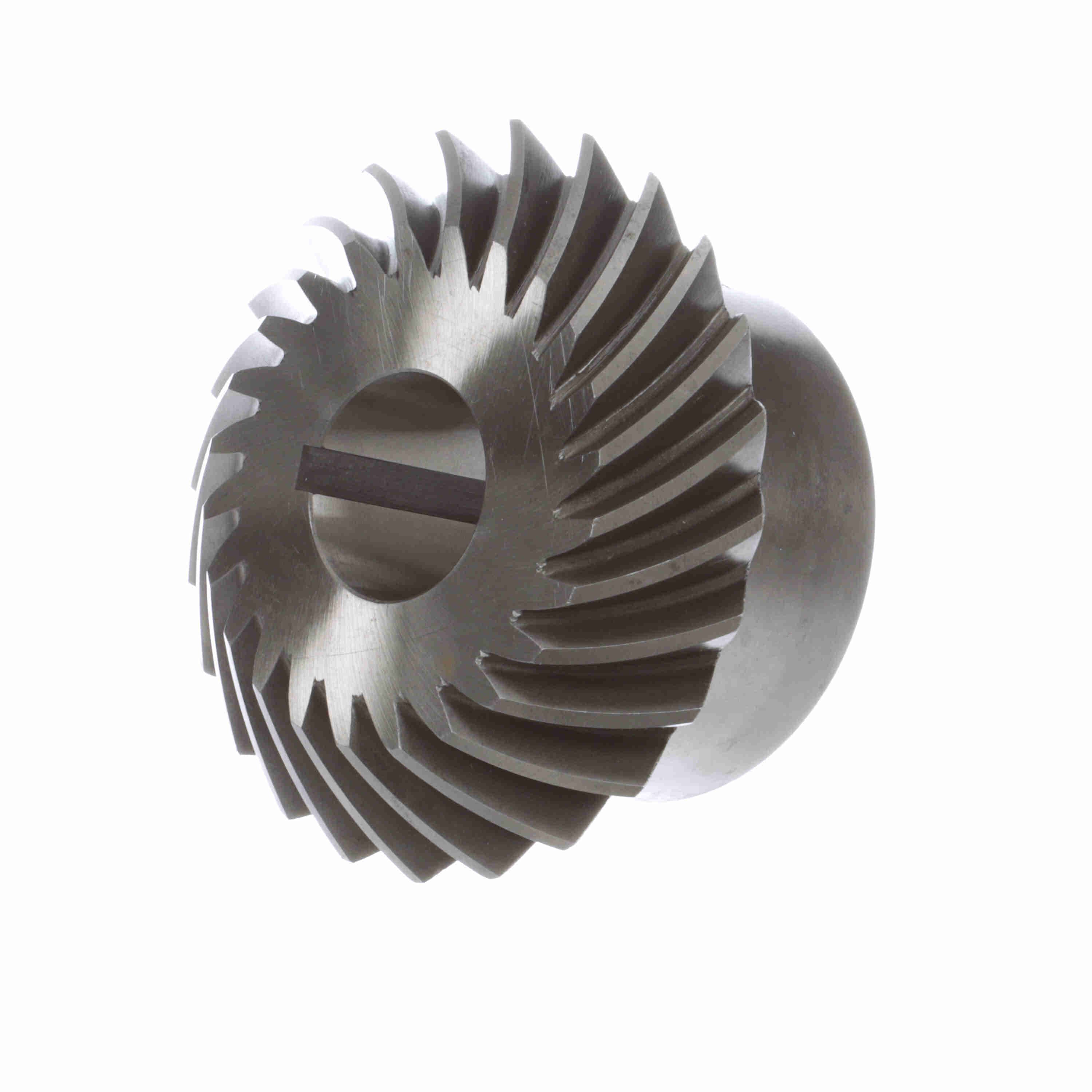

BEVEL/MITER GEARS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1229756 |
| Product Name | YSMS6F24LHX 1 1/4 |
| Brand | Browning |
| Material | Steel |
| Weight | 4.56 lb |
| Package Length | 4.25 in |
| Package Width | 4.25 in |
| Package Height | 2.94 in |
| Hub Diameter (in) | 3 in |
| Mounting Distance | 3.625 |
| Face Width (in) | 0.89 in |
| Number of Teeth/Threads | 24 |
| Pitch Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $2706.28 | — |
| 5 – 29 | $2633.46 | 3% off |
| 30 – 49 | $2342.19 | 13% off |
| 50+ | $2130.42 | 21% off |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 4 in |
| Diametral Pitch | 6 |
| Lead/Helix Angle | 35 |
| Pressure Angle | 20 |
| Hub Projection (in) | 1.3125 in |
| Length Through Bore (in) | 2.3125 in |
| Bore (Max) (in) | 1.25 in |
| Bore (Min) (in) | 1.25 in |
| Bore Type | Finished Bore |
| Product Type | Spiral Miter Gear |
| Spiral Gear Hand Direction | LEFT |
| Bore Size (in) | 1.25 in |
| HTC | 8483.40.9000 |
| Country of Origin | India |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-106002 |
| Part NumberiManufacturer catalog number | 1229756 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289287321 |
| CategoryiCatalog classification | Gearing |
