BMD JAR
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

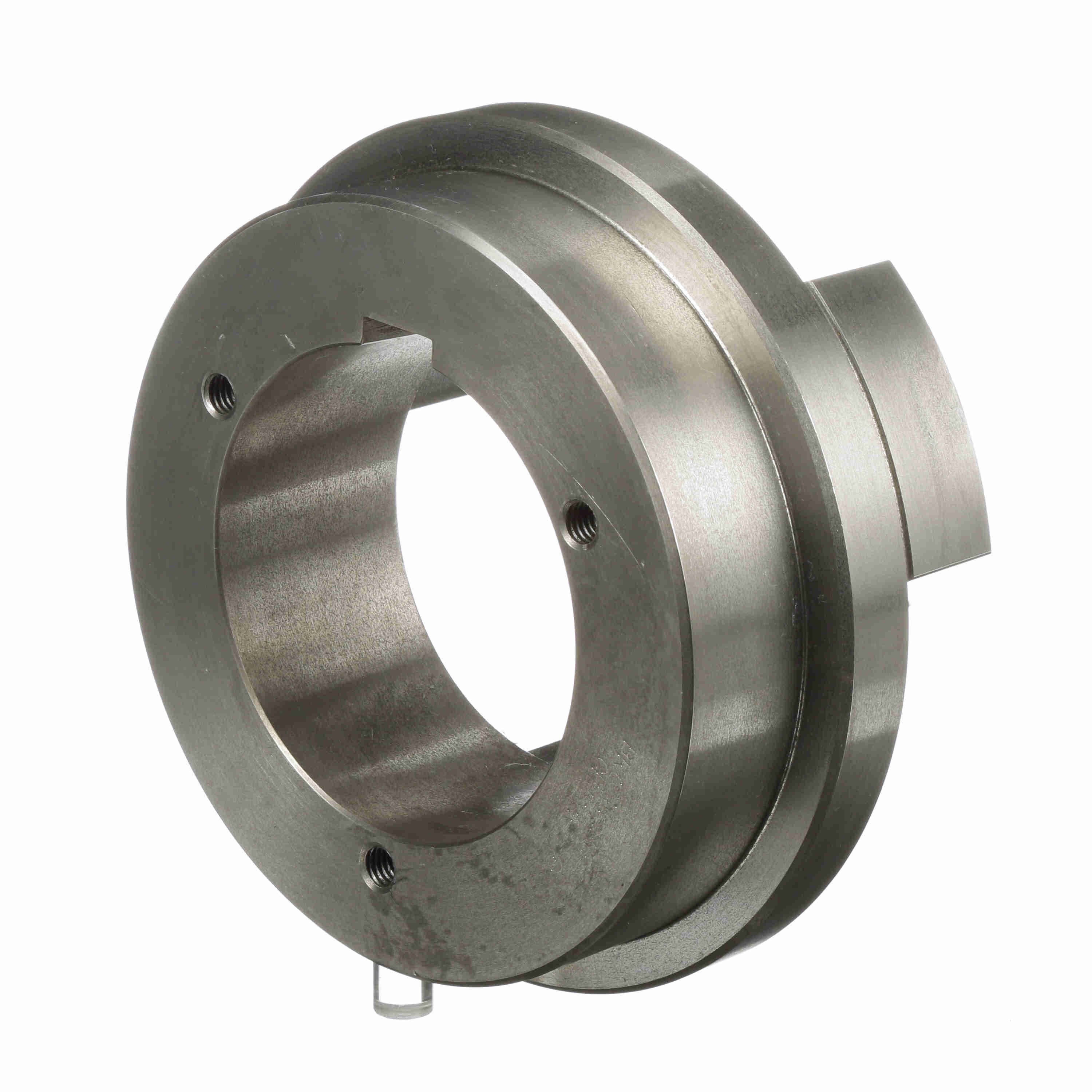

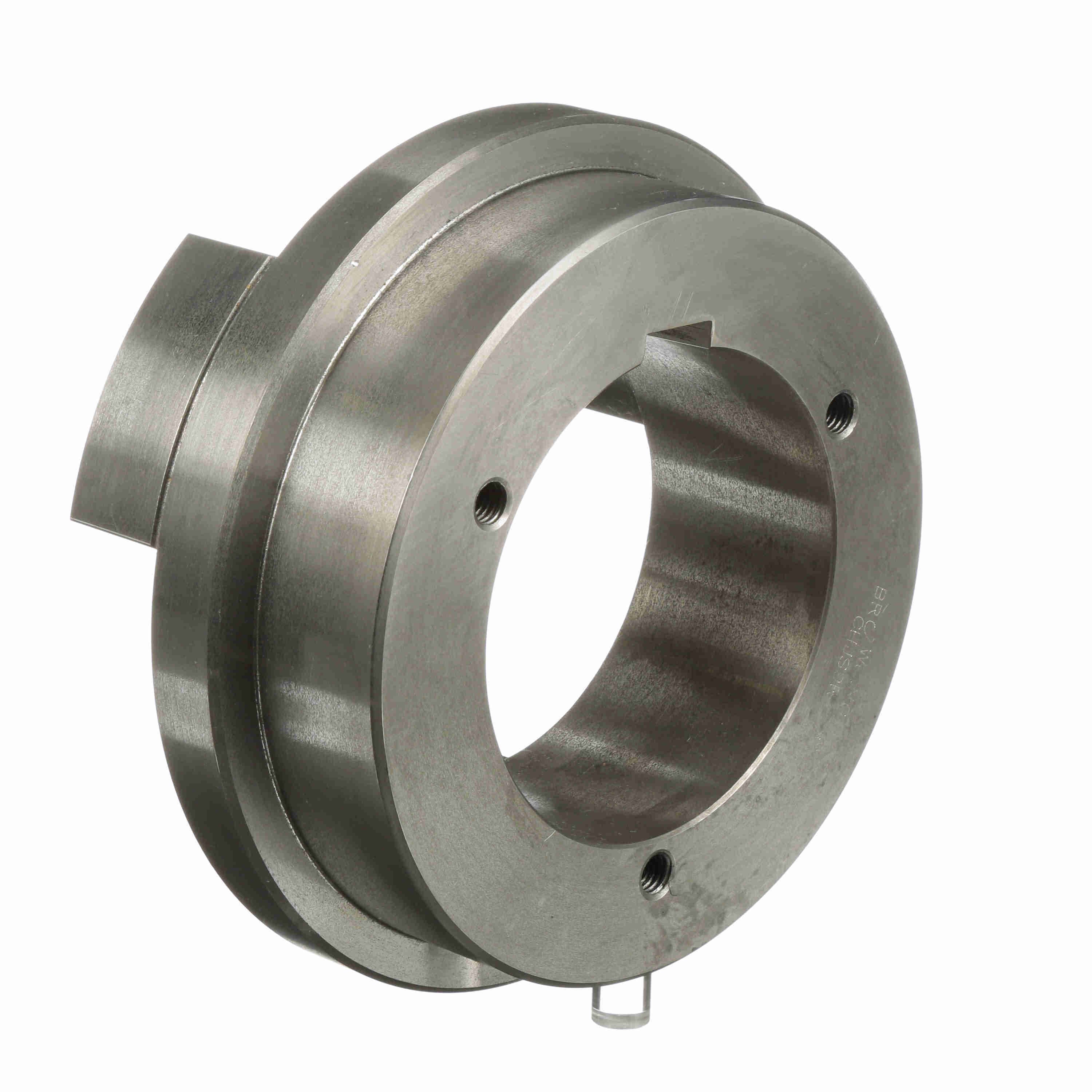

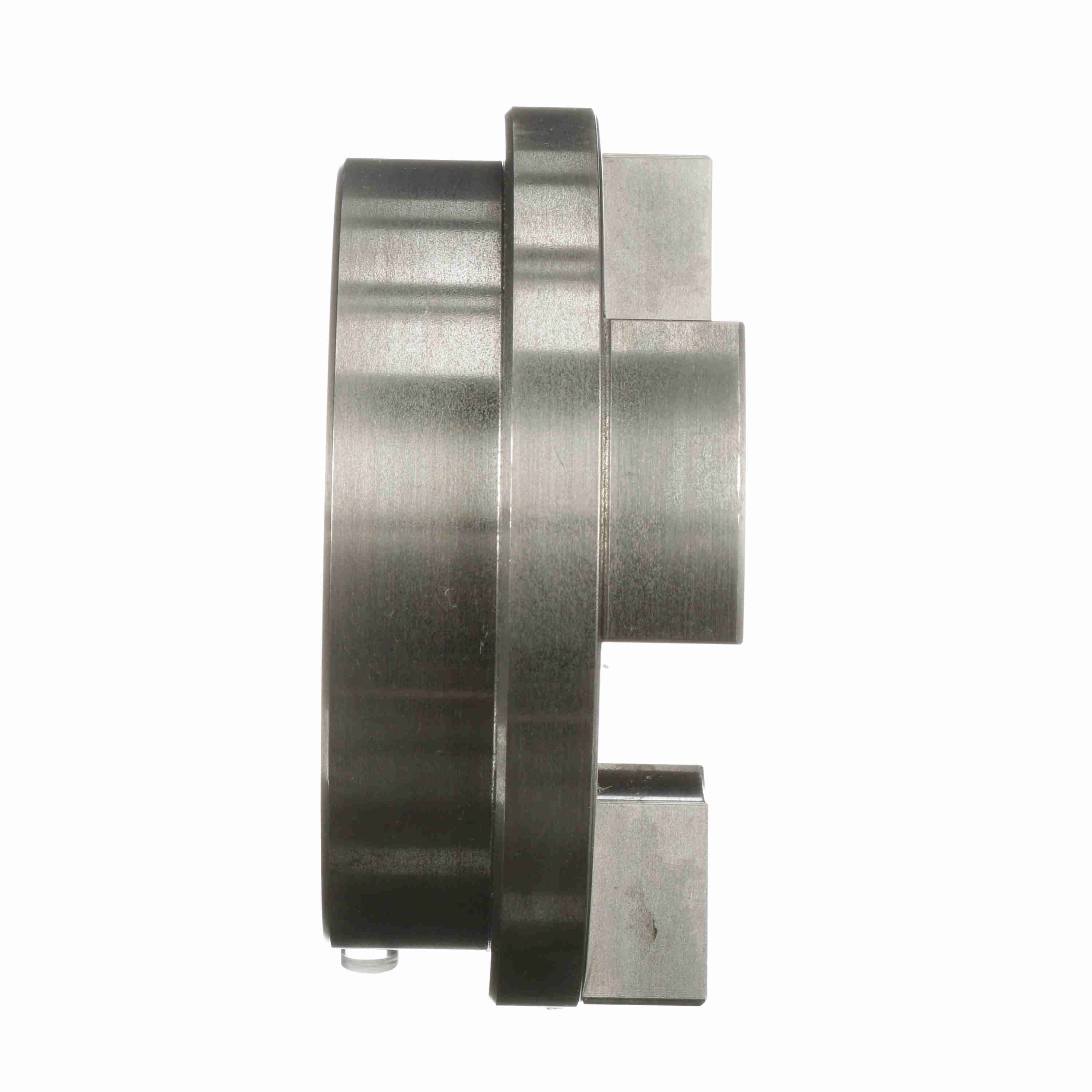

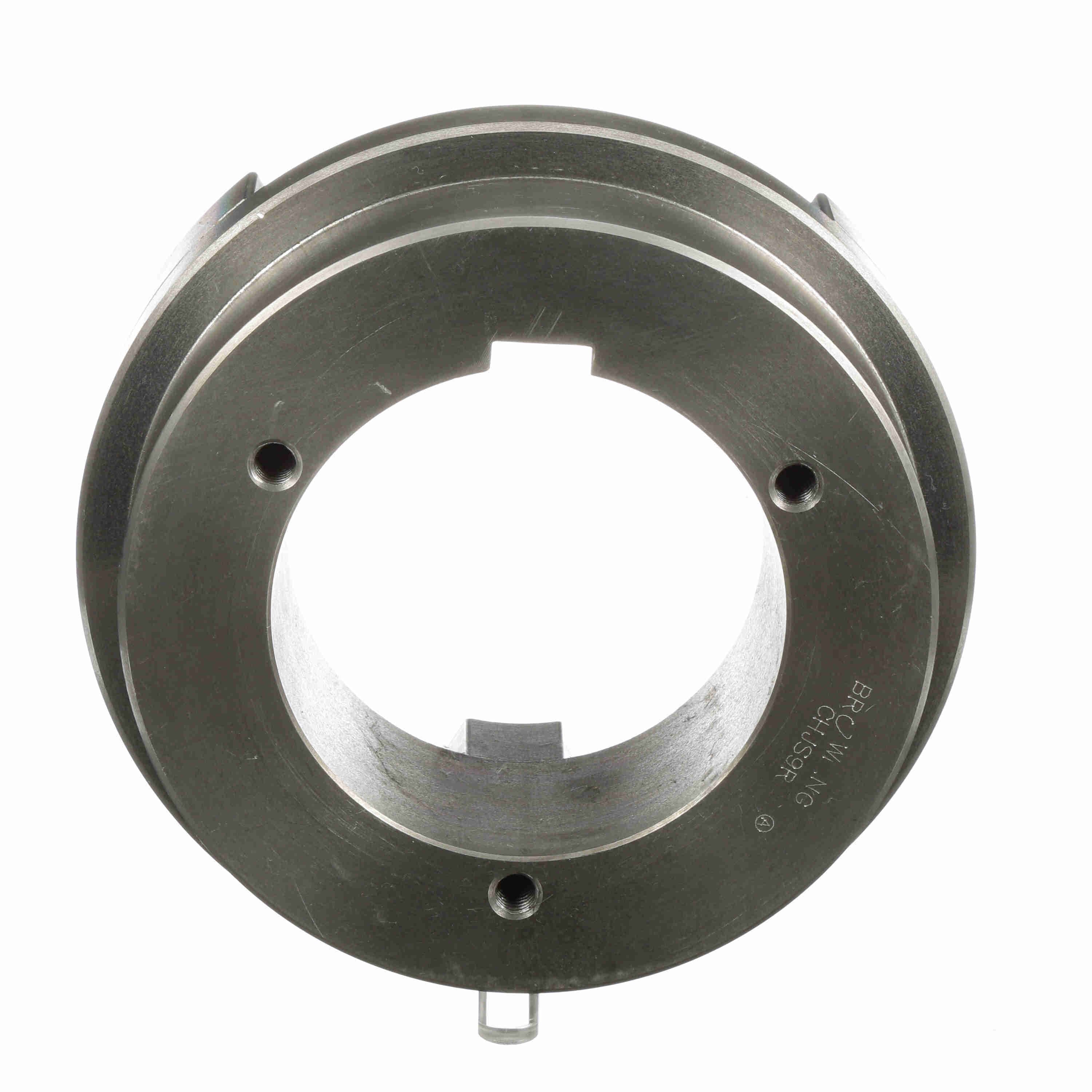

| Part Number | 1237692 |
| Product Name | CHJS9R |
| Brand | Browning |
| Material | Steel |
| Weight | 14.505 lb |
| Package Length | 9.2 in |
| Package Width | 9.1 in |
| Package Height | 5.4 in |
| Bore Size Max (in) | 3.75 in |
| Bore Size Min (in) | 1.125 in |
| Bore Type | Bushed |
| Compatible Bore Size [Min] (in) | 1.125 in |
| Coupling Size |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $993.70 | — |
| 5 – 9 | $921.44 | 7% off |
| 10+ | $869.68 | 12% off |
| JS9 |
| Coupling Type | Jaw Coupling |
| Length Through Bore (in) | 2.9375 in |
| Lube/Non-Lube | Non-Lubricated |
| Measurement System | Imperial |
| Model | JS |
| Speed Max (rpm) | 600 rpm |
| Torque Rating (in-lb) | 6,512.583 in/lbs |
| HTC | 8483.60.8000 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-106039 |
| Part NumberiManufacturer catalog number | 1237692 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289238514 |
| CategoryiCatalog classification | Couplings |
