R2 ACCESS 80&ABOVE-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 127800 |

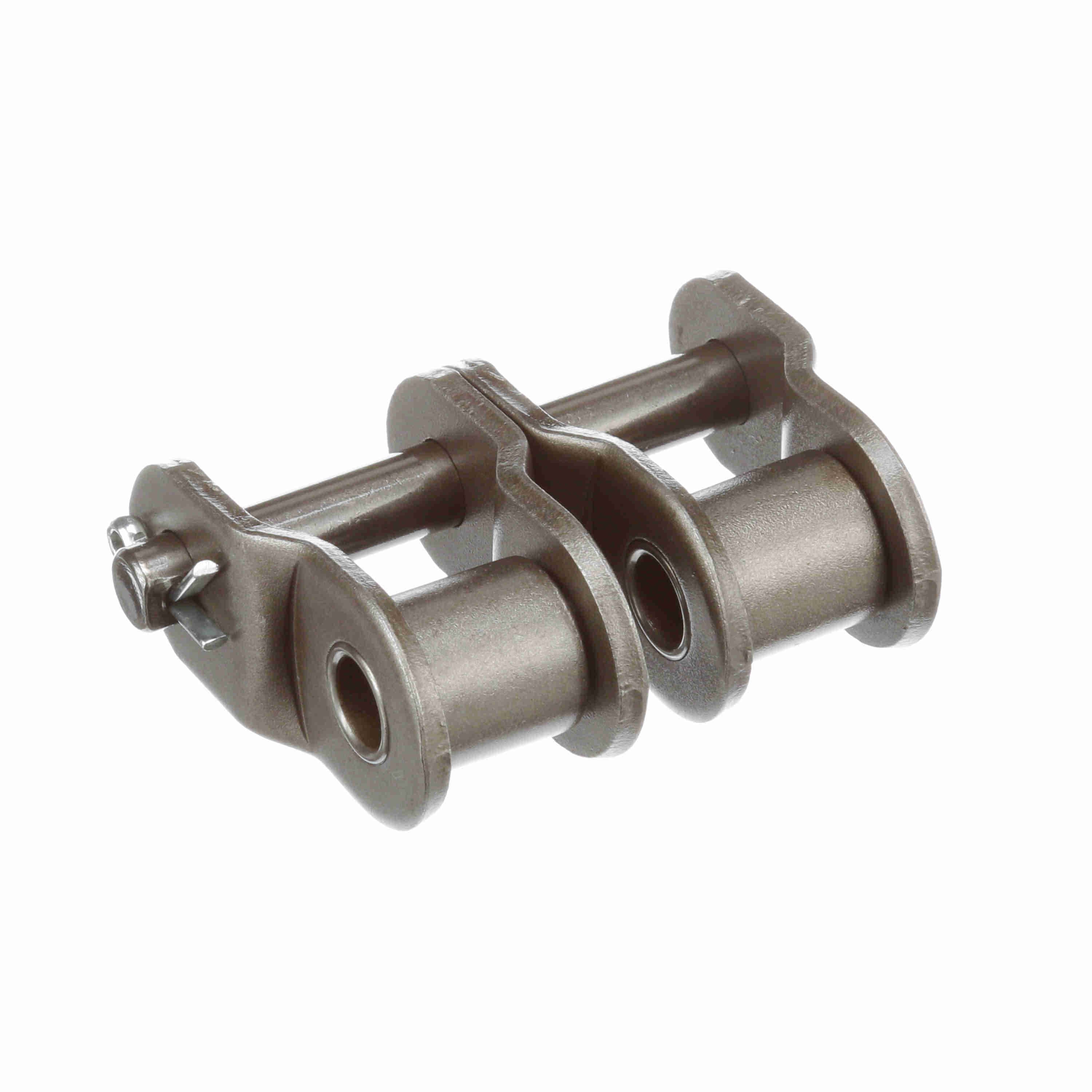

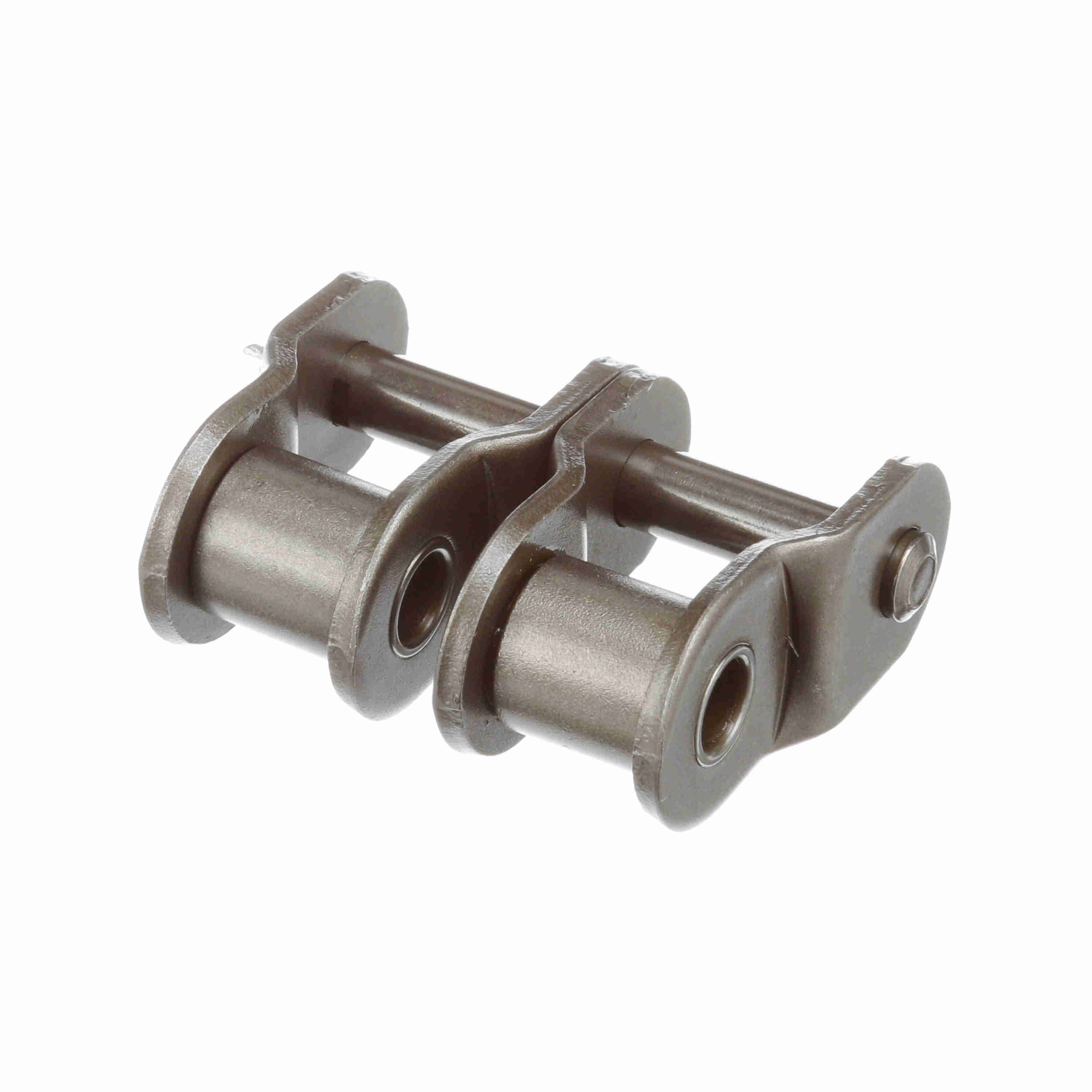

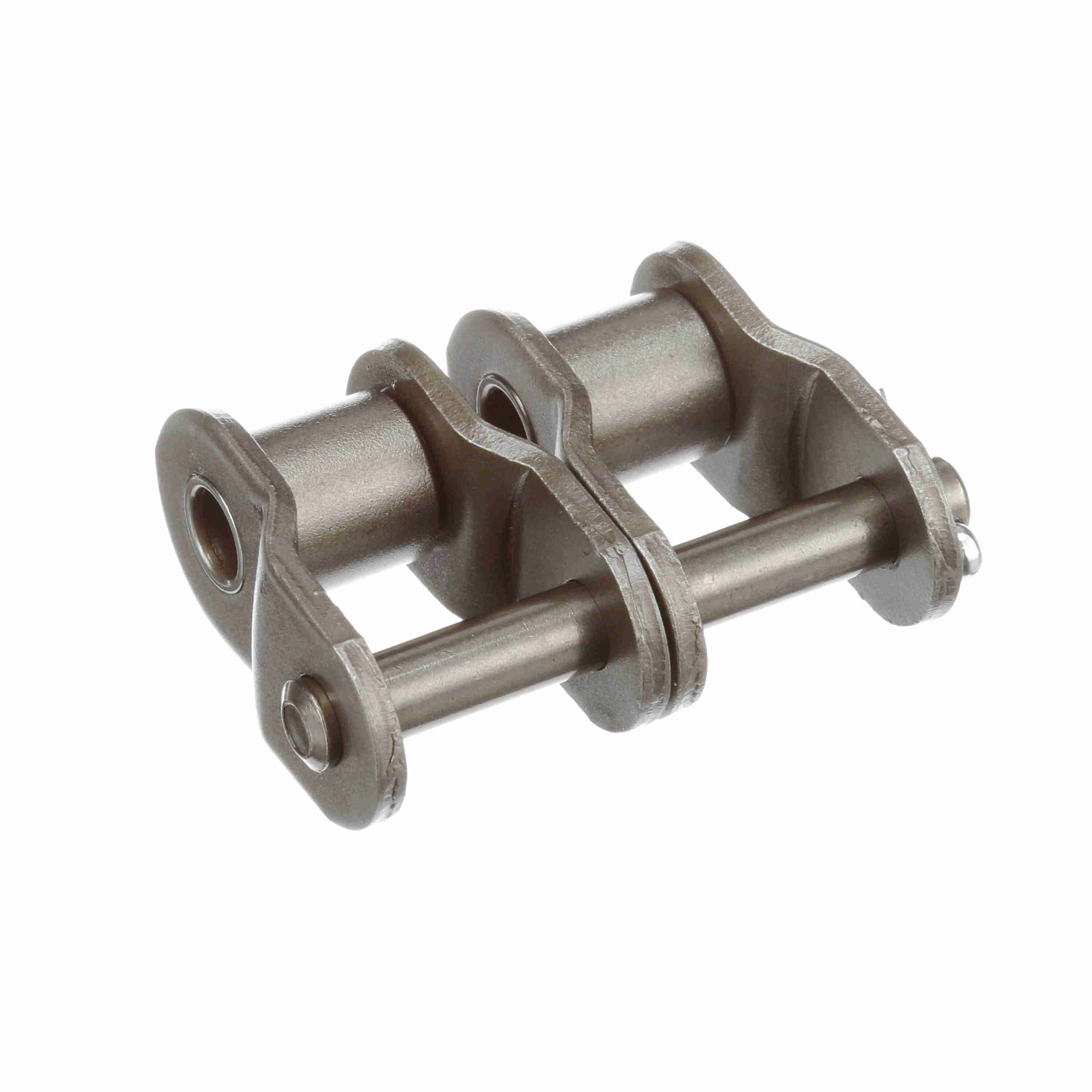

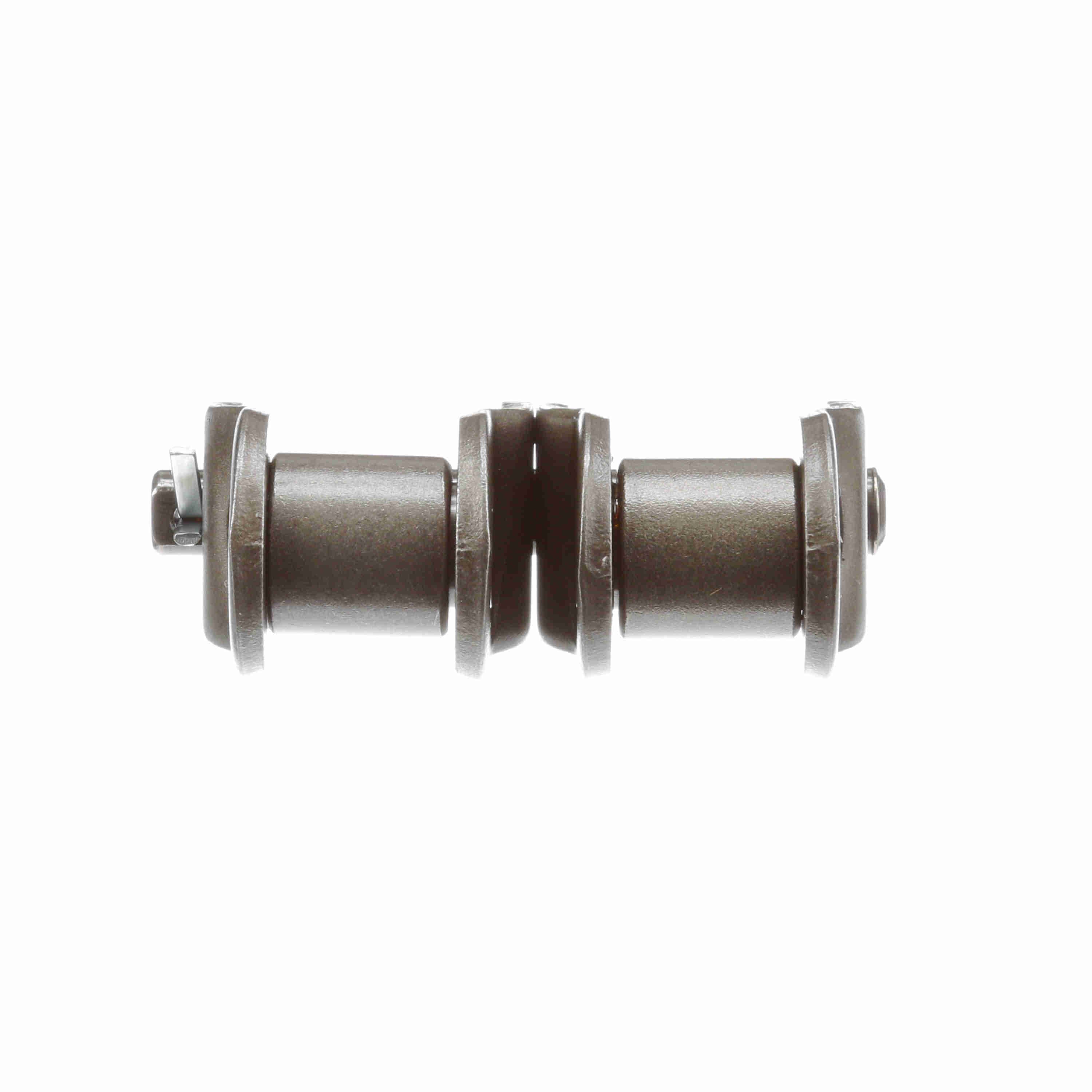

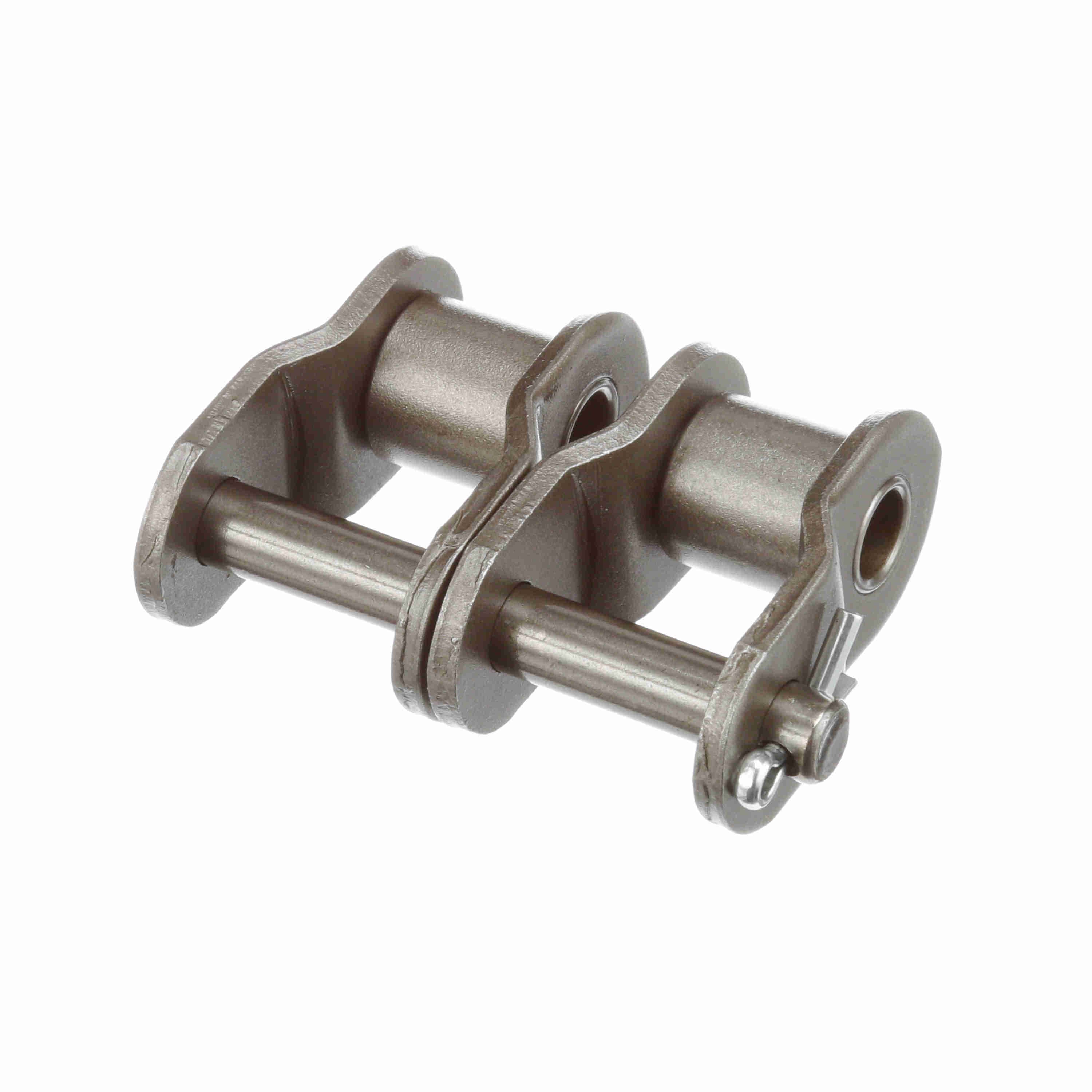

| Product Name | 80-2 O/L |
| Brand | Morse |
| Material | Steel |
| Weight | 0.725 lb |
| Package Length | 3.35 in |
| Package Width | 2.65 in |
| Package Height | 1.25 in |
| Pin Diameter (in) | 0.312 in |
| Roller Diameter (in) | 0.625 in |
| Number of Strands/Width | 2 |
| Roller Width (in) | 0.625 in |
| Chain Size |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $127.37 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 80 |
| Chain Pitch (in) | 1 in |
| Product Type | Roller Chain |
| Chain Type | Standard |
| Link Type | Offset Link |
| Plate Thickness (in) | 0.125 in |
| Inside Plate Height (in) | 0.934 in |
| Side Plate Configuration | Hourglass |
| Overall Width/Pin Length (in) | 2.43 in |
| HTC | 7315.19.0000 |
| Country of Origin | Taiwan, Republic of China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-106093 |
| Part NumberiManufacturer catalog number | 127800 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288395560 |
| CategoryiCatalog classification | Power Transmission > Chain Accessories |
