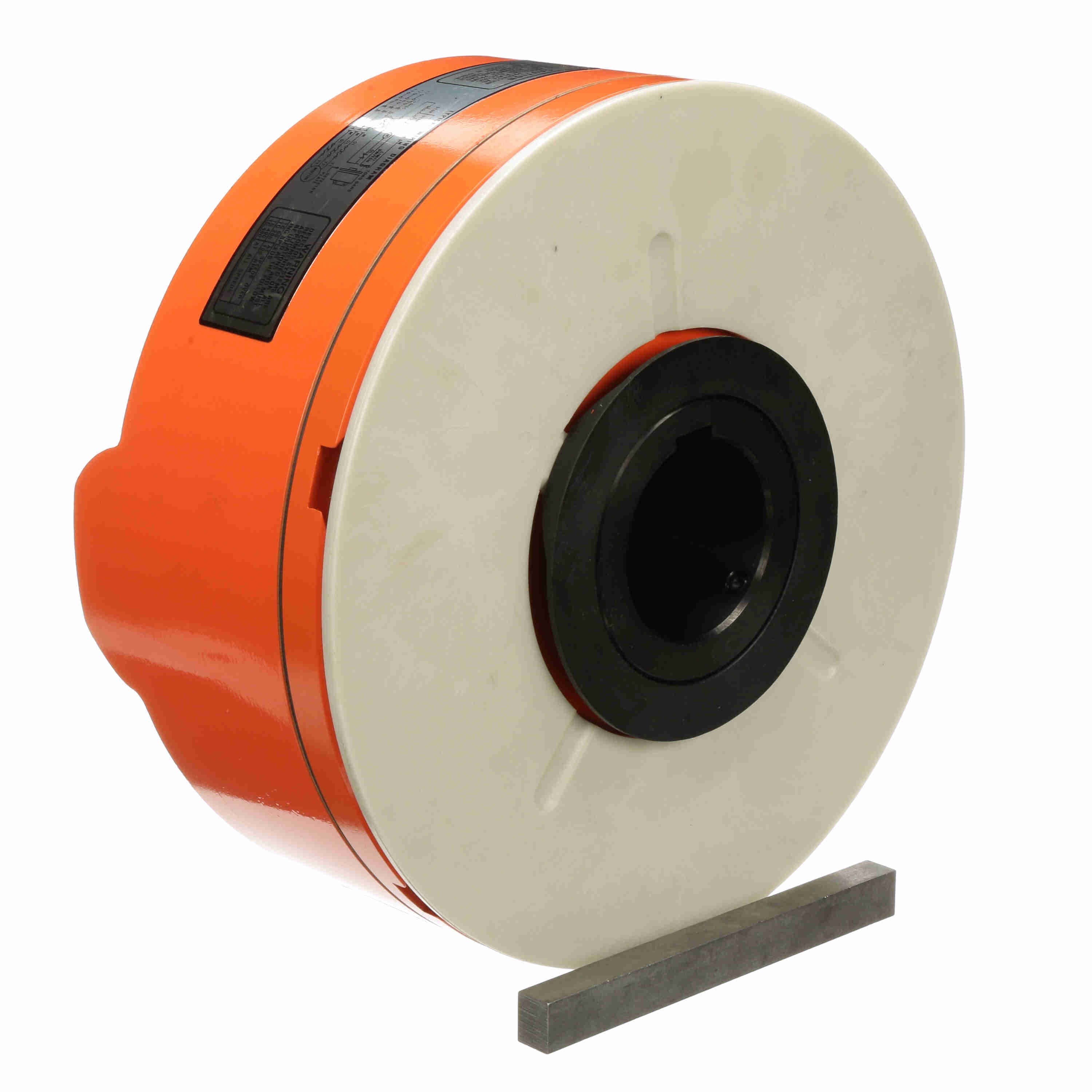

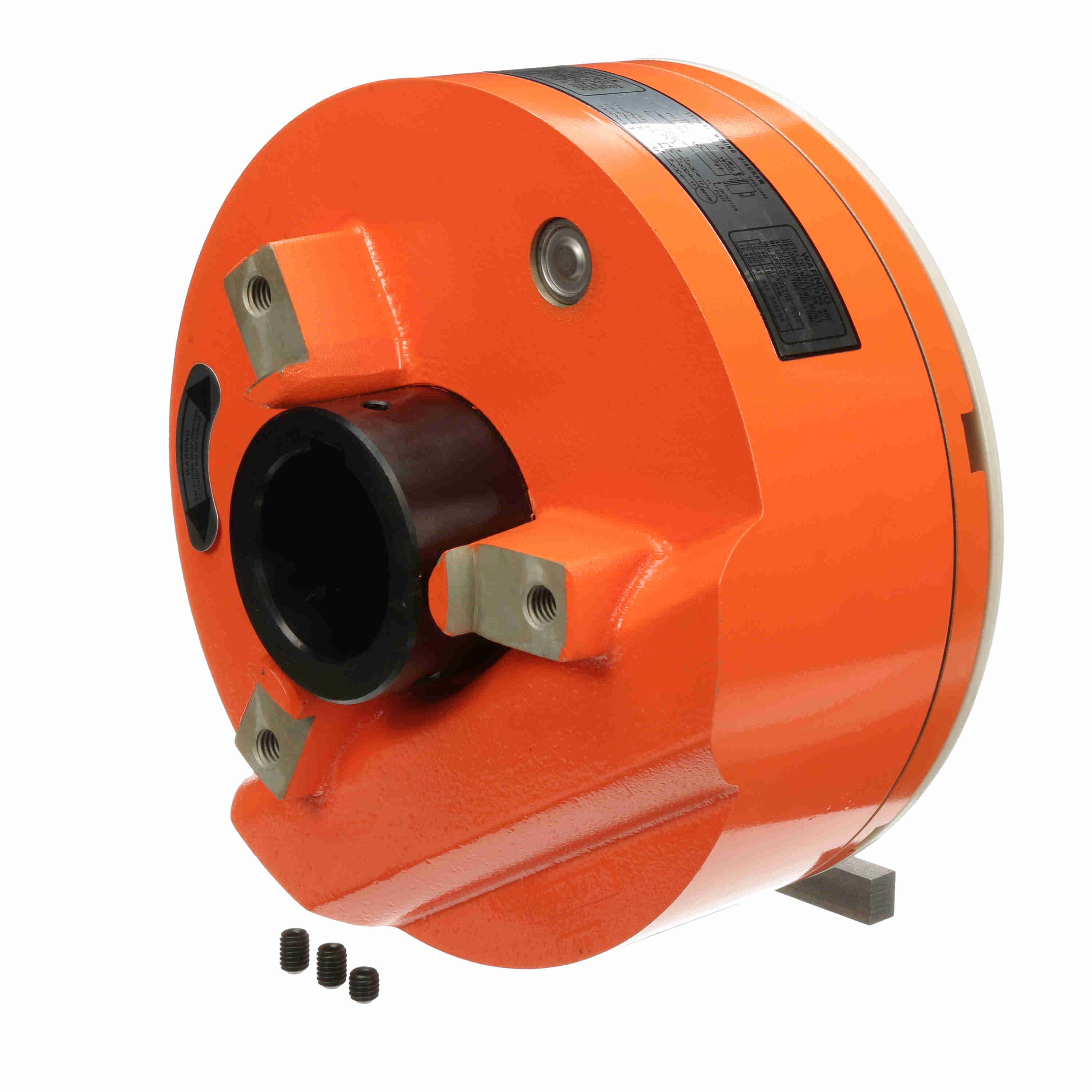

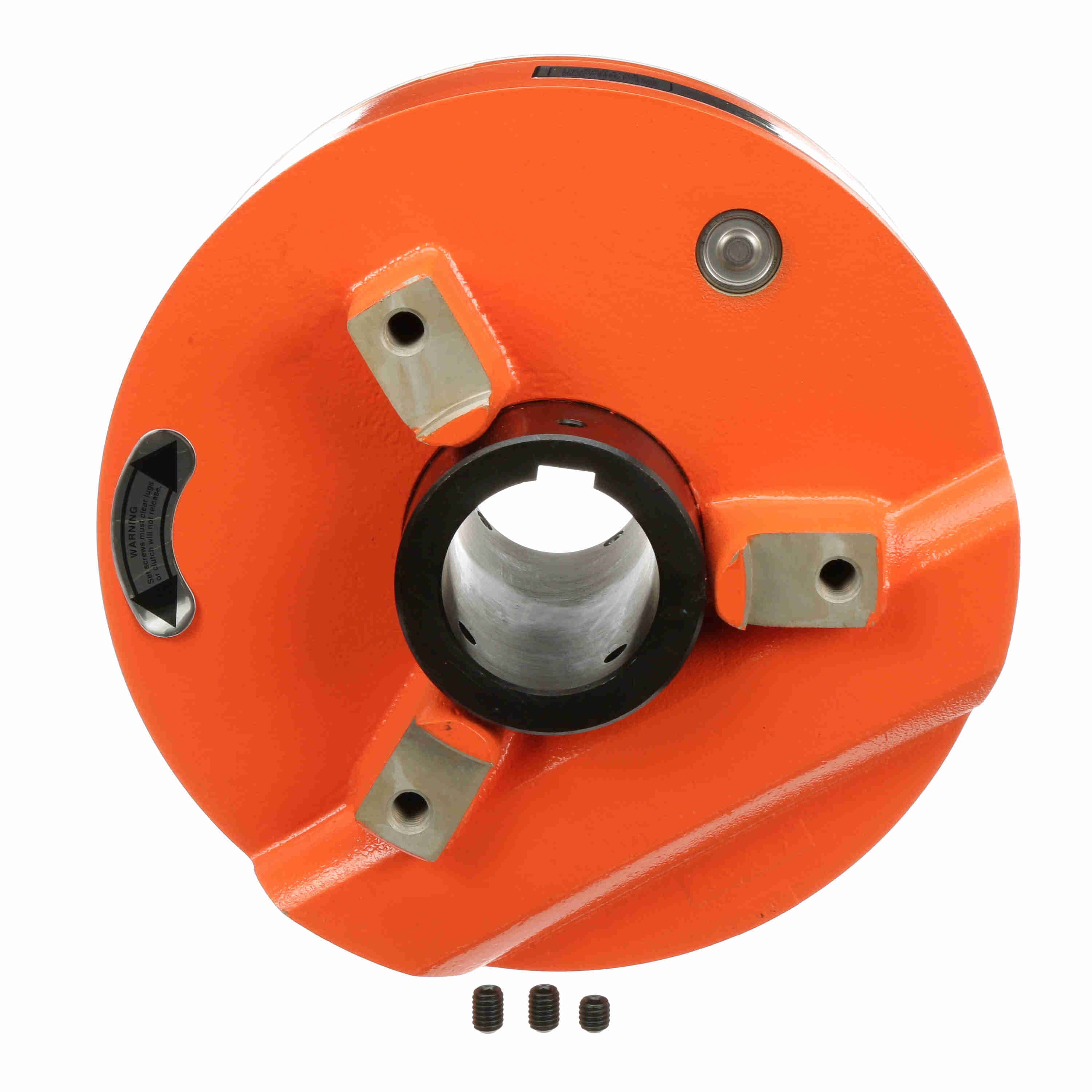

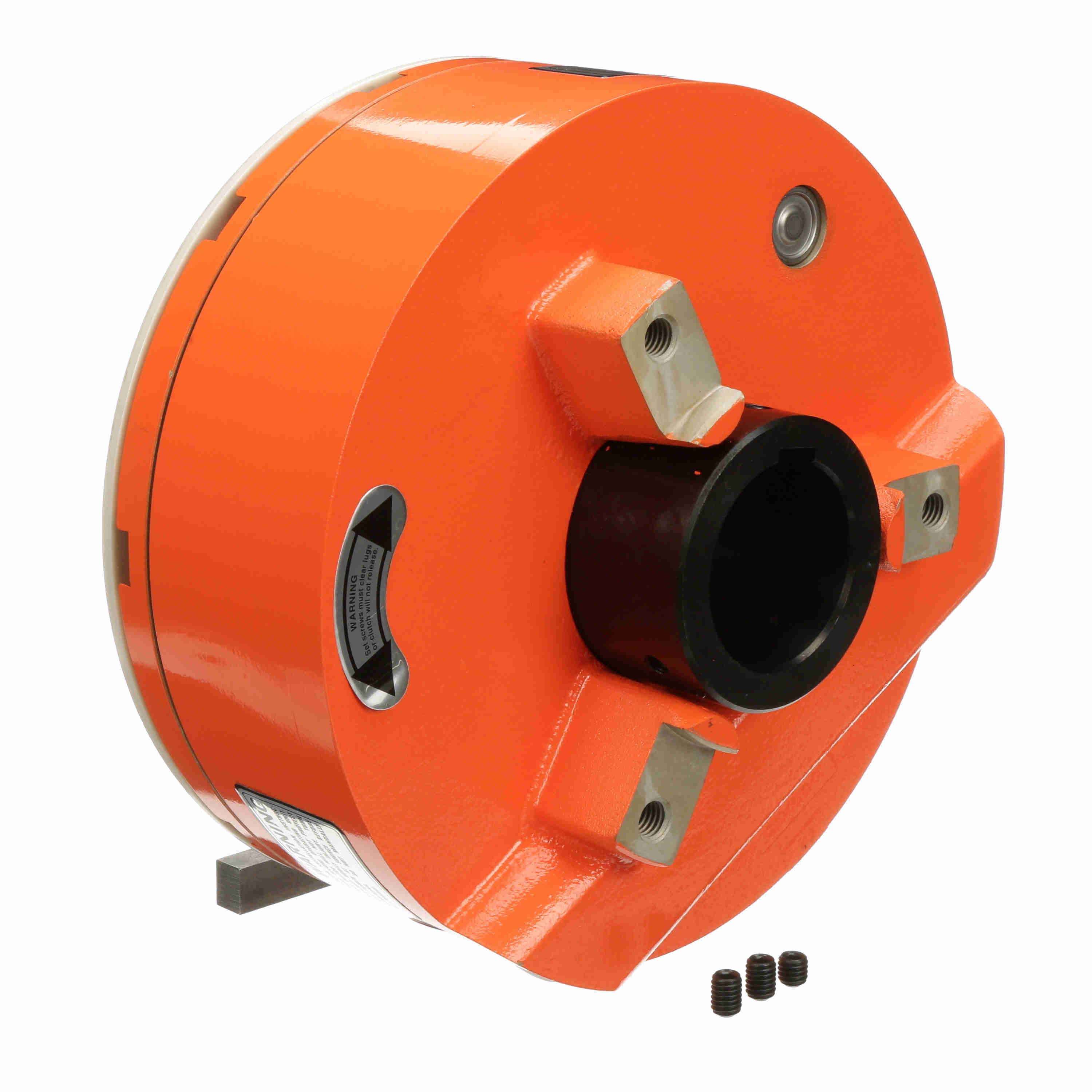

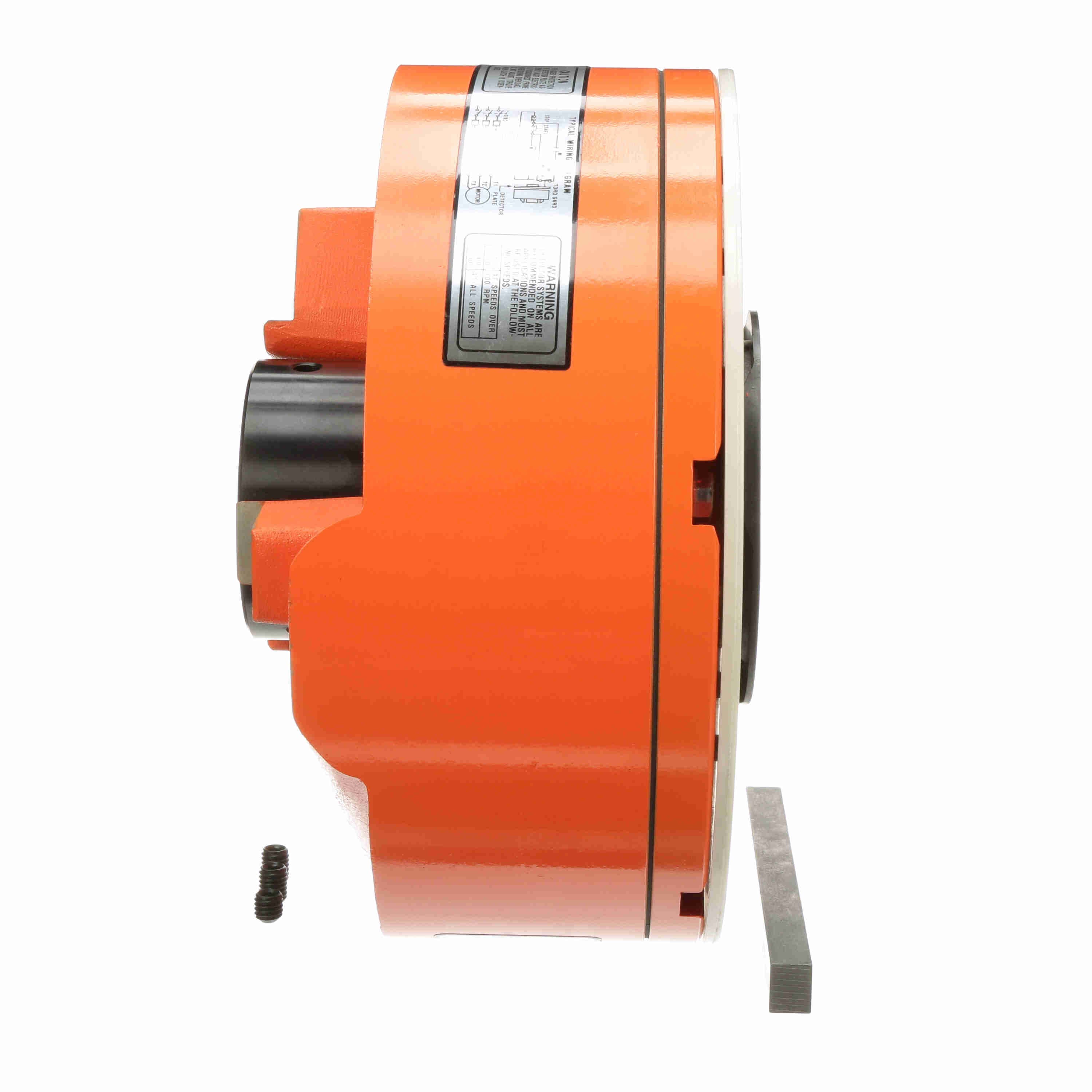

TORQ/GARD-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1295179 |
| Product Name | TGC400 |
| Brand | Browning |
| Weight | 39.27 lb |
| Package Length | 13.4 in |
| Package Width | 13.3 in |
| Package Height | 6.5 in |
| Sensor Plate | Yes |
| Unit Accuracy | 0.05 |
| Reset Type | Automatic |
| Type | Torq/Gard Overload Clutch |
| Max. HP | 22.2 |
| Torque Capacity [Max] (in-lb) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $5071.71 | — |
| 4,000 |
| Torque Capacity [Min] (in-lb) | 2,000 |
| Max RPM | 350 |
| Hub Keyseat | 5/8 x 3/16 |
| Backlash | Small |
| Product Type | Torque Overload Devices |
| Bore (Min) (in) | 1.25 in |
| Torque Capacity [Min] (lb-ft) | 166.666666666667 |
| Bore (Max) (in) | 2.4375 in |
| Recovery Style | Jog |
| Torque Capacity [Max] (lb-ft) | 333.333333333333 |
| HTC | 8483.60.4040 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-106176 |
| Part NumberiManufacturer catalog number | 1295179 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289398935 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
