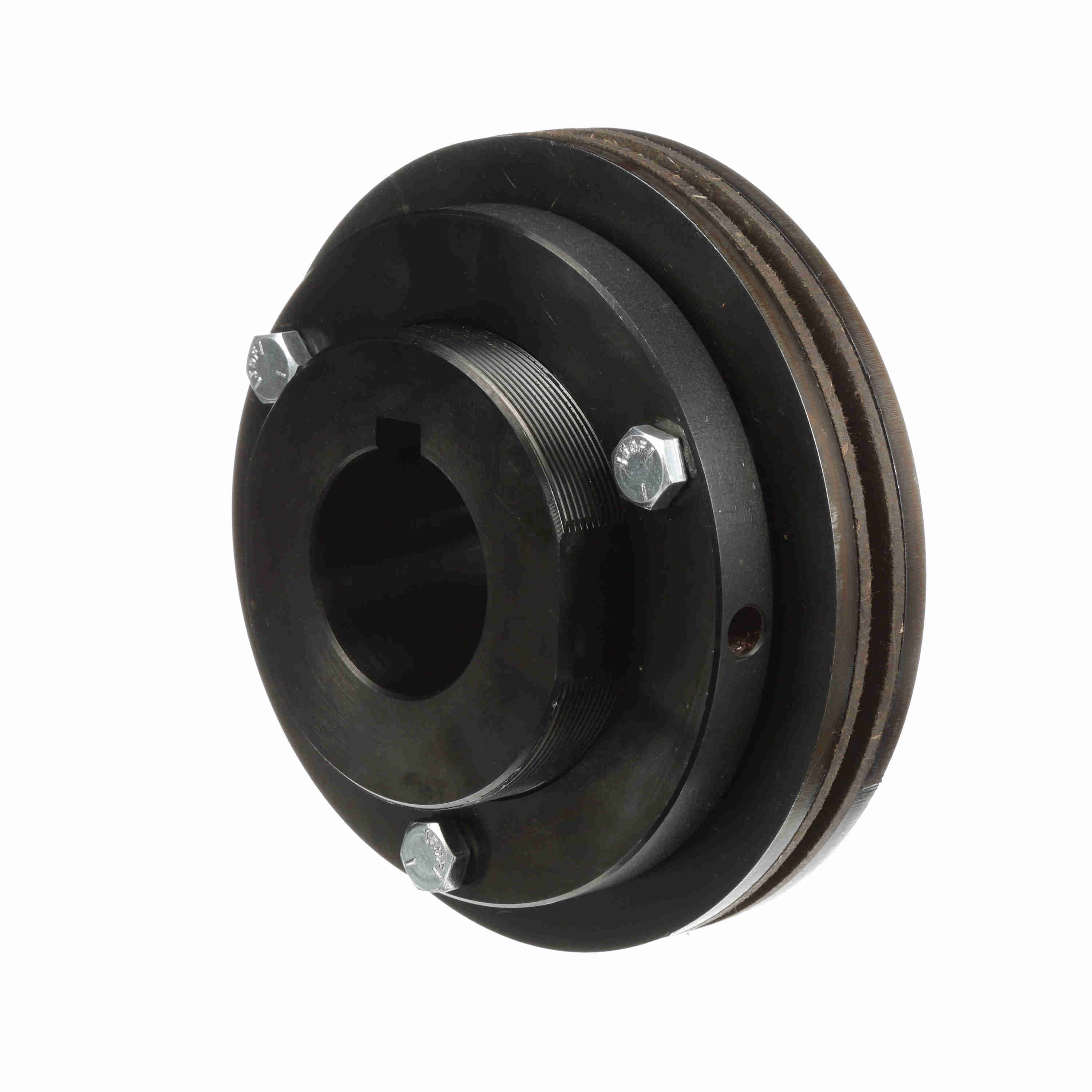

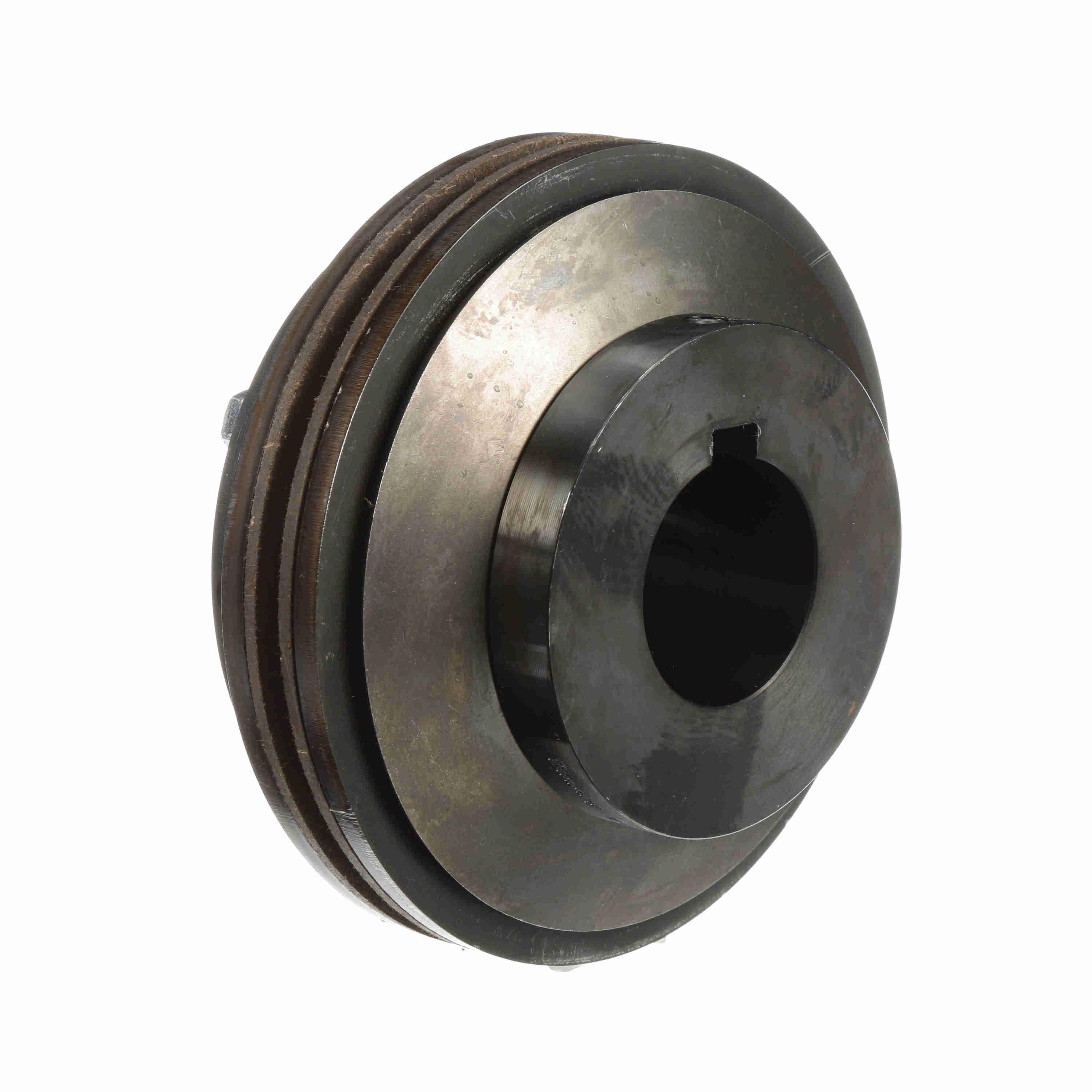

TORQUE LIMITERS-BROWNING
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1296615 |
| Product Name | T65LX 1 15/16 |
| Brand | Browning |
| Weight | 15.255 lb |
| Package Length | 7.1 in |
| Package Width | 7.2 in |
| Package Height | 4.3 in |
| Reset Type | Automatic |
| Unit Accuracy | 0.25 |
| Series / Model | T65L |
| F (2 Spring) | 1.5 |
| Torque [Max] (in-Ibs) (2 Spring) | 8,800 |
| Total Length (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $1129.80 | — |
| 10+ | $874.41 | 23% off |
| 3.625 in |
| Detection Method | Friction Pad |
| Bore Size (mm) | 49.2125 mm |
| Sprocket | T65L |
| Outside Diameter (mm) | 165.1 mm |
| F (1 Spring) | 1.375 |
| Bore Size (in) | 1.9375 in |
| Sensor Plate | No |
| Bore Shape | Straight Bore |
| Recovery Style | Automatic |
| Outside Diameter (in) | 6.5 in |
| Total Length (mm) | 92.075 mm |
| Backlash | Zero |
| Type | Torque Overload Devices |
| Disconnect Method | Friction Pad |
| Torque [Max] (in-Ibs) (1 Spring) | 4,800 |
| Max RPM | 1,000 |
| Torque [Max] (N-m) | 542.4 |
| Product Type | Torque Limiter |
| Bore (Max) (in) | 1.9375 in |
| Torque Capacity [Max] (in-lb) | 4,800 |
| Bore (Min) (in) | 1.9375 in |
| Torque Capacity [Min] (lb-ft) | 0 |
| Torque Capacity [Max] (lb-ft) | 733.333333333333 |
| Bore Type | Finished w/ Keyway |
| Minimum Sprocket Teeth | #60 (32 Teeth);#80 (24 Teeth) |
| HTC | 8483.60.8000 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-106257 |
| Part NumberiManufacturer catalog number | 1296615 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289141821 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
