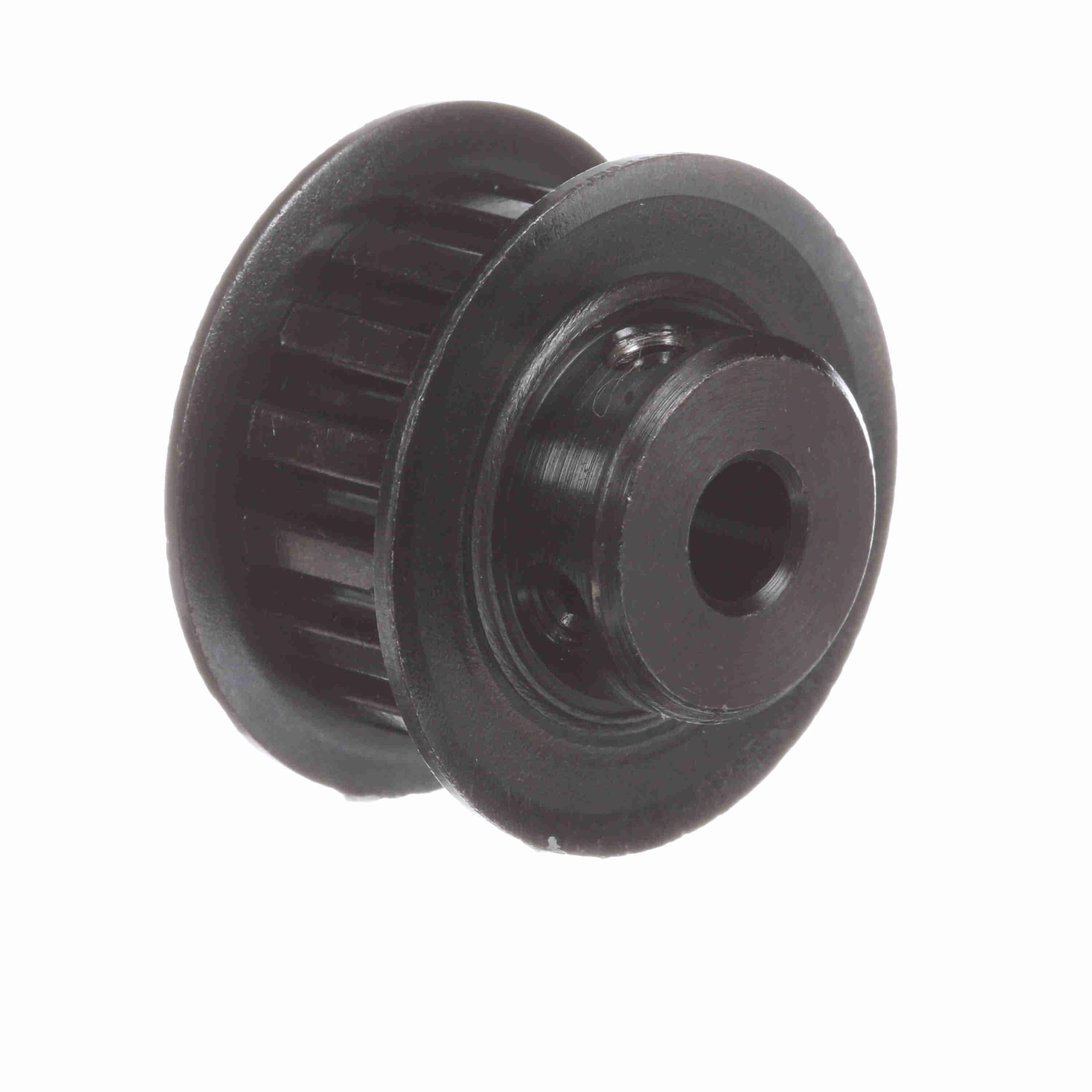

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1430750 |
| Product Name | 16XLB037S |
| Brand | Browning |
| Material | Steel |
| Weight | 0.16 lb |
| Package Length | 2.56 in |
| Package Width | 2.56 in |
| Package Height | 1.38 in |
| Product Type | Gearbelt Pulley |
| Number of teeth | 16 |
| Width (mm) | 9.525 mm |
| Bore Range | 1/4 to 3/8 |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $119.36 | — |
| 5 – 9 | $110.71 | 7% off |
| 10+ | $105.99 | 11% off |
| Rough Bore |
| Belt Section | XL |
| Outside Diameter (in) | 0.999 in |
| Flange (in) | 1.2500 in |
| Outside Diameter (mm) | 25.3746 mm |
| Width (in) | 0.375 in |
| Pitch Diameter (in) | 1.019 in |
| Face Width | 0.5625 |
| Length Through Bore | 0.8125 |
| Hub Projection | 0.25 |
| Pulley Construction | Solid |
| With Flanges | With Flanges |
| Overall Length (in) | 0.8125 in |
| Number of Hubs | 1 |
| Bore Diameter (in) | 0.25 in |
| Hub Diameter (in) | 0.6875 in |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-106620 |
| Part NumberiManufacturer catalog number | 1430750 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289753864 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
