GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1430800 |

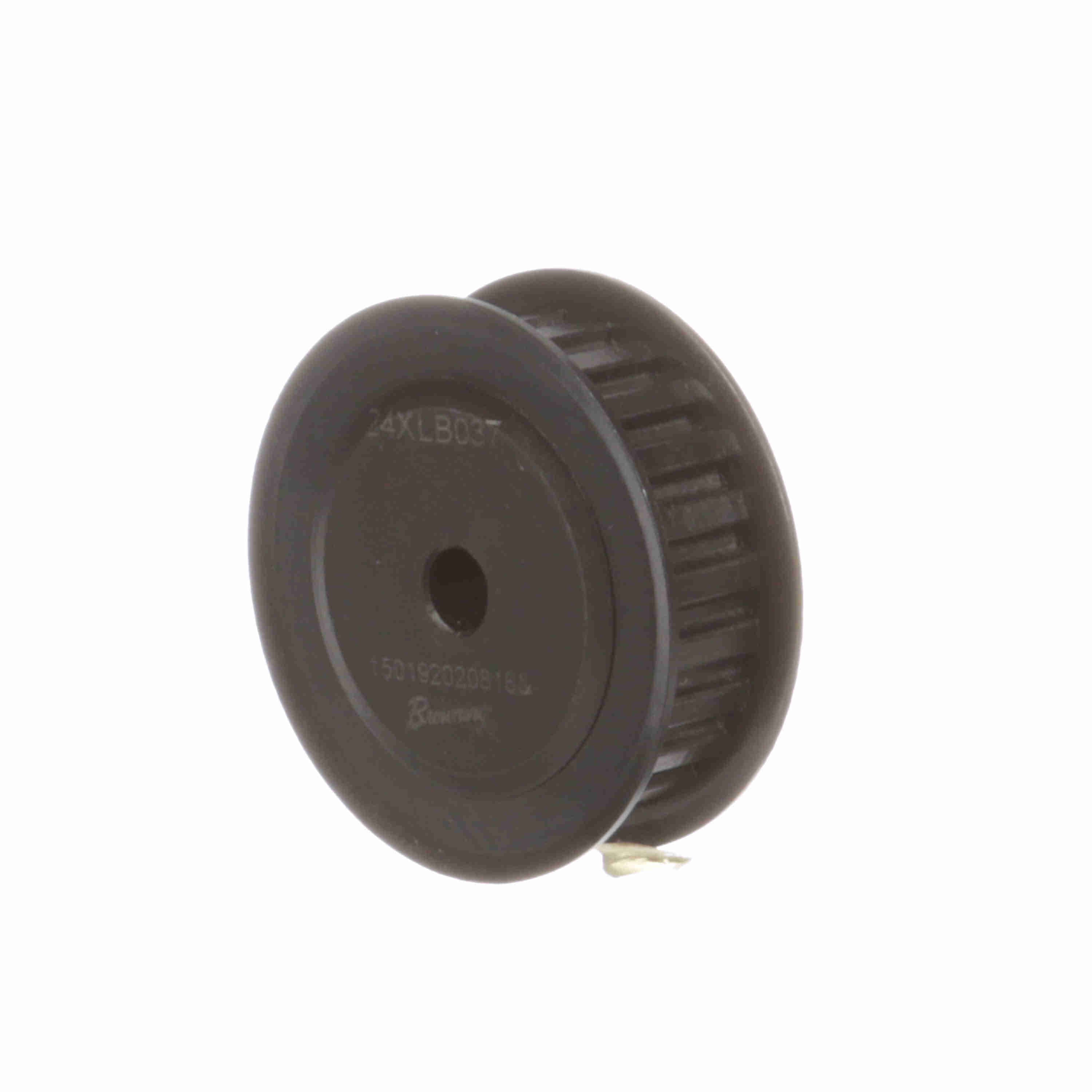

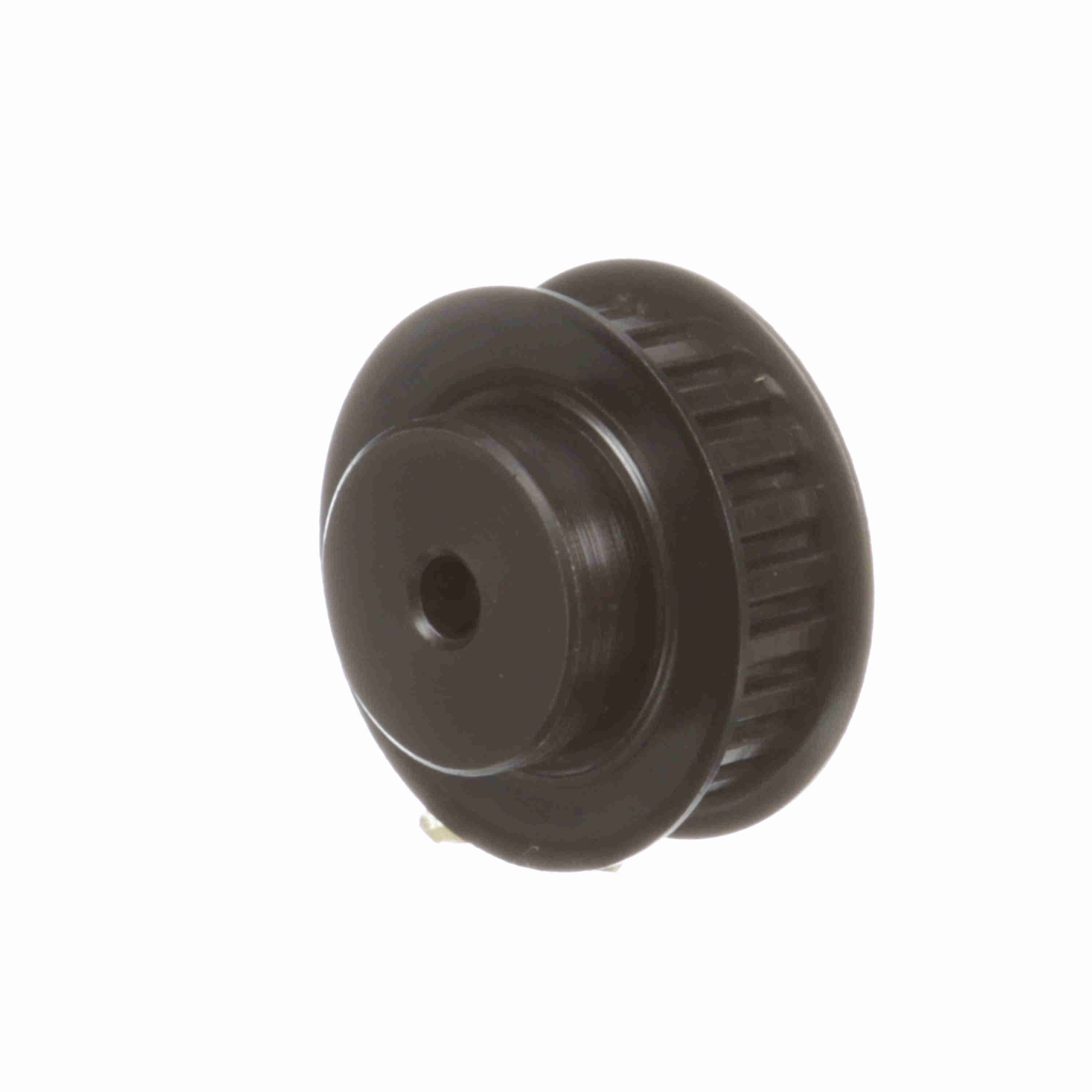

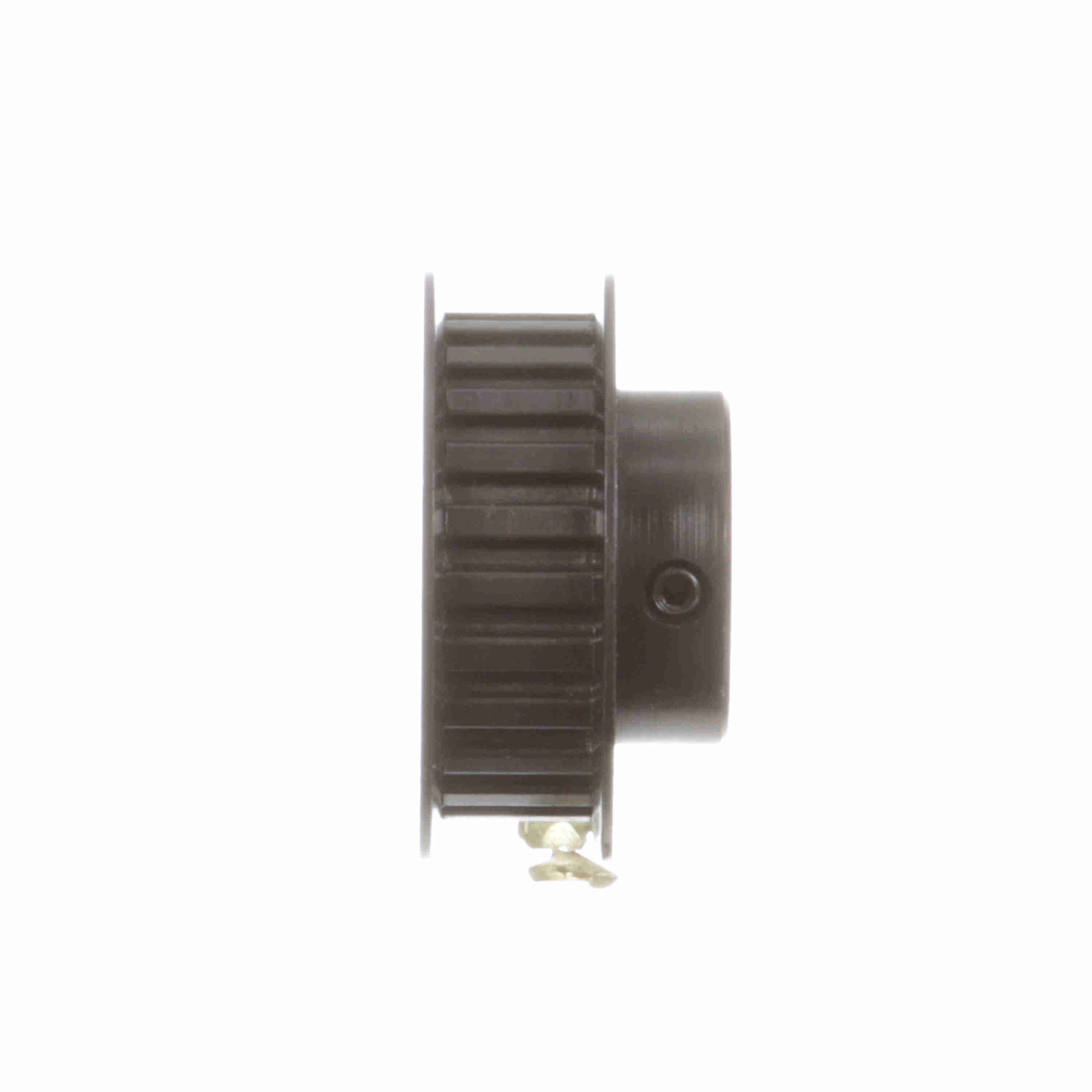

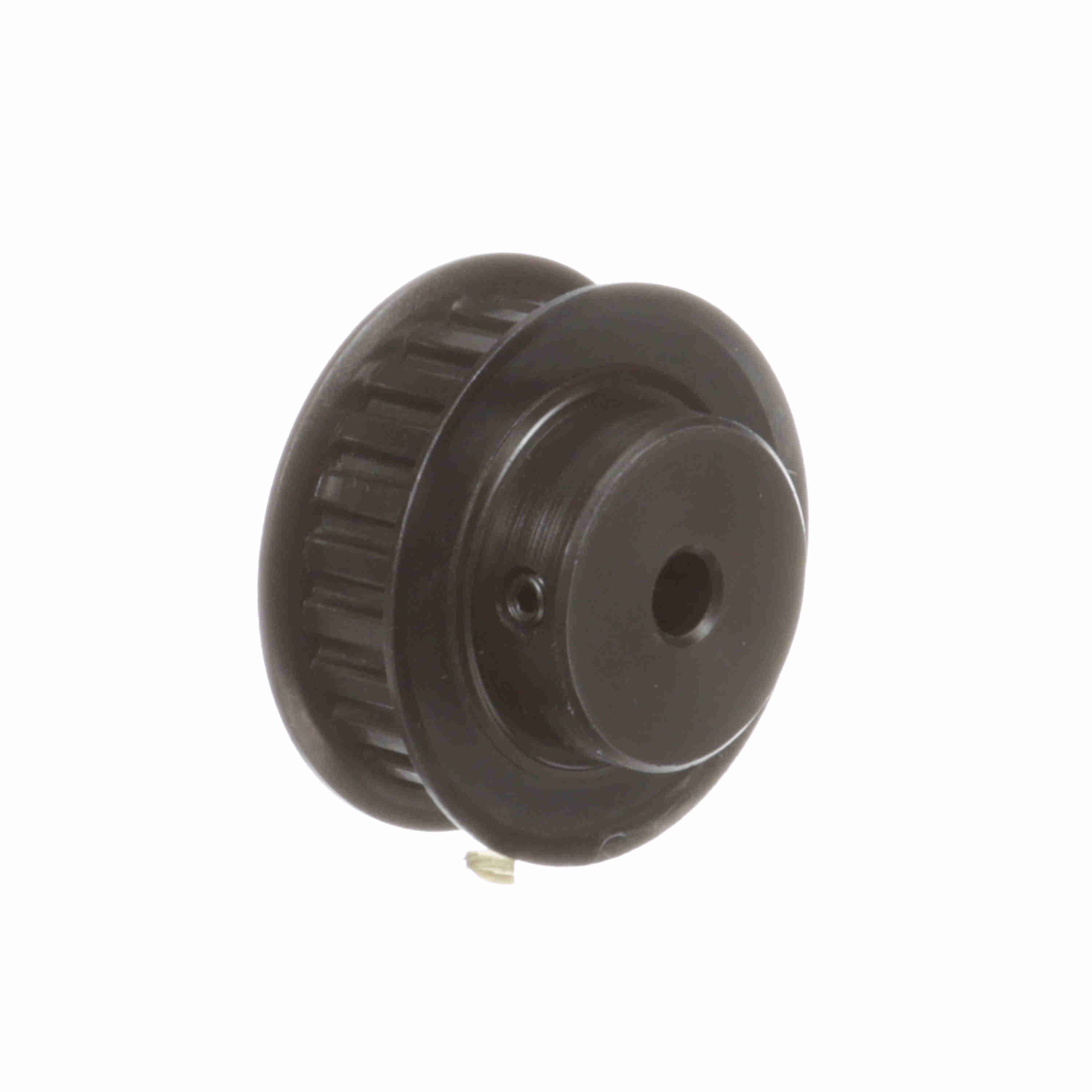

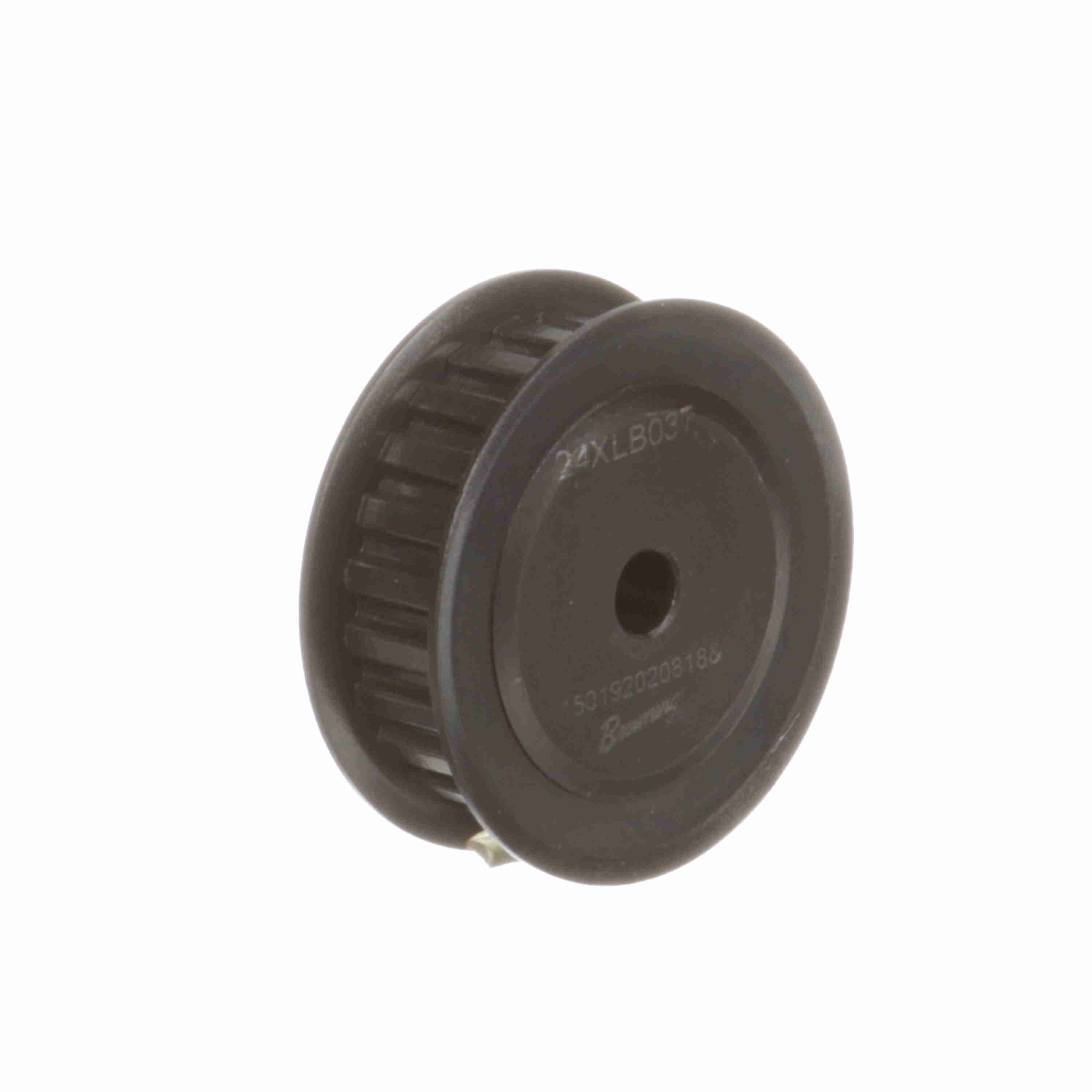

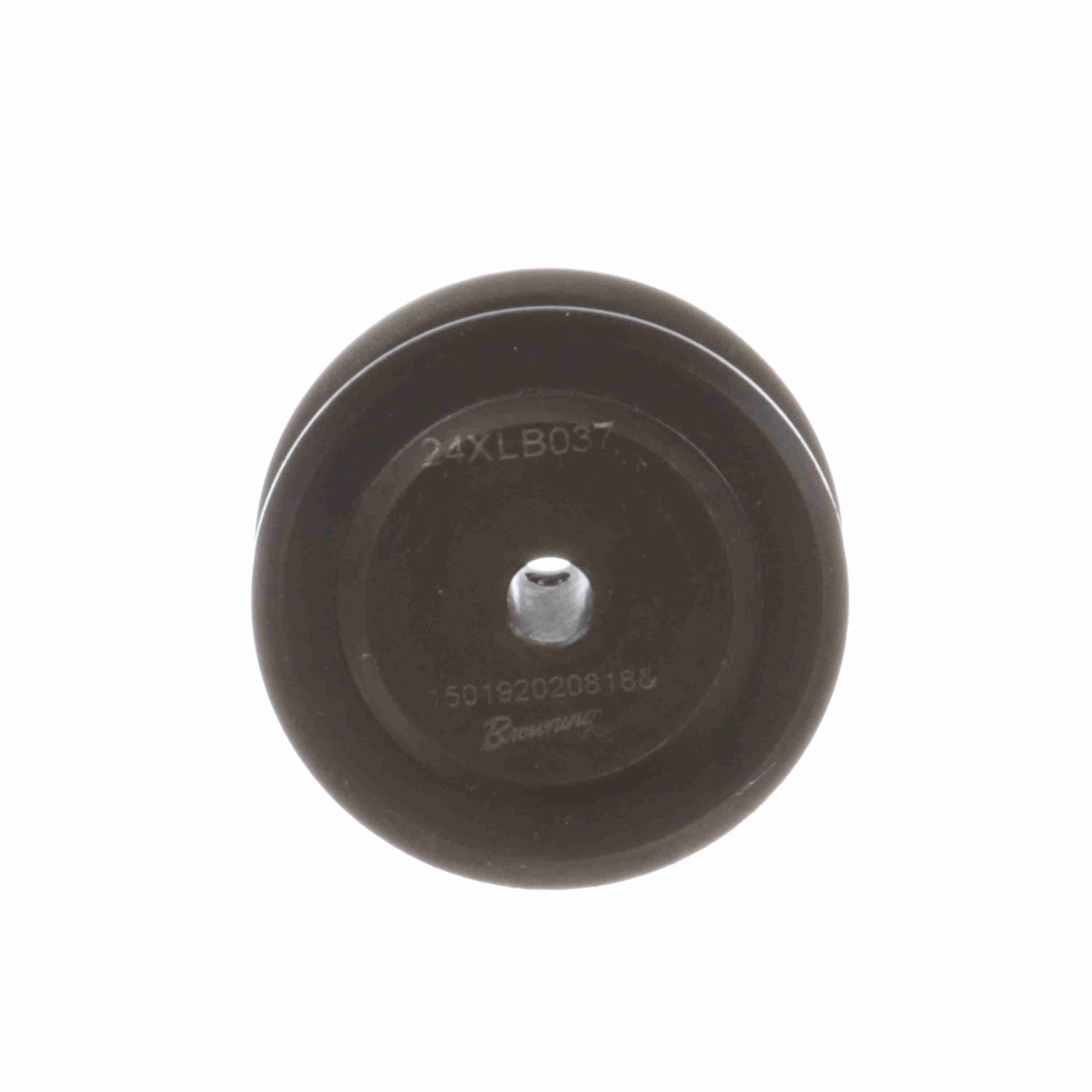

| Product Name | 24XLB037S |
| Brand | Browning |
| Material | Steel |
| Weight | 0.36 lb |
| Package Length | 2.56 in |
| Package Width | 2.56 in |
| Package Height | 1.38 in |
| Width (mm) | 9.525 mm |
| Number of teeth | 24 |
| Bore Range | 1/4 to 11/16 |
| Model Name | GBPulley_Master1 |
| Product Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $132.65 | — |
| 5 – 9 | $123.04 | 7% off |
| 10+ | $117.79 | 11% off |
| Gearbelt Pulley |
| Bore Type | Rough Bore |
| Belt Section | XL |
| Flange (in) | 1.7500 in |
| Pitch Diameter (in) | 1.528 in |
| Outside Diameter (in) | 1.508 in |
| Width (in) | 0.375 in |
| Outside Diameter (mm) | 38.3032 mm |
| Face Width | 0.5625 |
| Length Through Bore | 0.906 |
| Pulley Construction | Solid |
| Hub Diameter (in) | 1.0625 in |
| Number of Hubs | 1 |
| Hub Projection | 0.343 |
| Bore Diameter (in) | 0.25 in |
| With Flanges | With Flanges |
| Overall Length (in) | 0.906 in |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-106622 |
| Part NumberiManufacturer catalog number | 1430800 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289753918 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
